1 MODEL - 174 hp Cummins 6 Cyl.

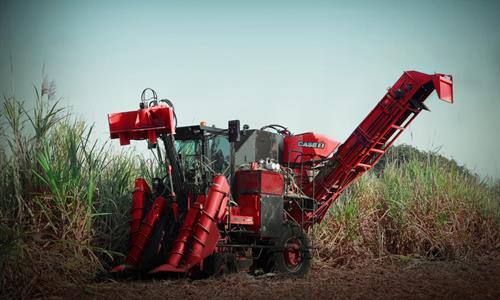

Austoft 4000 Sugarcane Harvesters

The Case IH Austoft 4000 sugarcane harvester represents once again the pioneering spirit of Case IH. Working in row spacings starting from 4 feet (120cm) this harvester is narrow enough to harvest one row without compacting the root zone of the adjacent cane row.

Innovation without limits

Better cutting quality, improved productivity
and longer stool life in the sugarcane field

Better cutting quality, improved productivity <br>and longer stool life in the sugarcane field
The Austoft 4000 is compact, light, has excellent manoeuvrability and an excellent base cut resulting in reduced cane loss and increased productivity in subsequent ratoon crops. The lightweight, compact machine enables harvest in partially wet fields thereby increasing its ability to harvest under varied conditions.

Find out more about the Austoft 4000

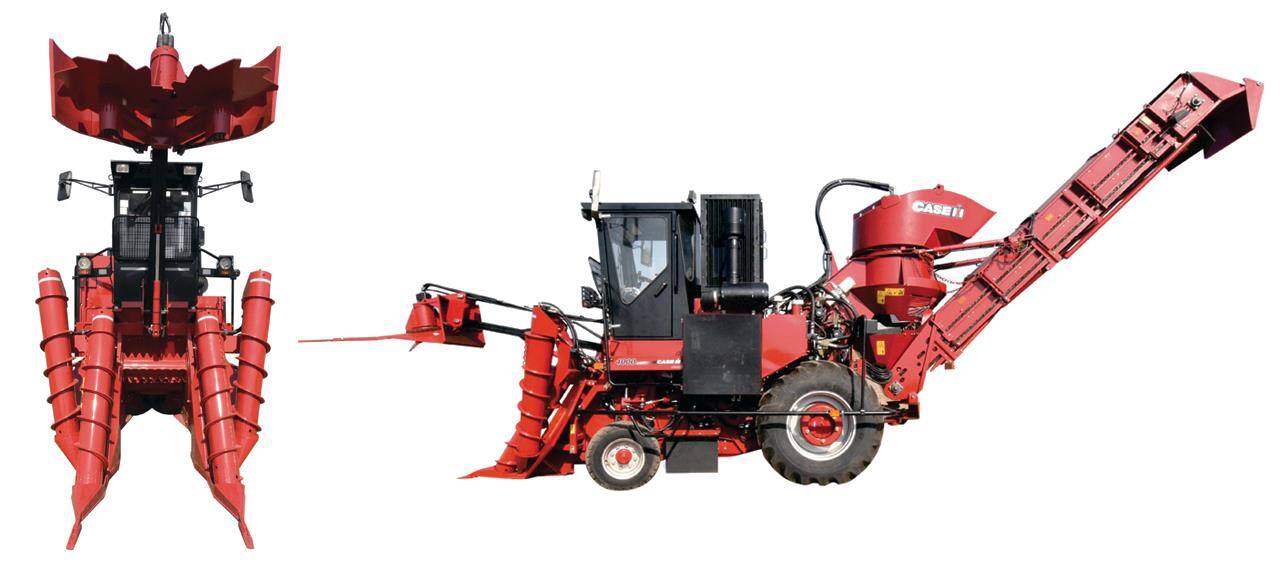

Click on the hotspots to learn about the features of the Austoft 4000 Series sugarcane harvester

Topper

Cuts the tops and throws them away on the ground, on left or right hand side.

Crop Dividers

Two pairs of crop dividers enable separation of the sugarcane row that is being harvested from the adjacent row and lift the lodged cane stalks to facilitate the feeding operation.

Feed rollers

Transports and horizontally feeds the cane stalks to the chopper drums.

Knockdown Roller

Inclines the cane stalks to be cut, facilitating the base cutting operation and the initial feeding of the machine.

Cleaning system: Extractor

Equipped with Anti-Vortex fan, the extractor cleans the billets through suction of the extraneous matter from the billet cane charge, chopped and cascaded by chopping drums towards extractor bin through a strong upward air draft created by the fan.

Feedroller (finned)

Aligns the cane stalks and helps the feeding of the cane stalks immediately after they are severed by the base cutter.

Chopping system: Chopper Drums

A pair of chopper drums consisting of 3 blades each cuts the sugarcane into billets and throws the billets into the elevator bowl. The chopper provides clean cut billets through its differential speed cutting mechanism.

Basecutter

Ensures flush to ground level cane harvesting through appropriately tilted base cutter discs and also enables feeding of the harvested cane stalks to the butt-lift roller.

Unloading system: Elevator Table

Pivots the elevator to the machine and supports sideways and up-down movement.

Butt Lifter Roller

Lifts the sugarcane stalks cut by the base cutter and guides them into the machine feeder train.

Unloading system: Elevator Bowl

Receives the sugarcane billets coming out of the chopper and feeds the elevator chain.

Unloading system: Elevator

Transports the billets from the elevator bowl to the Infield Transporter. Its perforated elevator floor aids the removal of mineral impurities.

Unloading system: Bin Flap

Directs the cane billets from elevator into the Infield Transporter and improves the distribution, thereby increasing the loading density.

Find out more about the advanced Austoft 4000 features

  • SugarCaneHarvesterAustoft4000-NewFeatures6

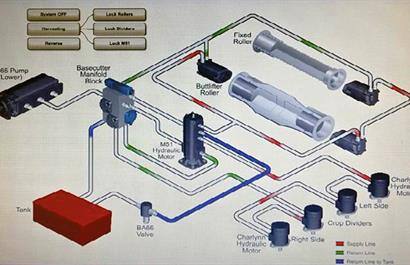

    Uniflow hydraulic system

    Improved and uniform power to harvesting and cleaning system
  • SugarCaneHarvesterAustoft4000-NewFeatures7

    Heavy duty motor mounting chassis

    Improved reliability and durability of chassis
  • SugarCaneHarvesterAustoft4000-NewFeatures8

    Turbo air drag cleaning system

    Better extraction of trash resulting in cleaner cane billets
  • SugarCaneHarvesterAustoft4000-NewFeatures9

    Relocated dip stick

    Ease of access and frequent opening of bird cage avoided
  • SugarCaneHarvesterAustoft4000-NewFeatures5

    Larger tyres

    Improved stability and better life (16.9 x 28 tyres)
  • SugarCaneHarvesterAustoft4000-NewFeatures2

    Improved bird cage sealing

    Engine safeguarded from trash entry, improved productivity and safety
  • SugarCaneHarvesterAustoft4000-NewFeatures4

    Elevator rubber flap

    Avoids the billets from falling onto the ground during Infielder filling
  • SugarCaneHarvesterAustoft4000-NewFeatures10

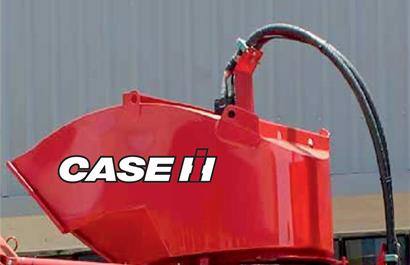

    Heavy duty extractor hood

    Improved reliability of cane trash extraction system
  • SugarCaneHarvesterAustoft4000-NewFeatures1

    Larger radiator

    Increased cooling efficiency
  • SugarCaneHarvesterAustoft4000-NewFeatures3

    Cabin windshield guard

    Effective protection of cabin windshield from cane hits
  • SugarCaneHarvesterAustoft4000-NewFeatures11

    Hermetically sealed engine compartment

    No trash entry, improved engine life, less engine heating
  • SugarCaneHarvesterAustoft4000-NewFeatures12

    Disc-O-Gather Topper*

    Ensures excellent removal of tops resulting in less trash going into machine and reduced fuel consumption.
    *Optional variant: the standard machine is equipped with standard topper, while the Special Edition machine comes with Disc-O-Gather Topper

Premium feature

Sky WatchTM (standard feature)

Sky Watch<sup>TM</sup> (standard feature)
Case IH brings to you the revolutionary Sky Watch telematics, which enhances performance of the sugarcane harvester through improved control and efficient monitoring of operations. As the name suggests, this feature enables observation of every single detail of the harvester's performance remotely.

  • Track and trace: machine live location tracking
  • Performance enhancement: machine usage report
  • Proactive alerts: minimum downtime, timely service reminders
  • Theft and safety: fuel pilferage alert, machine unauthorised access alert
  • Subscription offering: one (1) year from date of activation/purchase of
    Case IH Austoft 4000 sugarcane harvester


New premium feature

Antivortex FanTM (optional feature)

Antivortex Fan<sup>TM</sup> (optional feature)
The Austoft 4000 is equipped with a four-blade Antivortex fan – globally the most efficient trash removal technology from the harvested cane. It not only reduces the amount of extraneous matter in the billet cane significantly more than other methods, but also the Antivortex system substantially reduces power consumption in the harvester’s cleaning system.

  • Excellent cleaning, minimal trash
  • Less vibration of the extractor hood for improved durability
  • More extractor blade life
  • Reduced load – lower operating RPM of the fan @ 1400 RPM
  • Fuel saving
  • Improves loading capacity of transport, thus lowering operating costs


New premium feature

Smart Reversible Fan (optional feature)

Smart Reversible Fan (optional feature)
The smart reversible engine cooling fan reverses the air flow periodically and cleans out the radiator, pump box door and bird cage automatically. It ensures improved air flow in the engine box all the times, thus reducing cleaning time and ensuring continuous running even under the most rigorous conditions.

  • Automatic function
  • Improves air flow in the engine box
  • Better cooling; uninterrupted operation
  • No need for frequent manual cleaning of engine box, pump box door and bird cage


New premium feature

Smart Eye Camera (optional feature)

Smart Eye Camera (optional feature)
The rear fitted camera ensures safety during reversing as it averts accidents. This feature also ensures better harvest quality by avoiding losses of billets during unloading.
  • Clear rear view and fast screen switching system
  • Improved safety
  • Reduced losses
  • Improved operator visibility: less risk of the cane harvester’s elevator striking the infielder or overhead wires


Watch the new Austoft 4000 Series sugar cane harvester in action

Watch the new Austoft 4000 Series sugar cane harvester in action

Flexibility, reliability and comfort

  • SugarCaneHarvesterAustoft4000-Flexibility1

    Excellent cost-benefit

    The Austoft 4000 DoublePlus+ is compact in size, compared with the conventional models of Case IH, and is easy to move between cane fields. The Austoft 4000 DoublePlus+ was designed with the same functional concept as the Austoft 8000 Series harvesters. Because of this, many of its parts are interchangeable with other models of Case IH sugarcane harvesters. This characteristic significantly increases the machine’s cost-benefit ratio thereby providing value for money to the entrepreneurs
  • SugarCaneHarvesterAustoft4000-Flexibility2

    Easy and fast to service

    The Austoft 4000 DoublePlus+ was designed for easy and simple maintenance. The engine, hydraulic system, and critical components are easily accessible, thereby streamlining the machine’s preventive maintenance, resulting in increasing the machine’s availability for harvesting.
  • SugarCaneHarvesterAustoft4000-Flexibility3

    Comfort for the operator

    For greater productivity, the Austoft 4000 has a well-designed and comfortable, air conditioned cabin. The ergonomically positioned controls, deluxe seat and excellent overall field visibility provide optimum comfort and ease of operations to ensure long uninterrupted operations.

Specifications

Convert to Excel Print Chart

Hide Labels


na = Not Applicable, np = Not Published

UNCONTROLLED COPY
