Small square balers series

Five new models replace the previous SBX models

Newly designed plunger and feeder shielding improves service access
A flip-up front gearbox shield provides easier service to the main drive chain and gearbox
Easier access to the pickup drive belt
Redesigned “Power Pivot” shielding uses hydraulic hose slots for convenience

- Wide 1,905-mm pickup
- Huge 2,052-sq.-cm feed opening
- Hydraulic bale density control
- A high-capacity rotary feeding system
- Comes standard with an eight-twine bale box
  - Larger capacity twine storage
  - Allows for longer baling duration without rethreading
- Newly designed with increased tongue-channel thickness and reinforced plates to the inner tongue wall
- A wider clevis hitch to accommodate larger tractor drawbars
- A large wagon hitch-bolt hole for easier hookup to hay wagons
- A new Class VI heavy-duty driveline for improved durability
- Twine or wire versions
- Comes standard with an eight-ball twine box
- High-capacity 1,905-mm pickup or 2,032-mm with flare
- Heavy-duty rotary feeding system
- Available with spring or hydraulic bale tension control
- Newly designed with increased tongue-channel thickness and reinforced plates to the inner tongue wall
- Replaceable feeder floor
- Wider clevis hitch to accommodate larger tractor drawbars
- Large wagon hitch-bolt hole for easier hookup to hay wagons
- New Class VI heavy-duty driveline for improved durability
- Rugged and durable
- Provides years of dependable service
- Uses six tines to move crop smoothly
- 1,651-mm pickup or 1,778-mm with flare
- Dependable high-throughput rotary feeding system
- Uses a packer fork with two paired rotating fingers
- Provides years of dependable service
- Large wagon hitch-bolt hole for easier hookup to hay wagons
- New Class VI heavy-duty driveline for improved durability
- Hydraulic density system (SB531, SB541 standard on SB551)
- Hydraulic tongue swing
- Hydraulic pickup lift
- Halogen work light kit for night baling
- Road light kit with brake/turn signals
- Quarter-turn bale chute
- Triple-purpose chute
- Bale chute extension with wagon hitch
- Twine tie baler manual oiler

Pickups

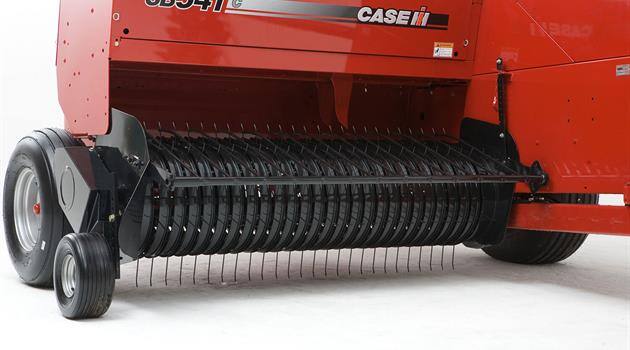

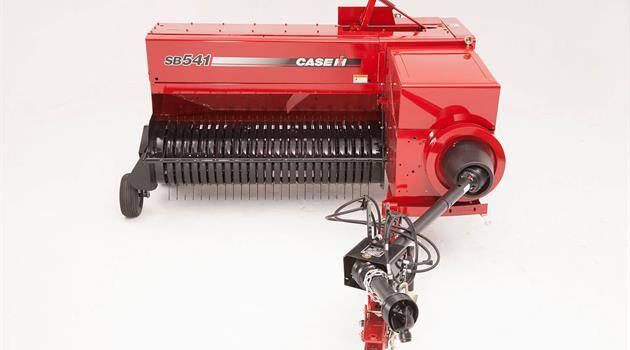

Plenty of sturdy, closely spaced, curved finger tines gently lift the crop while keeping leaves intact. The rugged tine bars run on sealed ball bearings for long life and trouble-free operation. Standard pickup gauge wheels adjust to five positions which help guide your pickup through the contours of the field allowing you to process every bit of the windrow. Select the manual latch or optional hydraulic pickup lift to raise the pickup for transport.

Feeding system

Provides for a uniform, well-shaped bale

Huge 1,826-sq-cm feed opening allows SB balers to swallow large, uneven windrows. The dependable Case IH feeding system then takes over, and provides a smooth flow of crop into the bale chamber for a uniform, well-shaped bale.

- High-throughput rotary feeding system delivers high capacity in any crop
- Heavy-duty, double-rotating tines overlap to feed crop smoothly and continuously
- Adjustable double-packer fork folds hay into the bale chamber
- No-plug feeding system effortlessly moves crop from the pickup area to the bale chamber with minimum shatter loss
- Six feeder tines gently move the crop into the bale chamber, saving high-protein leaves
- Chain-driven system for durability and easy servicing

Easy bale density control

All SB Series balers allow for easy bale density control by adjusting the tension applied to the bale chamber. For manual density control, tension springs are an economical choice. The hydraulic density control provides "set-it-and-forget-it" convenience and ensures consistent bale weight and density. Hydraulic density control is standard on the SB551 and optional on the SB531 and SB541.

Ties/ twists

Case IH SB Bales hold up to handling — From the rack to the elevator and from the barn to the bunk:

SB521 — loads four balls of twine
SB531 — loads six balls of twine
SB541 and SB551 — load eight balls of twine each
SB541 wire-tie version features four-coil wire storage.

Bale thrower

Available with the SB521, SB531 and SB541 models

Smooth, reliable hydraulic drive throws the bales
Handles bales up to 965 mm long and up to 32 kg
Easy operation from your tractor seat allows you to:
- Move the Case IH bale thrower to the left or right to fill the corners of the wagon
- Adjust the belt speed to load the front or the back of the wagon
The simple design of the BTX11 allows for easy installation, adjustment and service
