Home | Products | Hay & Forage |
Pull-Type Forage Harvester
  • Rotary Disc Mowers
  • Rotary Disc Mowers Conditioners
  • Windrowers
  • Pull-Type Forage Harvester
  • Wheel Rakes
  • RB344 Series Fixed Chamber
  • RB544 Series Fixed Chamber
  • Round Baler 455/465
  • SB500 Series
  • LB4 Series

647.7 (mm)

Pull-Type Forage Harvester

The Case IH FHX300 pull-type forage harvester swiftly harvests crops. The 1,000-rpm driveline, heavy-duty components and wide crop heads harness big-tractor horsepower and turn it into high capacity harvesting performance.

Cutterhead

The FHX300 has a wide, 647.7-mm throat opening to swallow even the heaviest crops. The feedrolls move material smoothly and evenly into the cutterhead. The rugged, 533-mm diameter cutterhead features 12 hardened-alloy knives span the full width of the cutter head to evenly chop and efficiently, converting your crop into high-quality feed.
Pull-TypeForageHarvester-Efficiency
  • Pull-TypeForageHarvester-Efficiency-Blower

    Handles all types of crops

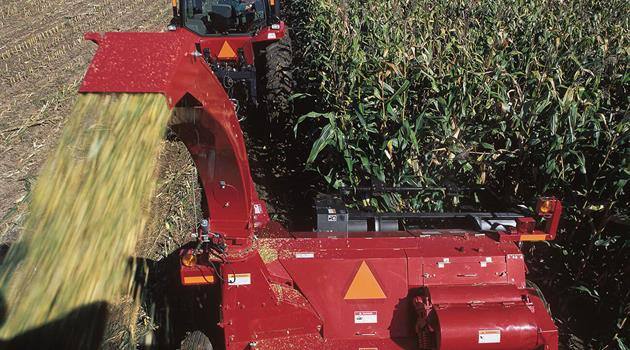

    A powerful, 1,000-rpm, blower moves crops quickly to fill wagons and trucks quickly; and works efficiently regardless of whether you’re working in wet, heavy hay or an easy-to-blow crop like corn.

  • Pull-TypeForageHarvester-Efficiency-Electronic Remote

    Rotate the spout 90 degrees
    The electronic remote control allows you to rotate the spout a full 90 degrees; this permits the spout to be easily repositioned to fill towed forage wagons or trucks to the left. From your tractor seat, you can control the FHX300 feedroll direction, either forward or reverse. Additionally the standard hydraulic tongue swings from road to field positions making transitions easier.

Easy sharpening/ adjustment

The convenient built-in knife sharpener efficiently sharpens knives making it easy to keep FHX300 performing at its peak with no extra tools needed. The Reversible gearbox and the shearbar adjustment are easily accessible to maintain optimum cutterhead performance. Feedrolls easily lift up for cleaning and inspection of shearbar and smooth roll scraper.
Pull-TypeForageHarvester-Chassis
  • Pull-TypeForageHarvester-Chassis-Length-of-cut

    Five optiomal recutter screens The FHX300 allows for precise cut-length adjustment. This length is controlled by changing the feedroll speed as well as adding or removing knives. By using one of five optional recutter screens you can reach  a cut length from 5 mm to 11.1 mm with all 12 knives; or achieve a cut length as long as 33.3mm when only four knives selected.

  • Pull-TypeForageHarvester-Chassis-Metal Detector

    Stop feedrolls before metal can damage the Cutterhead

    HOW IT WORKS: The detector stops feedrolls within a fraction of a second — before metal can damage the cutterhead. The sensor and electromagnet in the front lower feedroll emits a constant magnetic field between the two stainless-steel lower feedrolls. A light and horn alert you when metal is detected, and a signal is sent to the solenoid to stop the feedrolls. The power is then shut off to an electric clutch on the reversing gearbox that shifts to neutral and stops the power to the feedroll drive. The feedroll control switch allows you to back the material out and after metal is removed, the detector resets automatically.

Optional crop processor

Save time and cost by Chopping and Processing in one operation

The crop processor maximizes feed quality in corn silage, saving time and cost by chopping and processing in one operation. By removing the material baffle and the processor drive belt, you can chop haylage. Product coming from the cutterhead is propelled between two 203-mm diameter fluted rolls. The top roll turns 15 percent faster than the bottom roll, providing the scuffing action necessary to crack kernels and break cob pieces. This results in: better fermentation, more effective fiber in the ration, and feed that’s easier for livestock to digest.

Pull-TypeForageHarvester-Productivity
  • Pull-TypeForageHarvester-Productivity-Windrow Pickups

    HDX10P/HDX20P Windrow pickups Two models available
    Ground-hugging HDX10P/HDX20P (1.94 mm or 2.34 mm tine to tine) windrow pickups gather the entire crop. Heavy-duty gauge wheels help the pickup rise over swells and into dips to easily handle rough ground without gouging. The large open end pulls in wide windblown windrows. The retractable finger feed auger moves the crop smoothly while the closely spaced pickup tines flex to gather the entire windrow. The floating auger handles heavy crop conditions, and in case of overload the auger reverses with feedrolls to easily clear plugs.

  • Pull-TypeForageHarvester-Productivity-Corn Head

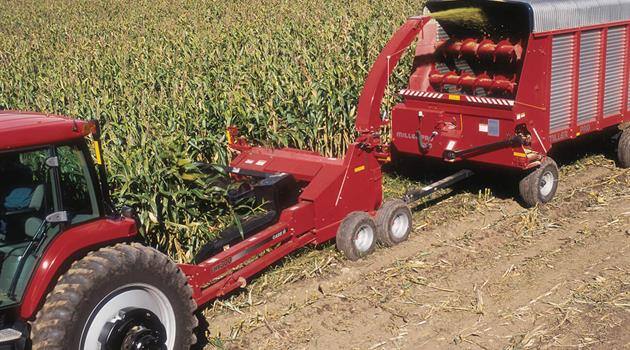

    HDX3R three-row corn head
    Adjustable Skid shoes and Spring-loaded discs

    • Points float over ground contours
    • Skid shoes are adjustable to eliminate bulldozing
    • Gathers cornstalks planted on 711- to 813-mm row spacing
    • Gathering chains reach forward to grasp cornstalks and feed smoothly into feedrolls
    • Cutting discs shear corn close to the ground
    • Discs are spring loaded to move out of the way when an obstacle is encountered
    • Right- and left-hand power dividers ensure heavy crops flow smoothly into the feedrolls.

Specifications

Convert to Excel Print Chart

Hide Labels


na = Not Applicable, np = Not Published

UNCONTROLLED COPY

Gallery

  • Pull-Type Forage Harvester
  • Pull-Type Forage Harvester
  • Pull-Type Forage Harvester
  • Pull-Type Forage Harvester
  • Pull-Type Forage Harvester
  • Pull-Type Forage Harvester
  • Pull-Type Forage Harvester
  • Pull-Type Forage Harvester
  • Pull-Type Forage Harvester

Next Steps

  • Product Availability

    Product availability and specifications may vary by market/region. Please speak to your local authorised Case IH dealer for more information.
