Compartments
2 - 4
Capacity
350 - 950 bu.
Ground Clearance
25 in.
Height (w/o handrails)
12' 10" - 15' 8"

The tank capacity you've been asking for

The seven new Precision Air 5 series carts boast tank capacities from 350 to 950 bushels and are available in tank configurations with two or three primary compartments plus a 25 or 35 bushel auxiliary tank option to meet your input needs. Combine that with seed sensor options that will keep you productive all day long.

Increased tank capacity
- The 5 Series' tanks provide up to 39% more product carrying capacity, increasing the amount of acres that can be seeded without stopping.
- The polyurethane Roto-Molded tanks are shaped to tuck close together for maximum capacity, corrosion resistance, ideal material flow and weathering resistance.
- Each model's tanks are sized appropriately to maximize acres per fill, while maintaining high efficiency.
- Tank options give you the ability to mix any tanks product with any of the other tanks for simple use and flexibility.
Auxiliary tank option
- A fourth steel auxiliary tank option is available for efficient carrying and application of small, low rate crops like canola or micro-nutrients.
- The auxiliary tank nests below and between the first and second tank and is available on the 4465, 4585, 4765, 4955 Precision Air models in capacities of 25 or 35 bushels, depending on cart size.
- The auxiliary tank utilizes a pneumatic tank fill system that reduces seed damage, can be loaded at ground level and accepts 1000 lb. tote bags or 50 lb bags.
Tank sensors
- A seed level sensor is standard in each tank and informs the operator through the AFS Pro 700 when the seed level is low.
- Optionally, an ultrasonic bin level sensor can be added to show actual tank level at all times.

Tank accessibility & visibility

Larger tank openings, low-profile lids and heavy-duty interior ladders provide easier access for operators, while a new over-center tank lid lock system ensures a tight seal. A ground-level indicator lets the operator know when bins are full.

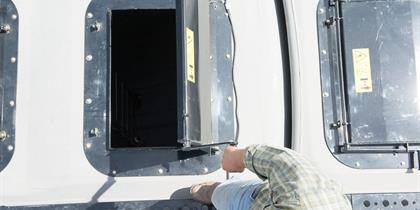

Lid & opening
- The new tank design offers large tank openings, easy to grab latch handles and low profile lids. All these features provide unobstructed movement for the conveyor or auger spout, meaning less seed spillage.

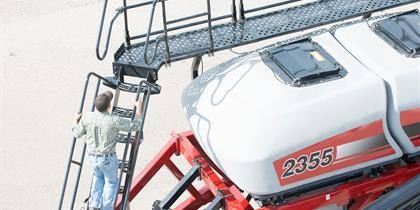

Staircase & platform
- The new durable, spring-loaded folding staircase allows quick access to the tank platform and feature solid hand rails and slip resistant treads.
- The staircase brings you to a large and secure platform for easy access to the tank openings, allowing you to safely monitor the auger and tank fill levels.
- Platform railings fold down without tools for easy transportation and storage.

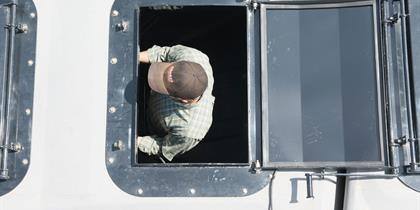

Tank ladder
- Internal tank ladders provide convenient, easy access to inspect inside each tank.
- An extra step bar and removable grab post make getting into and out of the tank easier.

Fast, convenient filling in the field

Choose a filling option that best fits your operation. With standard and deluxe auger options, a new conveyor system and the auxiliary tank filling system you will spend less time filling and more time in the field.

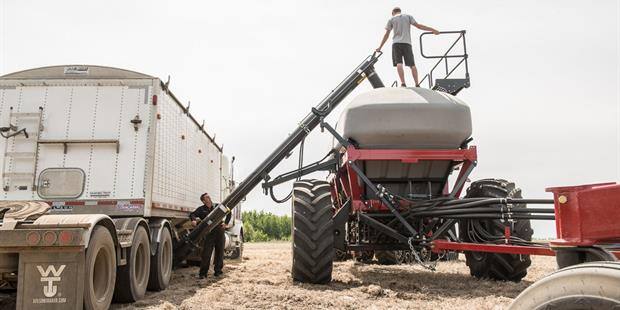

Standard auger
- The standard 10-inch-diameter auger has a longer hopper at the bottom for improved access under trucks during seed or fertilizer transfer.
- This auger option is standard on 2355, 3445, 4465 models, offers mechanical maneuvering and a 29 bu./min capacity; helping fill your primary tanks in 15 min. or less.
Deluxe auger
- The auger's wireless remote control allows effortless starting and stopping of the auger for easier auger positioning to all tank openings, without having to move the hopper.
- The deluxe auger system, is optional on the Precision Air 3445 and 4465 and standard on the 3555 and 4585 and fills the primary tanks of these models in 13 min. or less.

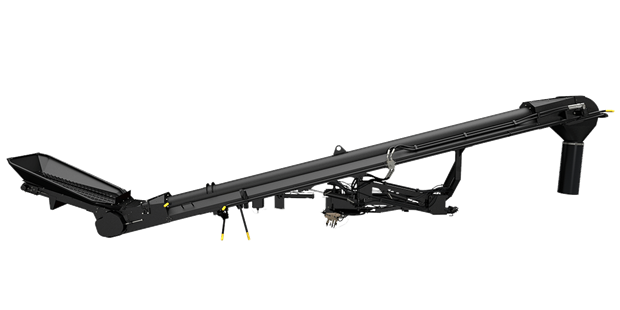

Conveyor
- Handles seed smoothly and gently and fills tanks nearly twice as fast as the deluxe auger system. With a maximum fill rate of 93 bushels per minute, fill a new Precision Air 4955 in under 11 minutes, giving you more productivity with every fill.
- The conveyor system provides the same remote control operation as the deluxe auger.
- Patented cam linkage automatically keeps the spout centered over the tank lids.
- A new conveyor system is standard on the Precision Air 4765 and 4955 and optional on the 3555 and 4585 models.

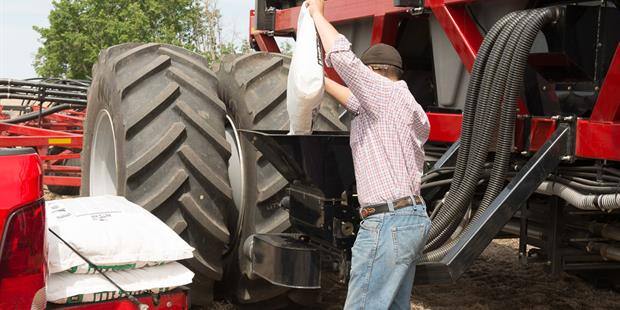

Auxiliary tank fill
- The revolutionary auxiliary tank fill system reduces seed damage and provides a smaller tank for smaller/low rate crop types.
- The auxiliary tank uses smooth air flow for ground filling – no need to carry bags up a ladder or use a lifting platform.
- A ground-level side door opens to access inside of the aux tank for inspection and cleanout.

AccuSection^TM control system

The patented and exclusive AccuSection Control (ASC) system helps you get the most out of your inputs and enhance yield characteristics by shutting off rows or sections to avoid over-seeding and over-application of fertilizer. Using AFS AccuGuide^TM autoguidance, the system turns off air drill sections automatically when you enter areas that have already been seeded, or at headland turns, point rows, ‘prairie ponds’, and sloughs. Growers who have upgraded spraying equipment to include section and nozzle control systems have realized savings on product use – ranging from 7 to 15 percent.

Quick attach air packages

The quick-attach connection system simplifies all hydraulic, electrical and primary line connections at the hitch, using stainless steel pipe connections and convenient over center latches.

Rugged and maneuverable frame construction

A bridge frame construction delivers maximum strength and maneuverability. With both narrow and wide configurations, the Precision Air cart's frame provides good flotation and stability. The air cart's hitch options allow it to be towed directly between your tractor and drill or behind your drill for better visibility.

Reduce compaction with tire flotation packages

Tow-Between and Tow-Behind tire flotation packages are designed to keep going in the toughest conditions and reduce compaction for higher yields.

Control from in the cab

Ready for use with ISO 11783 technology, the air cart is developed to work with the Case IH Advanced Farming Systems (AFS) Pro 700 control center. This 10.4 in (26 cm) color touchscreen enables simple and easy monitoring and operation of meters, section control technology applications, bin level and other air cart sensors.

Gallery

Current Models

Precision Air™ 2355
The Precision Air 2355 features corrosion-resistant tanks and meters for years of reliable service, even with dry fertilizers.
Precision Air™ 3445
The Precision air 3445's twenty-four volt, independent meter drive motors provide ample power and torque for precise rate control and adjustment.
Precision Air™ 3555
The Precision Air 3555 has a new master shut-off feature that allows for meter servicing without having to empty the air cart's contents.

Precision Air™ 4465
The Precision Air 4465 has larger tank openings, low-profile lids and heavy-duty interior ladders provide easier access for operators, while a new over-center tank lid lock system ensures a tight seal.
Precision Air™ 4585
The Precision Air 4585 includes new durable, folding stairway system with solid handrails and slip-resistant treads connects with a heavy-duty catwalk above the tanks that keeps the operator up and out of the dusty environment that can occur at the fill hatch level.
Precision Air™ 4765
The Precision Air 4765's new meters have a modular cartridge design that allows each primary run to have its own individual metering segment, making it easier to adjust for different seed or fertilizer sizes.

Precision Air™ 4955
The new conveyor system can fill the Precision Air 4955 in under 15 minutes, which means more productivity with every fill. The conveyor system also provides remote control operation.

Previous Models – Ask Your Dealer for Details

Precision Air™ 2280
- Compartments: 2
- Tank: Polyethylene
- Fill Auger Diameter: 10 in (25 cm)
Precision Air™ 2330
- Compartments: 2
- Tank: Polyethylene
- Fill Auger Diameter: 10 in (25 cm)
Precision Air™ 3380
- Compartments: 3
- Tank: Polyethylene
- Fill Auger Diameter: 10 in (25 cm)

Precision Air™ 3430
- Compartments: 3
- Tank: Polyethylene
- Fill Auger Diameter: 10 in (25 cm)
Precision Air™ 3580
- Compartments: 3
- Tank: Polyethylene
- Fill Auger Diameter: 10 in (25 cm)
