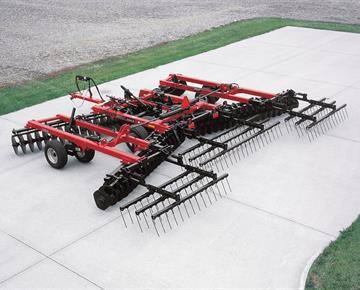

Case IH has a long history of being the leading supplier in the Offset Disk Market. The new model RMX790 will be replacing the current models 770DT & 780 Offset Disks. The RMX790 will bring 8 new sizes and many other improvements, both in folding and non-folding versions.
Stronger hitch New welded hitch design provides stronger tongue to hitch frame connection. The 6,4 m thru 8,2 m models feature 127 mm wall tubing as well as extra reinforcing side plates that provide 35% more strength.
Depth control A positive mechanical depth control with stop collars, or an optional single point hydraulic depth control gives precise depth adjustments.
Stronger gang tubes The gang tubes on 5,2 m and larger units with 71 cm blades have been increased to 1,27 cm. Gang tubes on all previous models were 3/8 in. thick.
Main frame lengthened The RMX790’s mainframe has been lengthened out by 280 mm compared to earlier models. This allows the rockshaft to be moved forward. The rockshaft arms have also been lengthened. This lengthening gives us a better balance on the machines.
