Home | Products | Tillage |
True-Tandem™ Disk Harrows
  • Offset Disk Harrows
  • In-Line Rippers
  • Nutri-Placer Fertilizer
  • True-Tandem™ Disk Harrows
  • True Tandem Vertical Tillage

True-Tandem™ Disk Harrows

Working widths from 22' 0" - 46' 7": Tough field conditions call for tough tillage tools. Case IH True-Tandem disk harrows lead the industry in ruggedness and reliability so you can manage heavy crop residue with ease.
  • Working Width

    22' 0" - 46' 7"

  • Transport Width

    14' 6" - 18' 6"

  • Disk Blade Diameter

    22" - 26"

  • Disk Blade Spacing

    7.5" or 9"

Agronomic design™ features

True-Tandem disk harrow technology combines uniformly distributed pull forces with exclusive Earth Metal blades for optimal tillage performance, even in the roughest of fields. Built on proven Agronomic Design principles, our disk harrows help you effectively manage soil and residue without compaction. Slice through tough residue, uproot root balls and level the soil to create the best possible seedbed for your crop.
TrueTandemDisk_Agronomic
  • Crop residue management

    • Control residue size and distribution to promote faster breakdown and nutrient cycling
    • Ultimate disk harrow technology to manage residue from a multitude of crops
    • The Crumbler puts the final touches on the seedbed
    • Precise depth adjustment allows for greater control over soil residue cover at planting to fit a wide range of soil types, topographies and management objectives
  • Soil tilth

    • Break through crusty, sealed-over soils to achieve the proper balance of minerals, air and water
    • The 18-degree gang angle matches blade concavity for thorough soil mixing and leveling
    • Promote a better seedbed finish without the excessive compaction typical of heavier disks
    • Helps reduce residue hair-pinning, resulting in better seed-to-soil contact and stand establishment
  • Seedbed conditioning

    • Put the finishing touches on fields by sizing clods and increasing the soil’s contact with residue for maximum decomposition
    • Provide a uniform seedbed depth and temperature, contributing to early, even plant emergence

Durable true-tandem frame

Improve balance and stability in the field with the True-Tandem frame design. The combination of mirror-matched gangs and a rugged, low-maintenance pull-through frame eliminate drift and accommodate higher ground speeds compared with the traditional double-offset frame. LED lights and a high-quality powder coat paint finish keep you in the field longer and your equipment looking good for years to come.
TrueTandemDisk_True-Tandem Frame Design
  • Mainframe and wings

    • Provide exceptional center of gravity and balance
    • Designed with gusset plates to maximize strength and stress distribution
    • Deliver more uniform weight per blade
    • Increased length over competitive equipment improves overall balance and fore and aft leveling
    • Overlapping weld design and welded cylinders improve durability while reducing maintenance and the chance of leaking
  • Greaseless bearings

    • Featured on wing pivots, rockshafts and the Crumbler
    • Reduces routine maintenance, keeping you in the field longer
  • Durable design attributes

    • LED lights are brighter and longer-lasting than incandescent lamps
    • The Class 3 powder coat paint finish retains color longer and is more scratch-resistant

Level the growing field

Work the soil you want to work. The lineup of True-Tandem disk harrows engages soil to your intended depth without disrupting soil density below the operating depth. It’s a system that’s proven to provide more consistency, even as soil types change across the field. And thanks to an intuitive depth adjustment system, you easily can adjust depth control and leveling to meet the needs of your conditions and fields.
TrueTandemDisk_Leveling and Depth Control
  • Single-point hydraulic depth control

    • Easily adjust operating depth with a single hand crank conveniently located at the front of the machine
    • Helps adjust to adverse conditions, such as wet, muddy soil
    • The system holds a constant blade operating depth to provide a uniform seedbed depth temperature, contributing to early, even plant emergence
  • Fore and aft leveling

    • Optional hydraulic front-to-back leveling allows quick operator reaction to changes in field conditions
    • View the gauge from the cab to easily return to your pre-adjusted position

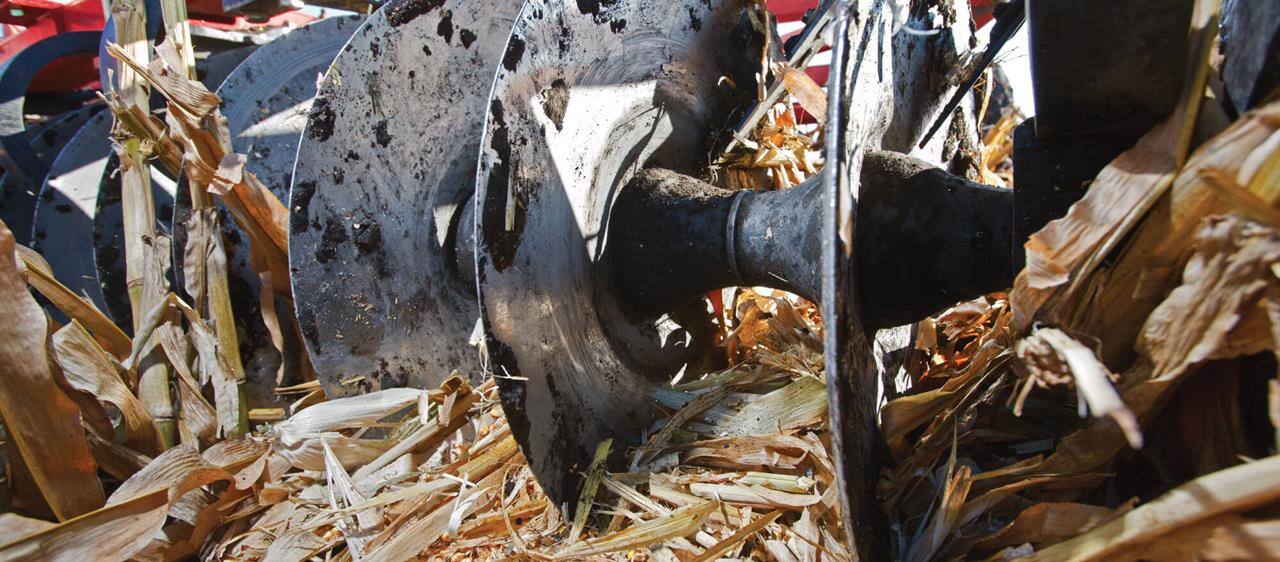

Keep your edge with earth metal disk blades

Our industry-exclusive Earth Metal disk blades help you cover rocky terrain and uneven ground with confidence — even at high speeds. Equally tough and breakage-resistant in all directions, Earth Metal disk blades are proven stronger than ordinary carbon steel blades. Perfect for no-till and minimum-till environments, these disk blades penetrate hard, dry soils to help you break through surface compaction, effectively slicing through fall crop residue or spring weed flush.
Keep your edge with earth metal disk blades
  • Right-sized for performance

    • True-Tandem 345 disk harrow blades are 22 inches in diameter, right sized to handle residue and create the perfect seedbed
    • The True-Tandem 375 all-purpose disk features a unique shallow concavity bladed front gang and a standard concavity rear gang that allow for better soil penetration and increased ground speeds of up to 7 mph. Standard concavity equipped front gang is also available for a more traditional disk configuration.
    • A 26-inch blade option is available on the True-Tandem 375 disk harrow for maximum soil movement and mixing
    • Blades provide additional tillage depth — up to 4 inches deep in one pass — to help move more soil and residue
    • Capable of running 4.5-7 miles per hour for optimal performance and greater productivity
  • Built for longevity

    • Using pure boron alloy steel and an extremely precise manufacturing process means the disk blades hold their shape better and resist breaking or bending
    • Each disk blade runs on its edge, causing soil to explode off the blade and level with minimal backside pressure — this results in reduced compaction compared with conventional blades
  • Crimped-center disk blades

    • Blades feature a unique, flat, crimped center for a tighter fit with the cast iron nodular spools
    • Blade design adds strength where it counts — in the center of the blade
    • Disk blade scrapers are adjustable in gangs or individually
    • Scraper arm options can be tailored to local conditions, with heavy-duty, rigid arm scrapers recommended for heavy soils and lighter residue situations
  • Rollable disk blades

    A rollable disk blade offering allows customers who desire the ability to edge roll the disk blade to sharpen. Made of a high-quality alloy with the toughness and durability of boron while maintaining the ability to roll the edge. Note: This offering is not Earth Metal.

Durability and low maintenance for any field

The True-Tandem gang assembly precisely matches front and rear gang blades for maximum productivity and a smooth seedbed, regardless of field conditions. The 18-degree gang angle paired with the concavity and crimped center of each blade gives you even cutting and mixing action. With more durability and low maintenance features, the True-Tandem disk harrow will get you in and out of the field and ready to plant.
TrueTandemDisk_Gang Assembly
  • Bearing options

    • Flange-style bearing works well in fields with few rocks and debris
    • For areas with rocks and debris, the cushion gang option holds the arbor bolt firm, yet allows the joint to rotate freely through rough terrain for a high-quality finish
    • For extreme soil conditions and rocky areas, additional heavy-duty bearings and gang hangers strengthen and support longer gang segments (31 ft. and 34 ft. only)
  • Proven center shank design

    • A center shank removes the uncut soil between disk gangs to create uniform residue and soil mixing
    • Designed to let residue and soil roll off
  • Nodular cast-iron spools

    • Made from nodular iron, which is stronger than gray cast-iron or steel-fabricated spools
    • Spools withstand shock loads, providing the weight necessary to cut residue and penetrate hard soil
    • The needed weight to penetrate hard ground and cut residue is carried in the gang, not the frame of the tool to reduce the stress on frames, bearings and gang hangers
  • New bolt-and-clamp mounting design

    • Straight bolts and steel plates around the gang tube add strength and durability

Reach seedbed perfection

Put the finishing touches on your seedbed with the double-edge TigerPaw Crumbler rolling reel. Every bar has two edges to hit large clods twice and tuck residue under the soil’s surface for improved leveling and better seed-to-soil contact. The unique design of the Crumbler ensures each bar is rifled to maintain constant down pressure, while hydraulic cylinders provide easy adjustability from the cab and settings to match any field condition.
TrueTandemDisk_Seedbed Conditioning
  • TigerPaw crumbler

    • The patented Crumbler produces more uniform clod sizing and residue distribution
    • The formed, twisted, shape limits excessive penetration into the soil to minimize accumulation of mud inside the Crumbler
    • The Crumbler is made of high-strength steel for a longer life
    • Mounted directly to the main frame for a more stable, long-lasting and reliable tool
  • Hydraulic down pressure

    • Hydraulic down pressure allows downforce to be applied to the Crumbler and easily adjusted to match field conditions
    • The force is changed with a hydraulic valve block found near the front of the tool
  • 3-bar Coil tine harrow

    • Made to perform in high-residue conditions
    • Adjustable tine angles and an adjustable down pressure
    • Indexed tines improve soil leveling

Hook to your tractor and go

The rugged True-Tandem frame provides two height options for the hitch, depending on the tractor’s drawbar. Whether going across rugged, rolling terrains or field to field, you’ll be able to easily maneuver your equipment.
TrueTandemDisk_Hitches
  • Front t-bone hitch

    • Spring cushioned, featuring the “perfect hitch” clevis for tractor pin compatibility and extra safety during hook up
    • Engineered to maximize rear tractor tire clearance during tight turns
  • Swivel hose stand

    • Mounted on the pull hitch
    • Keeps hydraulic hoses and wires out of the way during hook up and transport
  • Rear hitch versatility

    • Optional feature allows for pull-type attachments for additional soil conditioning
    • Equipped with a 9-pin electronic connector for lighting and one set of hydraulic couplers
    • Hitch vertical capacity is 1,000 lb.

Larger tires, less compaction

Reduce compaction in your fields with large, stubble-resistant tires. Providing a greater footprint, these tandem wheels work independently for a smoother ride and longer life. With the rockshaft mounted directly to the frame, the hubs and tires are more durable and tillage tool more balanced.
TrueTandemDisk_Wheels Tires
  • Frame-mounted gauge wheels

    • Bolted directly to the frame, these wheels feature an adjustable, one-way pivot design, providing stability and less wobble in normal field conditions
    • Design avoids sliding the gauge wheel and gouging the gang when wheel is on inside of turn
    • Set the gauge wheel for easy wing leveling — no wrenches are needed
    • Pivoting gauge radial stabilizer wheel increases surface area and provides improved durability
  • Walking tandems

    • Provide excellent depth control and stability
    • Low-cost standard configuration or optional larger, stubble-resistant tires

Gallery

  • In-depth look behind the Earth Metal manufacturing and testing processes
  • True-Trandem Disk Harrow 375
  • True-Tandem Disk Harrow 375
  • True-Tandem Disk Harrow 345 / 375
  • True-Tandem Disk Harrow 345
  • True-Tandem Disk Harrow
  • True-Tandem Disk Harrow 345
  • True-Tandem Disk Harrow Turnbuckle Leveling Adjustment
  • True-Tandem Disk Harrow Cushion Gang Bearing
  • True-Tandem Disk Harrow
  • True-Tandem Disk Harrow Gauge Wheel
  • True-Tandem Disk Harrow 375

Brochures

  • True-Tandem 335VT and 335 Barracuda Vertical Tillage Brochure
    True-Tandem 335VT and 335 Barracuda Vertical Tillage Brochure (8.65 MB)
    Share Download
  • True Tandem 345 and 375 Disk Harrows Brochure
    True Tandem 345 and 375 Disk Harrows Brochure (4.37 MB)
    Share Download

Next Steps

  • Product Availability

    Product availability and specifications may vary by market/region. Please speak to your local authorised Case IH dealer for more information.

    Ask a Dealer
  • Contact Us

    If you need additional information from us or would like to learn more about our products and services, please contact us.

    Contact Us
  • Parts & Service

    Genuine Case IH parts are available from Case IH dealers worldwide.

    Learn More
  • Find a Dealer

    Find your local Case IH dealer.

    Find a Dealer
Research Tools
Find a Dealer Find a Dealer Near Me
  • Our products

  • Tractors
  • Planters
  • Seeders
  • Application Equipment
  • Harvesting
  • Tillage
  • Hay & Forage
  • AFS
  • About Case IH

  • History
  • Efficient Power
  • Celebrating 75 years of Austoft
  • Dealer Opportunity
  • J.I Case 200th Birthday
  • Parts and Service

  • Parts
  • Service
  • Training
  • Parts Catalog
  • Resources

  • Brochures
  • Videos
  • FAQ
  • Dealer login
    Log in
  • Legal Notices
  • Terms
  • Privacy Policy
© CNH Industrial America LLC. All Rights Reserved. Case IH and CNH Industrial Capital are registered trademarks of CNH Industrial America LLC.
{name} {company}
{label}
