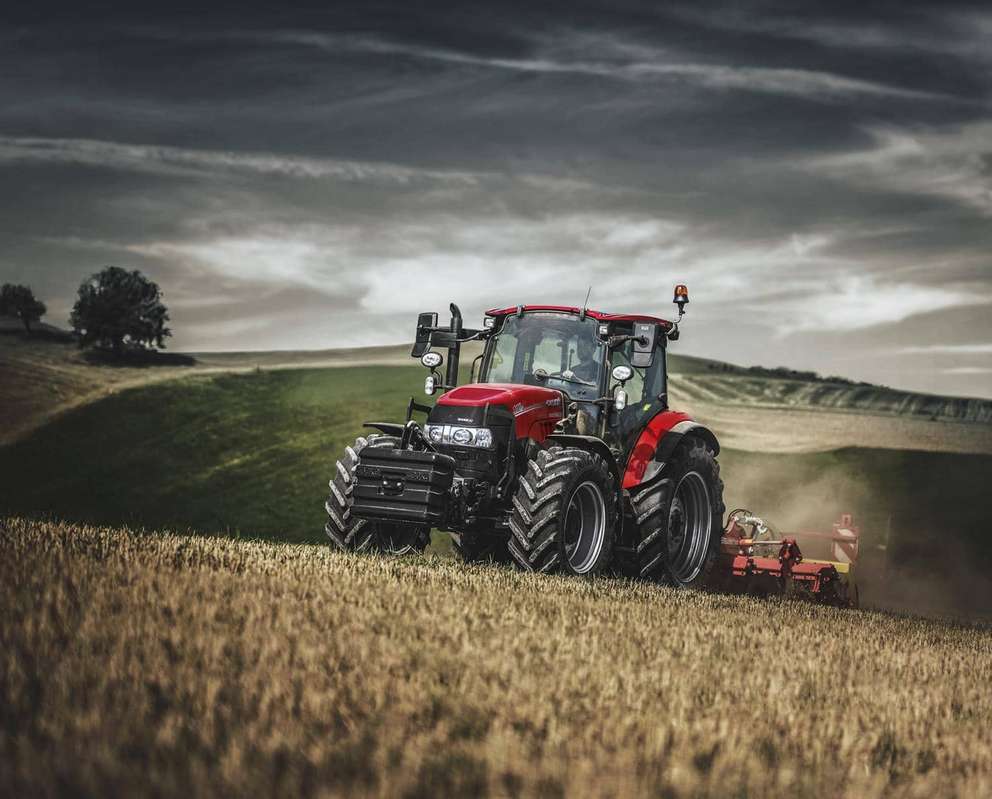

FARMALL 100C | |
|---|---|
ENGINE | |
FPT - EU Stage V [Hi-eSCR2] | ✓ |
Rated power acc. ECE R120 [kW/hp] | 74 / 100 |
Number of cylinder / capacity [cm3] | 4 / 3,600 |
Max torque [Nm] | 450 @ 1,300 rpm |
Torque rise [%] | 47 |
Diesel / AdBlue capacity [litres] | 130 / 10 |
TRANSMISSION | |
ActiveDrive 2 - 24x24 gears, 2-speed Powershift, 40 kph ECO | ✓ |
Adjustable Powershuttle | ✓ |
Multicontroller gear lever incl. Powerclutch | ✓ |
HYDRAULICS | |
Open Center pump 64 l/min + 36 l/min steering pump | ✓ |
Mechanical rear remote valves + diverter | 3 |
Mid-mount valves with Advanced joystick | 2 |
PTO | |
540 / 540E / 1,000 @ 1,938 / 1,535 / 1,926 rpm | ✓ |
Hydraulic PTO | ✓ |
Soft start, external control | ✓ |
REAR LINKAGE | |
EDC - max. lift capacity 4,400 kg, | ✓ |
External lift rams | 2 |
External rear fender control | ✓ |
CONFIGURATION | |
High visibility roof panel | ✓ |
Wide angle mirror | ✓ |
Air-conditioning system | ✓ |
Air suspended driver seat with armrest (15° pivotable) | ✓ |
Working lights | 6 |
Front linkage and front PTO | ✓ |
Air trailer brake system | ✓ |
FRONT LOADER CASE IH L3815A | |
Mechanical self-levelling, FITLOCK2+ System® automatic hitching incl. multi-connection | ✓ |
SHOCK ELIMINATOR suspension, EURO implement carrier | ✓ |
3.85 m max. lift height @ implement pivot | ✓ |
2,155 kg max. payload 600 mm from implement pivot axis | ✓ |
