• Up to 1,200 lbs./ac. total product application capability at 10 mph provides the ability to put on the amount of product you need and cover acres quickly and efficiently

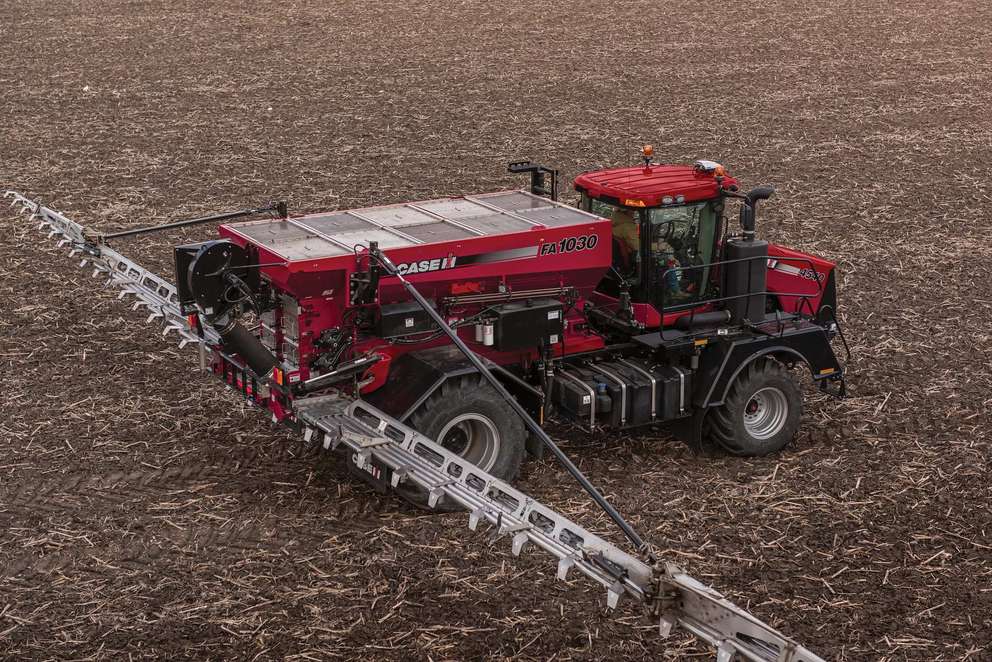

• Rear-mounted 72-ft. or 90-ft. stainless steel boom is designed to cover more ground and is equipped with 32 (37 on a 90-ft. boom) factory-tuned deflector plates, so each distribute an equal amount of product
• Case IH Viper 4+ controller provides a simple user interface, functioning as either a stand-alone rate controller or an integral part of guidance and mapping systems

• Variable rate capable product application system and left/right boom section control is powered by dual, independently driven 304 stainless steel mesh chain conveyors — one for each side of the applicator
• Hydraulically driven fan provides efficient and consistent air flow
• PWM-controlled hydraulic valves for conveyor chains and metering wheels provide quick response times when rate changes are commanded
• Stainless steel bin screens improve application consistency by filtering clumps

• Single-bin configuration
• Single with micro-bin configuration
• Double-bin configuration
• Triple-bin configuration

Optional micro-bin is perfect for granular fertilizer, granular chemicals or even cover crop seeding and is capable of variable rate product control

Adjustable divider on multiproduct hoppers allows operator to easily change from a 50/50 to a 60/40 split, with no tools required

• If the micro-bin is used for a third product, then either 50/37/13 or 60/27/13 splits can be selected
