Patriot 50 Series Sprayers

The completely redesigned Patriot® 50 series sprayer combines timely, accurate spraying capabilities with a luxury cab, total vehicle control and real-time connectivity, allowing you to make data-driven decisions to drive profitability.
Patriot_4350_4553_10-21

Patriot 50 Sprayer Models

View our selection of Patriot sprayers!
Patriot_3250_D1-0890_06-21

Patriot 3250

The Patriot® 3250 sprayer is available with 3,785L product tank capacity and offers 268 rated horsepower, 311 peak horsepower.


Quick Specs:

  • Engine HP: 268 hp/311 peak hp
  • Tank Size: 3,785 L
  • Boom Width Options: 18.3/30.5 m (60/100 ft.), 18.3/27.4/36.6 m (60/90/120 ft.), 21.0/41.1 m (69/135 ft.) model dependent
  • Speed Range: 0-51.5 kph
Patriot_4350_1459_PET_06-21

Patriot 4350

The Patriot® 4350 sprayer offers 4,542 L of tank capacity and 335 rated horsepower, 374 peak horsepower.


Quick Specs:

  • Engine HP: 335 hp/374 peak hp
  • Tank Size: 4,542 L
  • Boom Width Options: 18.3/30.5 m (60/100 ft.), 18.3/27.4/36.6 m (60/90/120 ft.), 21.0/41.1 m (69/135 ft.) model dependent
  • Speed Range: 0 – 59.5 kph
Patriot_4450_6038_06-21

Patriot 4450

The Patriot® 4450 sprayer offers 6,057 L of tank capacity and 390 rated horsepower, 415 peak horsepower.


Quick Specs:

  • Engine HP: 390 hp/415 peak hp
  • Tank Size: 6,057 L
  • Boom Width Options: 18.3/30.5 m (60/100 ft.), 18.3/27.4/36.6 m (60/90/120 ft.), 21.0/41.1 m (69/135 ft.) model dependent
  • Speed Range: 0 – 59.5 kph

Patriot 50 Series

New Look, Same Patriot DNA

For decades, growers and custom applicators have trusted the Patriot® sprayer to take on tight application windows — but on today’s operations, it takes more than timely, accurate spraying to drive profitability.

No matter how trusted and reliable, it’s tough to teach an old sprayer new tricks. That’s why we redesigned the Patriot 50 series sprayer from the ground up — while keeping the Agronomic Design features that mattered to you most. Now, the Patriot 50 series sprayer combines those key elements with advanced technology and connectivity solutions to take your application to the next level.

Key Features

Take Control Over Your Product Application

In our industry, there’s a lot that’s out of our control — input costs, markets, Mother Nature. The Patriot 50 series sprayer is designed to help you expertly manage what you can control to maximize yield potential: crop protection and fertility applications. Plus, with a wide range of configurations and options, there’s a model that fits your needs.

patriot-features-06

Superior Comfort & Performance

A quiet, comfortable interior that boasts an abundance of glass for maximum, unrestricted visibility, a premium cab is designed to increase operator performance.

Experience superior ride quality, stability and control with a 4-bar linkage chassis suspension system.

The MultiControl Armrest layout provides exceptional ergonomics, with a comfortable operator seat that swivels 30 degrees to the right.

CIH Producer with Ipad and Patriot Sprayer

Integrated Technology

Connected solutions are integrated into every Patriot 50 series sprayer to provide endless opportunities for your operation.

A suite of technology solutions which are capable of performing wireless file transfers, sharing guidance lines, creating prescription maps, fleet management, data sharing and product control.

AIM Command FLEX™ II advanced spray technology ensures consistent chemical application rate, pressure and droplet size, with individual nozzle on/off control for increased accuracy and efficiency.

Patriot_4350_4553_10-21 (3)

Agronomic Design

The proven cab-forward, rear-engine design helps you achieve timely application with optimized weight distribution, getting you into fields sooner with less compaction.

Strong, durable booms are built with robust material, while the boom suspension design helps provide a stable platform for product application.

Take accurate and effective coverage to the next level with the integrated AutoBoom® XRT Automatic Boom Height control that detects and accommodates changes in terrain.

A new center section design minimizes boom yaw in challenging conditions — even with longer boom options.

Operator Environment

The Ultimate Operator Experience

The Patriot 50 series sprayer puts productivity first with a cab that perfectly blends simplicity, control and comfort.
/Patriot_4350_Cab_0965_11-21
/Patriot_50_Series_Cab_6216_06-21
/Patriot_4350_0454_06-21
/Patriot_4350_Cab_1182_11-21
/Patriot_4350_Cab_0965_11-21
/Patriot_50_Series_Cab_6216_06-21
/Patriot_4350_0454_06-21
/Patriot_4350_Cab_1182_11-21
Multi-Control Armrest
The same award-winning armrest design from current-model Steiger® and Magnum™ series tractors provides exceptional ergonomics and ease of use. With customizable hot buttons, most-used controls are always within reach.
Connectivity & Support

Achieve Greater Efficiency With Connected Solutions

In today’s operations, it takes more than timely, accurate spraying to protect your profitability. With the power of AFS Connect™ and Raven Slingshot®, you have the unmatched connectivity, guidance, data and monitoring solutions you need to ensure your machines are ready for the tasks at hand.

Patriot_50_Series_Raven_Slignshot_iPad_Interface_0123_10-21

AFS Connect & Raven Slingshot

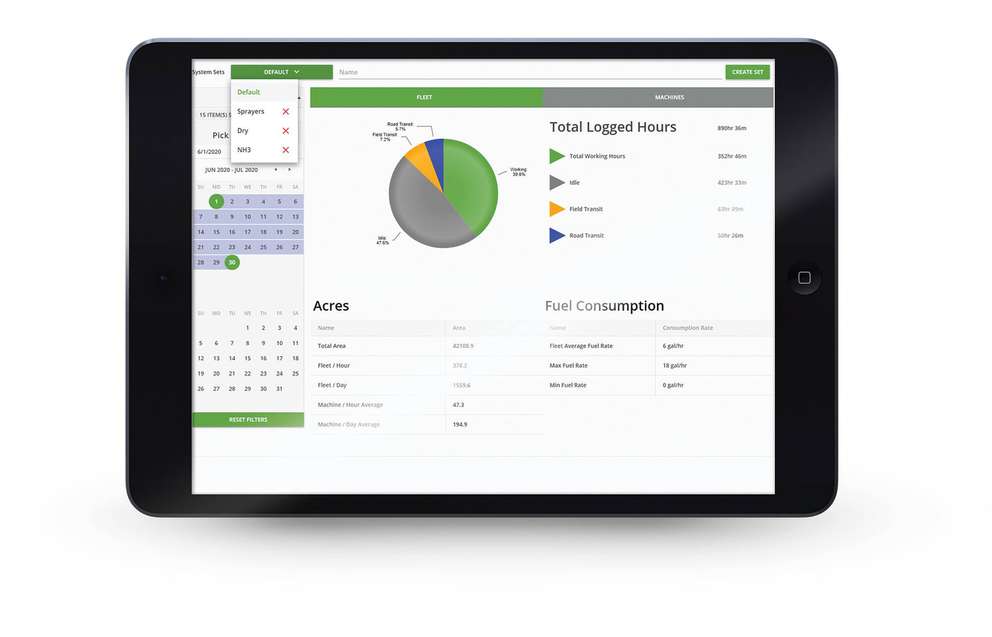

AFS Connect
Every Patriot 50 series sprayer comes with a five-year subscription to AFS Connect from the factory — so you can create prescriptions, visualize data and track your machines in one place.

With AFS Connect, these features — and more — give you full visibility to your operation:

  • Data Visualization: View and store application maps, season to season.
  • Prescription Tool: Create prescriptions then export and easily transfer to your Viper 4+.
  • Equipment Mode: See machine location and fleet information when you need to.
  • Vehicle Location History: Track machine location, parameters and progress to better plan tasks and tendering logistics.


Raven Slingshot
With the Slingshot Gold subscription, included with RS1™ or SC1™ guidance options, maximize your operation’s productivity with these capabilities and more:

  • Job Sync: Share live coverage maps and guidance lines between two or more sprayers working in the same field.
  • Job Generator: Set up jobs in the office and dispatch to the Viper 4+ in sprayers out in the field.
  • Fleet View: Fleet or operations managers can see sprayer details in real time.
  • Slingshot Gold Subscription: Included with the SC1 guidance option, maximising your operations productivity with these capabilities and more.
AFS_Connect_Producer_Laptop_4629_11-21

Remote Capabilities

Display Viewing
  • With the operator’s permission, Case IH dealers and distributors, as well as farm and operation managers, can remotely see exactly what is on screen in the cab to assist with machine setup and optimization.
Service Support
  • Work with your local Case IH dealer or distributor to remotely diagnose maintenance and service issues and to identify the parts you need.
Software Updates
  • Your local Case IH dealer or distributor can remotely push updates to your operating firmware wirelessly to take advantage of new features, functionality and enhancements.
Patriot_50_Series_Vector_Pro_Receiver_5583_06-21

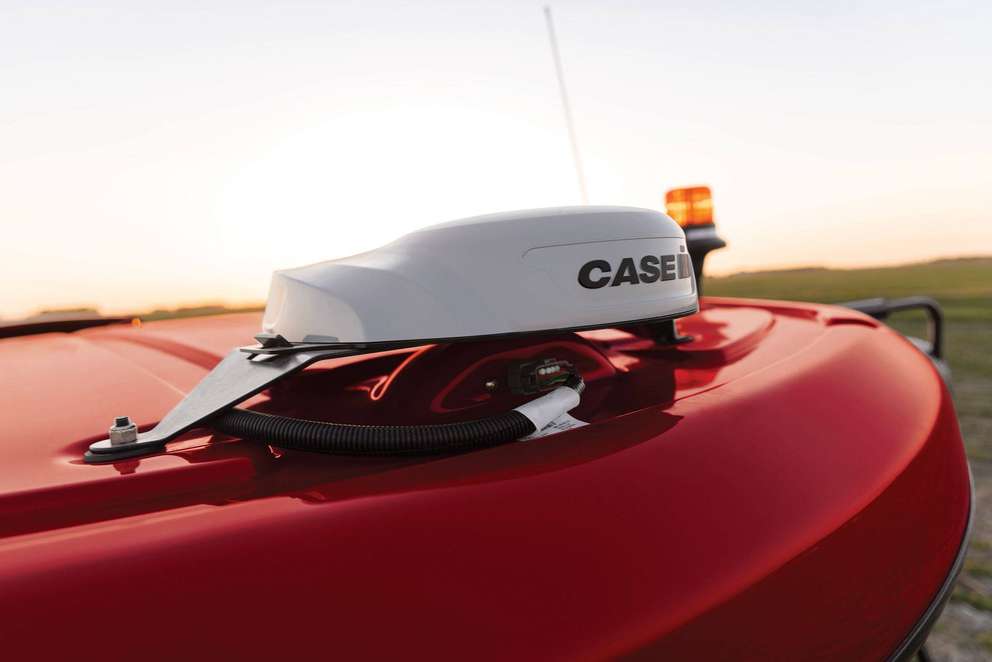

Guidance

Auto-guidance

Every Patriot 50 series sprayer has auto guidance-ready to ensure accurate application by reducing skips and overlaps. Choose from either RS1 guidance or the AFS Vector Pro receiver with SC1 guidance to match your operation.

Both receiver and guidance options are compatible with VSN® visual row guidance and the AutoTurn™ automated headland turning option.

VSN Visual Row Guidance

Compatible with both RS1 guidance and the AFS Vector Pro receiver with SC1 guidance, the VSN® visual row guidance system provides exceptional accuracy to help reduce driver fatigue and increase productivity.

patriot-features-05-1

Spray Technology

Advanced Spray Technology

With AIM Command FLEX II advanced spray technology, you get the best possible chance at maintaining your ideal chemical application rate, pressure and accuracy.

Optimised Application

  • AIM Command FLEX II technology optimizes application rates and droplet sizes for consistent application, regardless of speed and ground conditions
  • With six modes of operation, this advanced spray technology delivers flexible and accurate application
  • Standard individual nozzle on/off control minimizes input costs and improves accuracy by reducing skips and overlaps
  • Enhanced nozzle control valves are higher-flow capable, so you can spray at faster speeds or apply more product as needed, while severe-duty poppets help extend operating life.

Turn Compensation

  • AIM Command FLEX II technology effectively compensates for different speeds across the boom to ensure correct application rates during turns
  • Each nozzle adjusts its duty cycle to match the targeted application rate based on speed, nozzle position on the boom and turn radius

Precise Product Flow

  • AIM Command FLEX II technology provides individual nozzle on/off control, delivering the ultimate in spray accuracy and precision
  • The ability to control spraying at the individual-nozzle level helps reduce overapplication that adds costs and results in potential crop damage.
  • To accommodate sprayer wheel tracks, fence rows or other field conditions, you can ,strong> spray rates up to 30% higher than your target rate on up to eight nozzles.

Improved Drift Control

  • For on-demand drift control, AIM Command FLEX II technology allows you to toggle between two pre-set spray pressures that can be reset up or down at any time
  • Input a lower pressure setting to selectively avoid off-target application in sensitive areas or to respond to wind gusts. When normal conditions return, toggle back to the higher pressure setting on the go
  • You also have the option of inputting a higher pressure setting for greater canopy penetration
Patriot_3250_1004_06-21

Boom Technology

Strong Boom Design. Powerful Tech.

Strong Boom Design. Powerful Tech. Built with robust materials, the parallel-link boom design packs superior strength without excessive weight. Advanced boom technology options are seamlessly integrated to take application accuracy and efficiency to the next level.

AutoFold Plus

  • Get moving faster with an automated fold/unfold feature — just push and hold the AutoFold switch on the MultiControl Armrest

AccuBoom

  • Customize overlap and section control to meet your desired field results and reduce overapplication to save on inputs
  • Operated through the Viper 4+ display, AccuBoom Automatic Boom Section control automatically turns off boom sections when the sprayer enters an area that has already been sprayed and then turns the sections back on when leaving the applied area

AutoBoom XRT

  • The integrated AutoBoom® XRT Automatic Boom Height control option detects and accommodates changes in terrain for more accurate and effective coverage across every inch of ground
Maintenance & Uptime

Maintenance & Tendering Made Easy

Maximize time in the field and get tendering or maintenance out of the way quickly and efficiently. Everything is within reach with a one-stop service center, exclusive tip-wash station, ground-level connections and an open architecture design.

Patriot_4350_0402_06-21

One-stop Service Centre

With a midship-mounted service centre, you can perform all primary tendering functions from one central location.

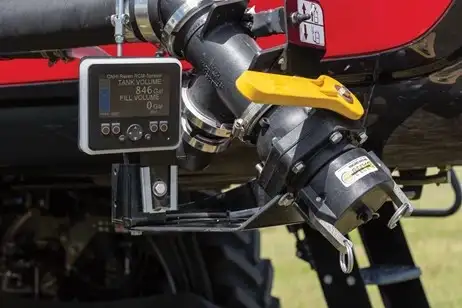

Easy-Fill Options

An optional fill flowmeter monitors the volume of product added to the tank and automatically updates the tank level indicator on your Viper 4+ display.

Patriot_4450_1821_06-21

Convenient Wash Station

An exclusive tip-wash station provides an easy, accessible way for operators to clean off spray tips with both an air nozzle and water outlet.
Patriot_3250_5906_06-21

Lighting

Light Up The Night

When you need to finish the job after hours, enhanced LED light packages are brighter for better nighttime visibility, use less power and are controlled from the AFS Pro 1200 display. Every Patriot 50 series sprayer includes front hood-, cab- and tank-mounted lighting and a center-section beacon light to help ensure you can operate safely while covering acres at night and during transport.

Spray Pattern Lighting

  •  Factory-installed, blue-lens spray pattern lights provide exceptional visibility of your application and nozzles

Deluxe Lighting Package

  • For operators who frequently spray at night, additional cab- and boom-mounted lights provide maximum visibility and help you see all sprayer components and the terrain around you
;
