Austoft 4000 Sugarcane Harvester

The new Case IH Austoft 4000 is here. It is a compact harvester designed especially to make it possible to streamline the harvesting process in sugarcane fields that use reduced row spacings from 1.2 meters.

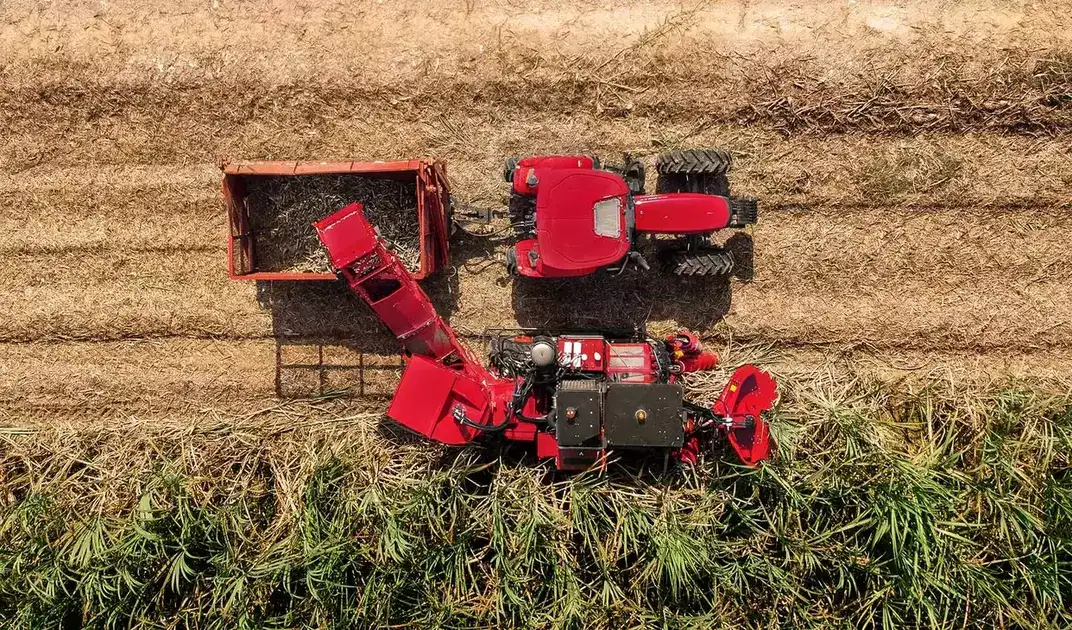

Austoft_4000_sugarcane_harvester_with_tractor_500
POWER

169 - 125 HP/KW

ENGINE

Turbo / Aftercooler

CROP DIVIDERS

1,200 mm

SPEED

16 Km/h

Watch the New Austoft 4000 Series Sugarcane Harvester in Action

Explore the Features

  • The Austoft 4000 is smaller in size compared to conventional models and is easy to move between cane fields. Designed with the same functional concept as the A7000 Series harvesters, many of its parts are interchangeable with other Case IH sugarcane harvester models. This characteristic significantly increases the machine’s cost-benefit.

  • Working in row spacings from 1.2 meters, this harvester is narrow enough to harvest one row without compacting the root zone of the adjacent cane row. It is compact, light, has excellent manoeuvrability and an excellent base cut resulting in reduced cane loss and increased productivity in subsequent ratoon crops. The Austoft 4000 is designed to harvest crops up to 85 tons per hectare.

  • Designed for maximum performance, the Austoft 4000 demonstrates its versatility by harvesting both in sugarcane fields with reduced spacings of 1.2 meters as well as in sugarcane fields with wider row spacings up to 1.5 meters. By harvesting in row spacings, the Austoft 4000 becomes a superb option for cane growers who want to harvest mechanically, as well as big plantations where the Austoft 4000 can harvest short rows and/or low productivity soils. This frees the bigger volume harvesters like the Austoft 8010 series in order to harvest to their full daily harvest capacity, representing a significant gain in machine productivity.

  • The Austoft 4000 was designed to make maintenance simple. The engine, hydraulic system, and industrial components are easily accessible, streamlining the machine preventive maintenance, which in turn increases the machine’s availability.

  • For greater productivity, the Austoft 4000 has operator comfort, good visibility, and operational ease for the operator. The controls are ergonomically positioned to ensure convenience and functionality for the operator during the long working hours.

  • Radiator

    Larger radiator, higher cooling capacity, longer lifespan.

    USB port

    Added USB charging port for operator convenience and improved communication.

    Windscreen

    Windscreen protector preventing damage from the cane.

    Elevator

    Elevator cane flap to reduce spillage.

    Rear wheels

    Larger rear wheels, improved stability, reduced compaction.

    eView™ cameras

    Optional eView™ operating rear cameras. Located on the sides of the cab roof for monitoring the elevator and can be easily monitored from a screen in the cab.

    Cooling fan

    Two speeds engine cooling fan.

    Topper extension

    Optional Topper Extension and DIA KIT increases cleaning capability.

    Extractor cleaning system

    New 4 blades extractor cleaning system - The Case IH exclusive Antivortex system reduces vegetable impurities and cane loss and increases load density. With it, the power demanded by the extractor has been reduced compared to a conventional system, reducing vibrations and fuel consumption.
