Axial-Flow 150 Series

AXIAL-FLOW 150 SERIES

Designed for productivity

Everything about the Axial-Flow 150 Series is about greater productivity. And not one minute will be wasted in servicing, with easy access to service points. On top of that, Residue management quickly and easily switches between spreading and windrowing, and ensures the even spreading ideal for modern farming practices.

Built for our customers

Axial-Flow 150 Series

Case IH engineers understand that, whilst getting grain in the barn is the key to maximising income, combine running costs are the farmers’ highest expense, and that covering the ground/fields quickly means nothing if it comes at the expense of excessive fuel and maintenance costs and increased grain losses. At the heart of Axial-Flow 150 Series combines are engine and rotor refinements that allow the operator to extract as much power as possible from every last drop of diesel while ensuring long-lasting reliability of every component. That is proof of how Case IH is constantly seeking to reduce the impact of its equipment both on your wallet and on the environment.

Uncomplicated Drivelines

Case IH is known for using very few and very practically placed drivelines, so that access remains easy to all service points.
The drives for the whole combine are powered from a central gearbox mounted directly to the engine for maximum efficiency. Indeed, Axial-Flow is unique in that all the principal power transmission is achieved without the use of belts, avoiding the problems associated with slip, wear, maintenance and replacement.

Excellent Ergonomics

The cab features ergonomic layout to give you full control at all times, with an unobstructed field of vision, a comfortable seat and plentiful leg and foot room, the Multifunction Propulsion Control Lever which is conveniently integrated in the right armrest, and the control panels integrated on the right hand pillar of the cab. Working in such an environment is rewarding – not only because it means earning your income but also because you will be experiencing a powerful mix of comfort, productivity, and tangible results.

No Limits on Your Working Day

When it’s time to harvest, crops have to be removed from their fields fast. Harvesting often extends late into the night to make use of optimal weather and crop conditions. LED Lights on the roof of the cab completely light up the work area. Additional lights in the grain tank, on the unloading auger and at the rear of the combine ensure all critical areas are fully illuminated.

Uncomplicated Drivelines

Excellent Ergonomics

No Limits on Your Working Day

Uncomplicated Drivelines

Excellent Ergonomics

No Limits on Your Working Day

Grain Handling

Easy Maintenance Access

When it is necessary to enter the grain tank for servicing, maintenance or cleaning, Case IH engineers have made the task safer and simpler. A ladder makes it easier to gain full access when necessary. No tools are required to extend or retract the standard grain tank extensions. Axial-Flow combines are designed to ensure you spend more time in the field, and less time setting up and servicing.

Generous Grain Tank

Axial-Flow 150 Series combines are designed to put large quantities of clean, high quality grain in the tank – and fast. Once crops are ripe and ready, we know your priority is to get them off the field and into the shed as quickly as possible.

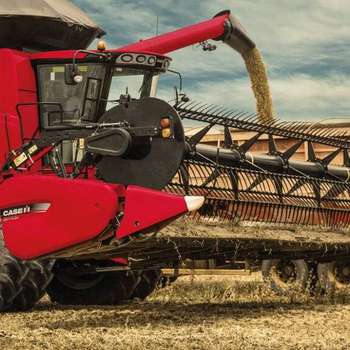

Top pivoted, inclined unloading auger allows enough space to safely unload the grain into highwalled trailers
Easy view to the unloading auger from the comfort of the cab without any obstructions

Axial-Flow 150 Series Family_NHC_0423_06-19

More Filling Capacity

Optional, electric grain tank extension folding function, makes for easier transport/storage, as well as fast acting protection if the weather turns bad. The open style extensions widen the grain tank towards the top, to ensure maximum fill without spillage when working on rolling fields. The central grain tank filling auger reaches high over the top to keep filling efficiently without crop pushing back.

Space for Everything

Every Axial-Flow model has a grain tank that is designed to be large enough to allow the opening up of large, high-yielding fields without the inconvenience of having to stop and unload. A new high capacity elevator allows high speed harvesting of high yielding crops like corn. There is sufficient grain tank capacity to work in high yielding crops and large fields while leaving enough time between unloading cycles.

Header and combine: perfectly matched

Feeding System

Axial-Flow combines and Case IH headers are the perfect match to maximise output potential. High grain quality and smooth harvesting under every condition – that is what the Axial-Flow is built for.

85 mm lift cylinders - allowing 4,000 kg lift capacity
High-strength elevators to easily handle the largest headers
Excellent ability to pick up laid crop and minimise losses
Minimal maintenance means low total cost of ownership

Feeder Enhancements

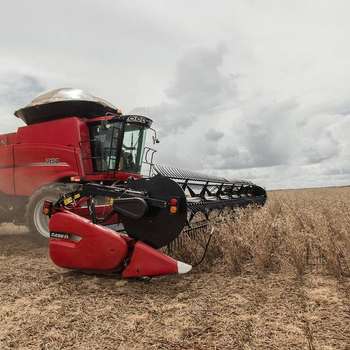

The 6150 and 7150 combines easily manage 10.7 m headers when fitted with the 85mm lift cylinder option. Benefit from a lift capacity of up to 4,000kg.

Feeder with Appetite

Performance of the Axial-Flow combine harvesters begins with the high-performance feeder housing. The rugged feeder with the ability to handle up to 10.7 m headers (on 6150 / 7150) matches the volume requirements of the threshing and separating systems. The service-free hydraulic feeder drive belt tensioner allows higher reliability to let you handle harvesting with ease and confidence.

Single rotor technology

Threshing & Separating

At the heart of every Case IH combine is the rotor. It has been developed to meet the most different harvesting conditions, all around the world. Introduced in 1977, the first Axial-Flow combines stood out from the traditional straw walker design, in that threshing and separation were now performed by a rotor. At that time, the new rotary design was the first of its kind to be mass-produced and represented a giant step forward for farmers, with increased capacity translating to a significant boost in productivity. But while the principle has remained unchanged, with each range development Case IH engineers have utilised the very latest technology available to meet future farming needs.
Axial-Flow 150 Series combines benefit from that same forward thinking, and incorporate some of the very latest concepts not only in threshing and separation, but also in areas from cleaning to unloading, from engine to transmission technology. The end result is a combine range built not just to meet today’s farming challenges – but to take on tomorrow’s too.

The Axial-Flow Advantages

Gentle but thorough threshing protects crop quality bonuses
One rotor threshes and separates – fewer moving parts to worry about
Top quality grain – unbruised and undamaged – strengthens your bargaining power when selling
On-the-go rotor speed and concave opening adjustment: increased daily performance and revenue

Best in Class Grain Quality

Cracked grain is the bane of good sample quality, not only because of the damaged kernels themselves, but also because they can be easily blown out of the back of the combine. With the benefits of Axial-Flow threshing Case IH combines consistently deliver top quality grain samples. Rasp bars are arranged in four spirals around the rotor, for improved threshing and better straw quality in tough conditions.

More top quality grain

The grain-on-grain threshing action of Axial-Flow not only limits grain losses in the field through more effective separation, but also ensures that what goes into the grain tank is clean and high quality crop, adding revenue to your bottom line. There is no high impact conventional drum like that used in conventional or hybrid combines, and the transition from threshing to separation is completely seamless. Centrifugal forces ensure perfect separation even in the most difficult conditions.

Cleaning System and Residue Management

Cleaning System

It’s not just the rotor that makes the Axial-Flow different: the cleaning system also stands out for its efficiency and convenience. It uses the proven chevron shaped CROSS-FLOW FAN that generates a high volume of air. The result is higher cleaning capacity, with sieves adjustable from the cab. Each sieve is able to operate at an ideal stroke length, and the opposing motions of the sieves cancel each other out, resulting in a smoothly operating cleaning shoe. Short straw is virtually eliminated, resulting in a cleaner grain tank sample. A fully-adjustable pre-sieve means Axial-Flow 150 Series combines can adapt to all crops and all conditions.

Cross Flow Cleaning System

Axial-Flow combines have always been acknowledged for thorough threshing and clean crop samples. If there are two things that a combine is rated on, it is how well it threshes, and how well it cleans. Chaff and straw have no place in a grain tank, and that is why Case IH puts a great deal of design thought into creating a combine with one of the best threshing, separation and cleaning systems on the market.

Sharp Blade, Fine Chopping

The position of the counter-knives can be regulated easily with just a lever on the left side. Seven different settings are available for different lengths of straw. A shear bolt protects the counterknives against overloading caused by material backup. For customers that require higher chopping intensity, a row flail chopper is available to satisfy the most demanding conditions.

Unique Integrated Chopper

In chopping mode, the unique integrated chopper lacerates and cuts the straw for fast decomposition before the next planting season. Fixing the counterknives into preset positions in the straw channel allows the chopping aggression to be altered according to the conditions. In windrow mode the counter knife is extracted and the chopper works at reduced speed to place the straw in a neat windrow for efficient baling.

Auto Cleaning Fan Speed Adjustment

The optional cleaning fan speed adjustment can compensate up and downhill up to 11° increasing or reducing fan rpm based on the slope. Cleaning efficiency is guaranteed minimizing losses.

Cleaning System

Cross Flow Cleaning System

Sharp Blade, Fine Chopping

Unique Integrated Chopper

Cleaning System

Cross Flow Cleaning System

Sharp Blade, Fine Chopping

Unique Integrated Chopper

2020_07_afs_pro_700_AccuGuide_Screen_001

AFS AccuGuide

In conjunction with AFS AccuGuide, the mechanical Row Guidance ensures the combine follows the rows in corn crops. It takes the stress out of harvesting at high forward speeds and when using wide headers, thus reducing operator fatigue and boosting productivity, to exploit the combine’s full performance capabilities.

Far more than just fuel savings

Optimized machine usage
Improved comfort by reducing operator demands
Savings on fuel and labor costs
Less time spent in the field
Reduced skips and overlaps improve field efficiency and guarantee an even spread of residue, improving soil health
Perfect work in poor visibility conditions without compromise
Straight tracks and windrows; comfortable for high speed baling
Year-on-year repeatability driving on the same track resulting in minimal compacted field area

Manage your farm, fleet and data remotely

AFS Connect

AFS Connect lets you remotely monitor and manage your farm, fleet and data, allowing you to optimize your performance, productivity and flexibility. Efficiently visualize your equipment with little to no idle time. With all the information at your fingertips, you can successfully manage your operations anytime, anywhere!
