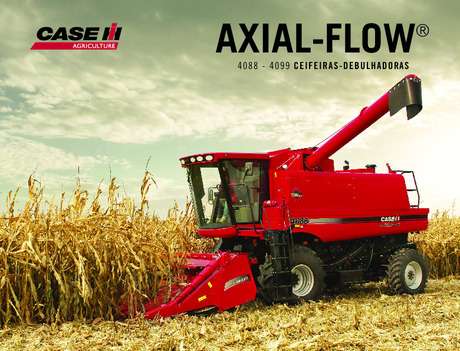

Axial-Flow 4000 Exclusive Series combines exceed anything on the market when it comes to sheer output. These are machines designed to put tonnes in the trailer as fast as possible – in all crops and all conditions.
- Grain tank capacity*
Axial-Flow 4088HD: 6000L, Axial-Flow 4099HD: 6500L
*Volume measured following ISO5687 standard. -
Unloading rate
63 L/sec for the whole Axial-Flow 4000 Series range. - Engine
The 6.7 L FTP engine, regardless the power rating, always ensures a strong torque rise improving the overall machine performance and optimizing the fuel consumption. - Threshing system
Specific rotor configuration for any crop and field condition. - Cleaning system
Just enough air to obtain the cleanest grain sample yet prevent grain loss, whether working in the middle of the field or when manoeuvring in and out of the crop. - Residue management
Chop and spread evenly for rapid decomposition to start off the new season. To preserve straw quality the integrated strawbeater is the right choice. - Lateral tilt feeder
The new lateral tilt function ensures perfect ground contour especially on soybean or everytime a laid crop has to be harvested. - Header
Axial-Flow 4000 Series combines can be equipped with the latest generation Case IH headers which are available in widths up to 6.1 m or 8 rows for corn.
A new dimension in productivity
Designed to tackle the challenges and constraints under which modern farm businesses must work, new Case IH Axial-Flow 4000 Series combines are engineered with innovation to meet the demands of customers requiring fast return on investment using the most advanced and gentle threshing technologies.
Finger always on the pulse
To overcome all these challenges and preserve grain quality, Case IH is constantly working on improving its combines, and invests heavily in research and development of existing products.
Explore the series
- At the heart of every Case IH Axial-Flow 4000 Exclusive Series combine is the legendary 610 mm diameter Axial-Flow rotor. It’s been developed to improve threshing performance in all crops and boost throughput in damp conditions, regardless of crop type or moisture content, and without compromising grain and straw quality.
The grain-on-grain threshing action of Axial-Flow not only limits grain losses in the field through more effective separation, but also ensures that what goes into the grain tank is unbruised and unbroken, protecting top quality and adding revenue to your bottom line. There’s no high-impact conventional drum like that used in conventional or hybrid combines and the transition from threshing to separation is completely seamless.
It’s not just the rotor that makes the Axial-Flow different. The Cross Flow® cleaning system which follows the separation process uses chevron-shaped fins to create a uniform vortex along its axis to generate high volumes of air throughput. Unlike conventional systems, there are no air pockets created – distribution is consistent across the underside of the sieves – and fan speed is fully adjustable to cater for finer-seeded crops. The result? Higher cleaning capacity.
- Perfectly in line with the Axial-Flow family, the 4000 Exclusive Series cab delivers an amazing feeling of space and comfort: exactly what’s needed to guarantee optimum performance even in the longest working days. More then 3.74 m2 of glass provide unrestricted panoramic view and excellent visibility of the header, the crop flow into the feeder and unloading auger, while sitting comfortable on your suspended and individually adjustable seat. The perfect working environment is guaranteed by high air filter capacity, standard heating and optional air conditioning.
Designed to guarantee the maximum standards in terms of productivity, efficiency, and versatility.
