Farmall JXM

2 MODELS FROM 80 HP TO 90 HP.
The new Case IH Farmall JXM Series tractors deliver the power and performance that the owners expect, all featuring the distinctive Case IH premium design. Farmall JXM tractors are best in class in their farming segment while the straight rear axle design is perfectly tailored for transport operations. Depending on the need, Farmall JXM is available with 2WD or 4WD front axle versions and features a wide range of transmission options.

MORE POWER. MORE OPTIONS. MORE COMFORT.

Farmall JXM tractors are designed for compliance without compromise. The 80 and 90 horsepower models will provide all the power you need for rough spots and tough jobs, as well as better engine performance and fuel economy. Outstanding horsepower in its class to handle tough conditions: this is what we at Case IH mean by productivity.

Explore the series

  • The new Farmall JXM tractors are powered by the proven 3.9 L turbocharged and intercooled four cylinder Tier 3 engine which offers class leading torque and provides reliable power, day in, day out. Its simple and robust design results in trouble-free, long-life working, and reduces maintenance requirements.

  • The Farmall JXM Series has an amazing array of transmission options to create the perfect tractor for your operation and needs. Heavy-duty, compact frame, durable components and plenty of power to the PTO turns the daily work to pleasure. Optional 540/540E rpm and 540/1000 rpm PTO speeds are in the offering in addition to the 540 rpm standard PTO speed, while ground speed PTO is in the base equipment for all PTO options. Farmall JXM tractors are available with a wide choice of transmissions so that it is easy to select the right specification to meet your requirements whereas both synchro shuttle and power shuttle forward/reverse options are available, 8x8, 12x12, 16x16 or 24x24 with splitter and 12x12 or 20x20 with creeper gear box selections are all in the offering based on your application requirements.

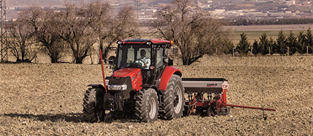

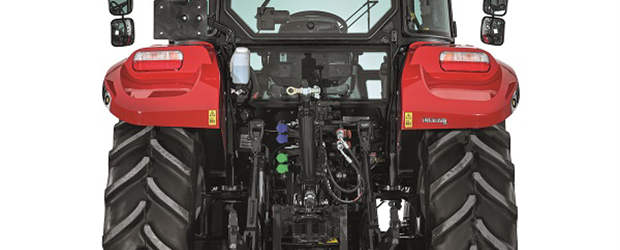

  • The Farmall JXM tractors are tailored for efficient implement work and the hydraulic system guarantees the best functionality. With its robust design, heavy-duty frame and reliable components, your Farmall JXM will deliver outstanding maneuverability and stability in the toughest operations. The strong rear 3 point hitch is capable of lifting and handling implements of up to 3,500 kg at ball ends. Depending on the nature of your work, separate levers allow the setting of hitch position and draft control for soil engaging implements, or any mix of the two.

  • Thanks to its proven and durable design, the heavy-duty rear axle, transmits high power and torque efficiently. Its special architecture also allows a longer brake disk life for extended operation safety.

  • A flat deck ensures that the controls are positioned for the best operator ergonomy. The suspended brake and clutch pedals are also designed for top operator comfort.

Specifications

Engine

Number of cylinders
Type
Emission Level
Capacity (cm³)

Engine Performance

Standard Transmission

Optional Transmission 1

Optional Transmission 2

Optional Transmission 3

Power Take Off

Front PTO and hitch

Drive and Steering (Driveline)

Hydraulic System

Case IH Services

Case IH Services
