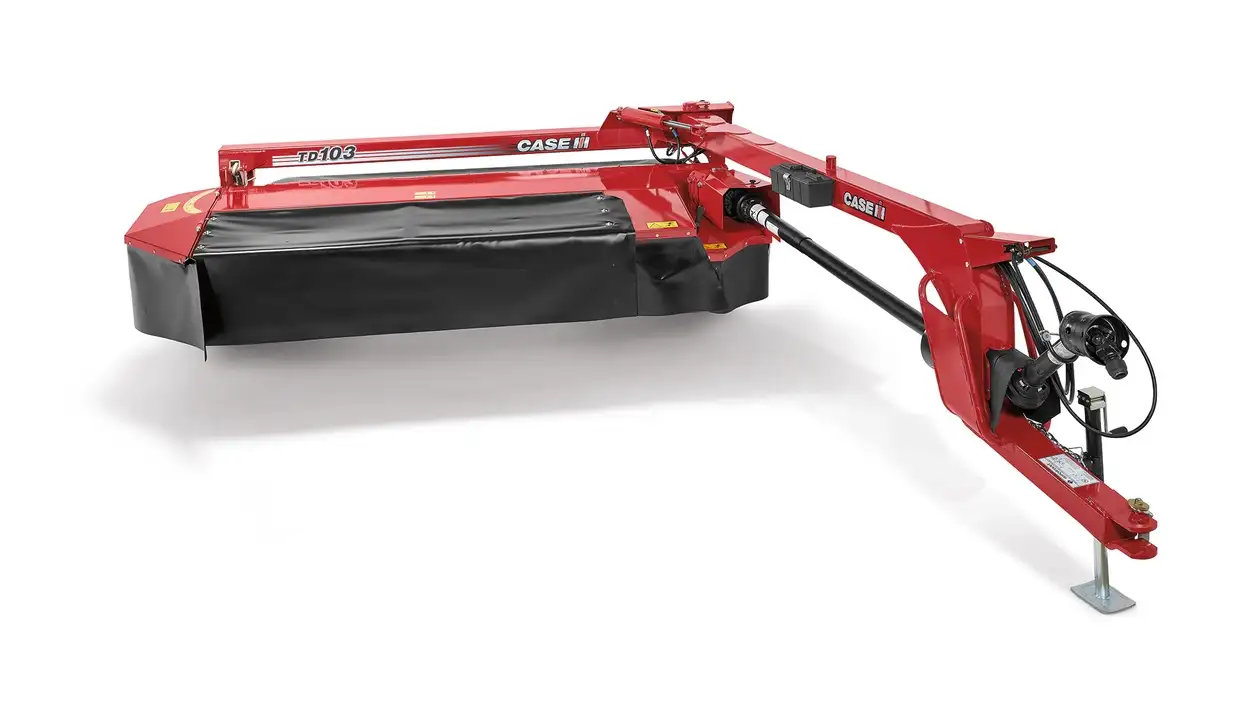

Pull-Type Disc Mowers

Versatility and Convenience

• Quick-change knives cut change time in half – the provided tool makes no wrenches necessary
• Crop deflector shields behind each end of the cutterbar direct cut crop into a wide swath inside the tire path
• Two end discs co-rotate to provide a narrower swath
• Adjust swath from 1.5 m–2.4 m
• Left cutterbar shield is hinged for easy service access

Unmatched reliability

• Shock protection to minimize repair expense
• Discs protected from internal gear damage by the drive hub

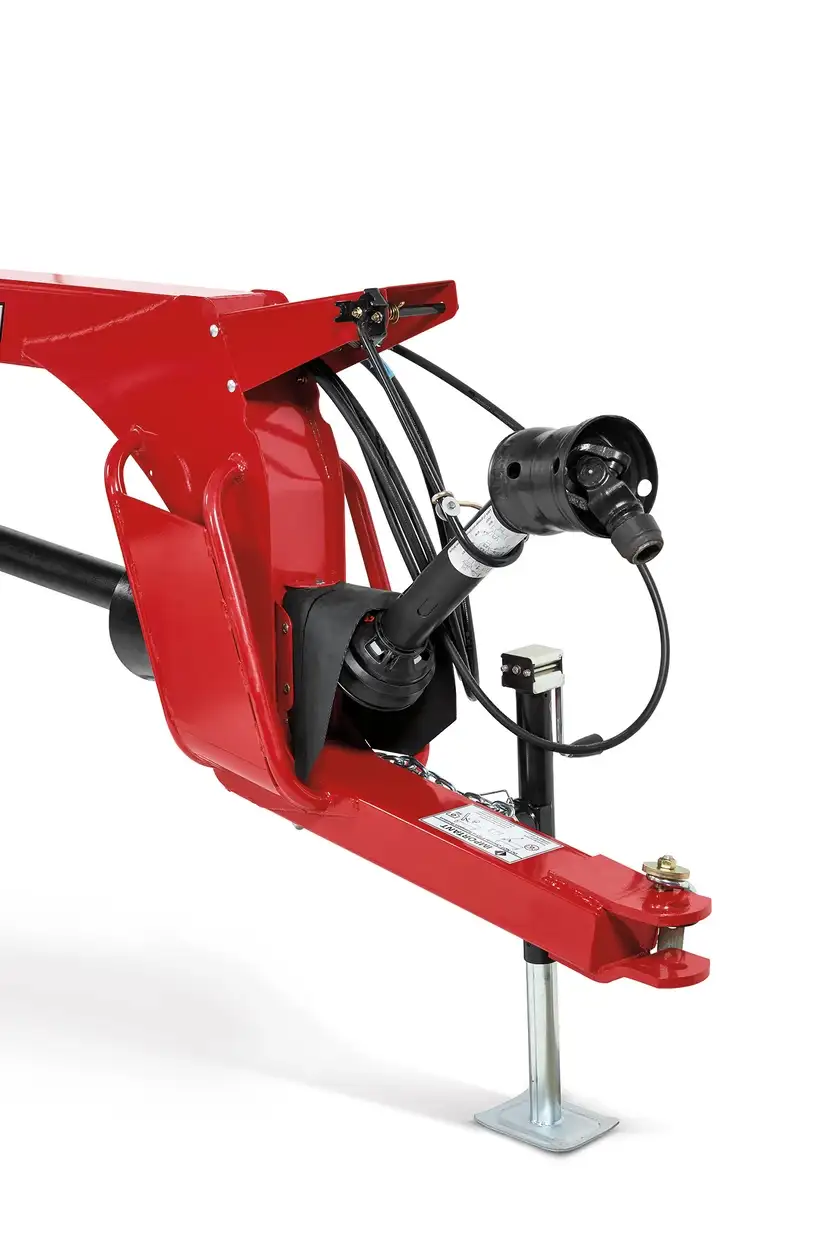

80-Degrees Constant Velocity Joint

• Overload protection is standard
• Primary PTO uses an 80-degree constant velocity joint at the tractor end to permit tight turns, reduce noise and extend service life
• Standard tractor tire bumpers protect PTO driveline and tractor tires

Tilt Adjustments

• Tilt is adjustable from 2–10 degrees using a mechanical turnbuckle

Attaching and detaching the mower from the tractor is easily accomplished with a simple clevis hitch. The TD103 can be pulled by lighter-weight tractors, as weight is pulled versus carried on a 3-point hitch.

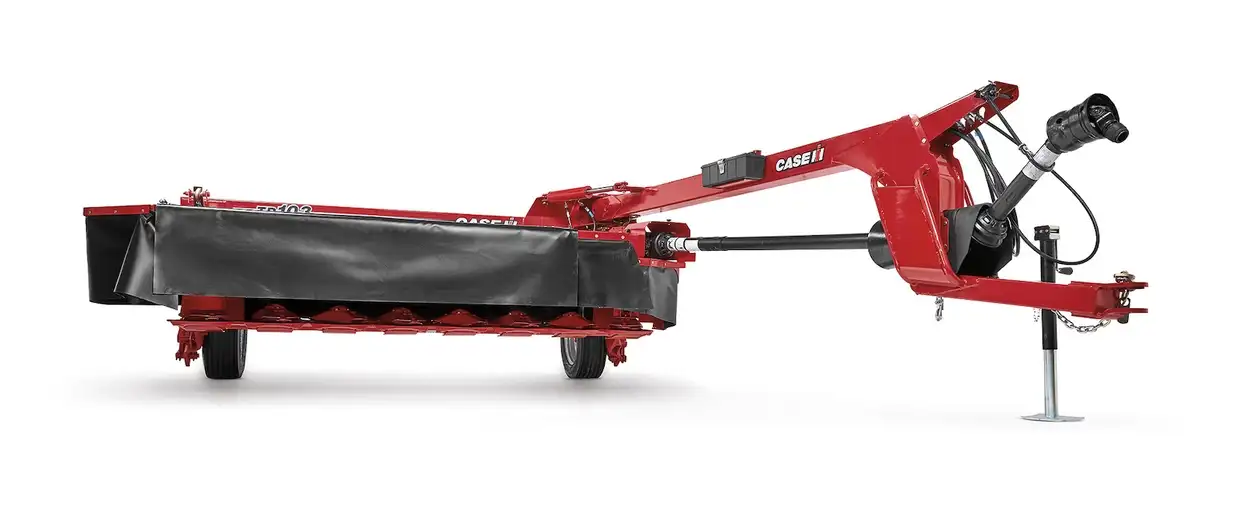

• Transport width is just 3,300 mm when end shields are folded
• Removable parking jack stand is stored on top of tongue assembly
• Hydraulic tongue swing cylinder powers the unit from transport to operating position
• Has a 305-mm-minimum cutterbar ground clearance in transport position
• Hinged right-side cutterbar shield folds up for narrow transport
• Safety tow chain standard
• Low transport height eliminates the need for implement lights
