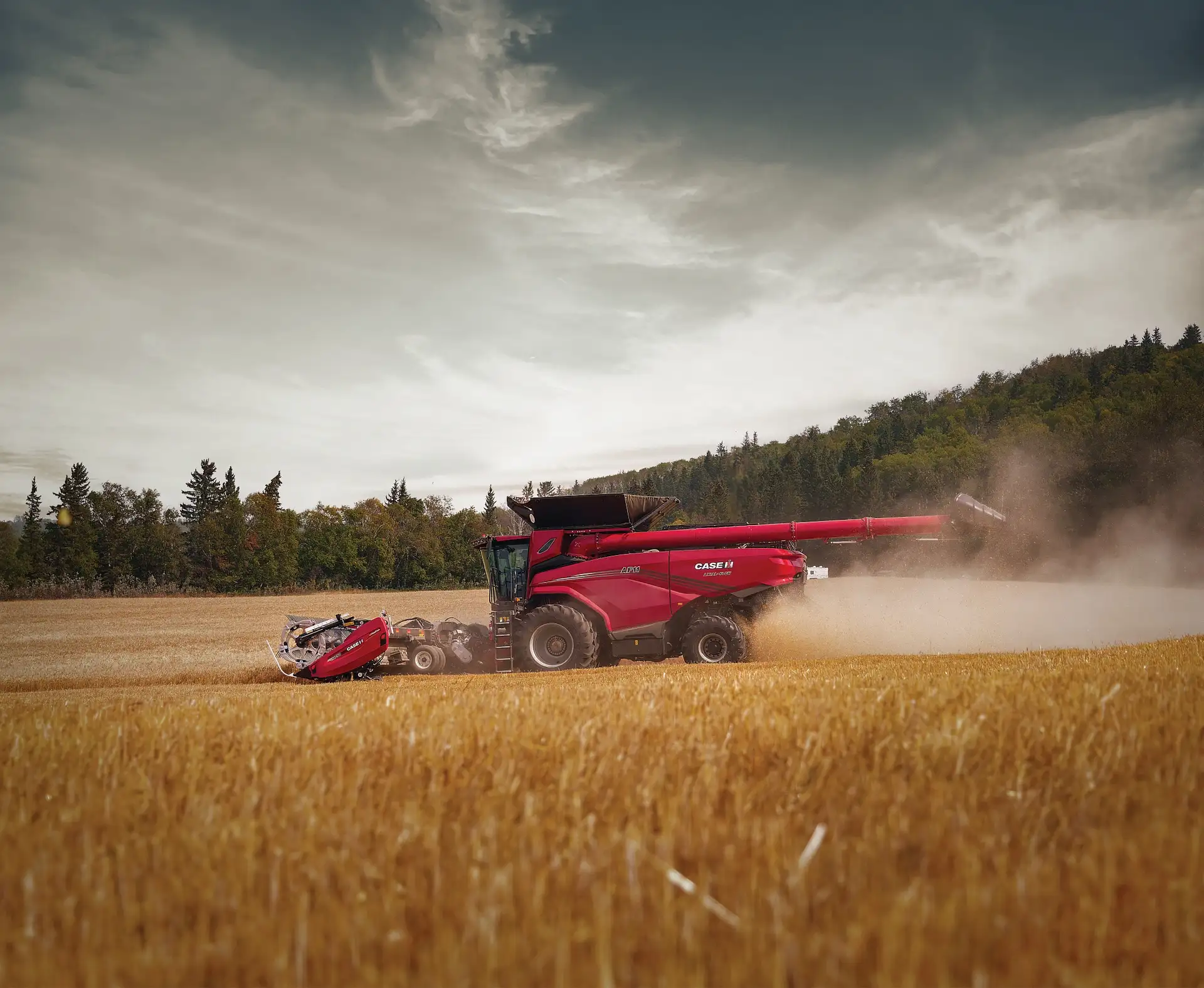

AF Series Combines

The AF series offers the largest grain tank capacity and highest unload rate in the industry to get more done in a day. Improve overall operational efficiency by harvesting longer and further in a field pass and then unload the 567-bushel grain tank in 100 seconds* at 6.0 bushel/second unloading rates.

AF11

• 567-bushel grain tank
• 6.0 or 4.5 (optional) bushel-per-second unload rate

AF10

• 567- or 455-bushel (optional) grain tank
• 6.0 or 4.5 (optional) bushel-per-second unload rate

AF9

• 455- or 567-bushel (optional) grain tank
• 4.5 bushel-per-second unload rate

*Unloading rate is affected by crop type, density, and moisture. Results may vary.

The proven Axial-Flow combine technology gets an upgrade. What hasn’t changed is the rotor technology that has set the standard for fast, efficient harvesting with unprecedented grain quality.

Choose from the high-capacity, AFXL2 dual rotor system of the AF11 or longer single rotor, the AFXL, available in the AF9 or AF10.

Anyone can set up a free FieldOps account. Producers with qualifying connected Case IH equipment can take advantage of all the features FieldOps offers, leveraging the power of data to make every minute count.

And with Connectivity Included for qualifying machines*, there are no subscription or access fees for the lifetime of your equipment’s modem.

Gain seamless access to the following:

• Agronomic Data: Unlock the power of agronomic insights to boost yield potential. Through data analysis, fine-tune your crop management practices for peak performance, ensuring you get the most out of every acre.
• Machine Data and Telematics: Gain unparalleled access to real-time machine data and information to minimize idle time and streamline operations.
• Proactive Dealer Support: Maximize runtime and in-field productivity with customizable prompt alerts on identified or potential issues to minimize downtime.

_{* Visit our Connectivity Included Eligibility page to learn more about qualifying machine models, connected equipment and modems.}

The most advanced harvesting automation system available, Harvest Command comes standard on all AF series combines. Each automation mode prioritizes different harvesting outcomes — from grain quality to grain savings to throughput. You choose the mode of automation to match your harvesting goals. Set the crop type, maximum operating speed and power limits and Harvest Command handles the rest. Choose from four modes of automation to fit your operation:

• Performance: Maximize grain savings and grain quality while optimizing throughput.
• Grain quality: Maximize grain quality while saving grain and optimizing throughput.
• Max throughput: The operator can maximize throughput while automation adjusts combine settings to save grain.
• Fixed throughput: The operator can fix the machine throughput and the machine will adjust to save grain and maintain a quality sample.

The Pro1200 display brings a new level of productivity and connectivity to harvesting. AF Series combines come equipped with two of these displays, mounted within easy reach. With seven nameable runscreens on each display, the dual Pro1200 displays allow the operator to view yield and moisture information, input Harvest Command settings, set up autoguidance, view yield maps, and share real-time data between machines and with remote managers or consultants, with fewer button pushes, allowing the operator to concentrate more on harvesting.

The Pro1200 display features an anti-glare screen, Bluetooth^® capabilities and a familiar tablet-like interface.

Case IH FieldOps is a comprehensive platform for all your equipment, no matter the brand. The new all-in-one FieldOps mobile app stores information from your entire connected fleet, providing one streamlined platform for all of your equipment. This cross-fleet compatibility puts all your equipment information in one place for all users.

Get instant access to real-time data and insights, including real-time monitoring, precise equipment location and duty status, estimated job completion time, and more.

Proactively monitor machine health, quickly spot high-priority issues, and receive customized notifications in an instant. Data can be viewed for any specific operating parameter over the course of a season, or over several seasons, to enhance operational efficiency.

The AF series combines feature a two-speed grain elevator that can either be operated at 8,000 bu/hr or a lightning-fast 10,000 bu/hr, without sacrificing grain quality.

• The grain elevator is equipped with molded elevator paddles to move more grain with less damage.
• The clean grain elevator is an all-belt drive system, reducing maintenance costs and delivering efficient power through a constant tensioning system.

Industry-leading cleaning capacity starts with an active and dynamic cleaning system that utilizes 100% of the cleaning system 100% of the time, whether on level or unlevel ground up to 13-degree slopes. The redesigned Cross Flow Plus cleaning system is 35% larger than previous models, to accommodate higher crop throughput.

• A 13% larger, hydraulically driven Cross Flow cleaning fan provides high, uniform air flows at lower overall fan speeds.
• A four-sieve cleaning system allows for greater cleaning system capacity.
• Two clean-grain cross augers located strategically within the cleaning system convey high volumes of clean grain to the clean grain elevator. Single point yield calibration provides increased accuracy.
• Grain quality imaging is available on the Pro1200 display which provides a real time look at harvested grain, enabling the operator to fine-tune and confirm Harvest Command automation settings.

Field preparation for the next crop begins at harvest, and the AF series combines’ residue management system has been agronomically designed to meet the needs of any crop type and yield. With today’s crops you need a matched system that can chop and spread or windrow high volume residue evenly. With the AF series you can:

• Take advantage of radar spread automation to adjust residue spread for a uniform spread pattern, even in windy conditions

Use a residue spread pattern more than 50 feet wide to accommodate today and tomorrow’s larger headers

• Adjust the performance of the residue management system from the cab, such as chop quality and chop/swath control
• Customize the residue management package to fit your operation:

MagnaCut integral chopper for standard chop

• Simple Disc Spreaders
• Advanced Horizontal Spreaders

MagnaChop high hood-mounted chopper for fine chop

• Advanced Horizontal Spreaders

High-Capacity harvesting requires state-of-the-art precision. Case IH precision technology offers a wide array of solutions to meet this demand.

• RowGuide Pro™-All new RowGuide Pro combines GPS with advanced sensor technology for seamless row tracking, even through breaks in standing corn, like waterways. Enhanced steering ensures increased accuracy while moving through the field, keeping your harvest on-row and on-target. For the operator, it means less stress in the field and more time focusing on other aspects of your harvest.
• AccuSync® - Be more efficient while getting more accurate real-time data. AccuSync allows multiple combines to share guidance lines and coverage data.
• AccuGuide™ - AccuGuide is a fully integrated autoguidance system that allows you to achieve sub-inch level accuracy and maintain accurate row positioning across different types of terrain and field conditions.
• Yield and Moisture Monitoring - Single point yield calibration provides greater, increased accuracy.

The cab of the AF series is an ergonomically-designed command center. Two Pro 1200 Displays are strategically mounted so operators can easily set up navigation, monitor harvester functions and share data remotely. Additional USB ports, power outlets and cell phone holder allow even more flexibility.

To keep you comfortable in all weather, the cab comes with upgraded climate control, optional heated/cooled/massaging seats and a portable electric refrigerator.

The cab is designed for high visibility with unobstructed sight lines, 360-degree LED lighting, and optional 360-degree cameras for you to see more at all hours.

The AF series is engineered with built-in reliability, minimizing the time spent in the shed. The Power Plus CVT drive combine drive system features a low-maintenance design. Critical service areas have been moved to make them more accessible and components upgraded to ensure long life.

The new C500 Series corn heads have been designed to match the capacity and power of the AF Series and recent model Case IH combines. These headers move through fields with ease, handle demanding harvest conditions, and provide exceptional durability. Four models are available in varying row widths, from the 8-row C508, 12-row C512, 16-row C516 or the 18-row C518 (narrow row only), in chopping and non-chopping configurations.

These new corn heads pick cleaner and harvest faster with easier servicing and maintenance to maximize your profitability and uptime.
