30-50 ft. (9.1-15.2 M) Width

FD2 PLUS Series FlexDraper by MacDon

The FD2 PLUS isn’t just a FlexDraper®—it’s MacDon’s most advanced and most flexible header yet with more than 2 inches (52mm) of extra flex at the cutterbar. The FD2 PLUS hugs the ground tighter, reaching deeper into low spots and scooping up every last bit of available crop.

Find a Dealer

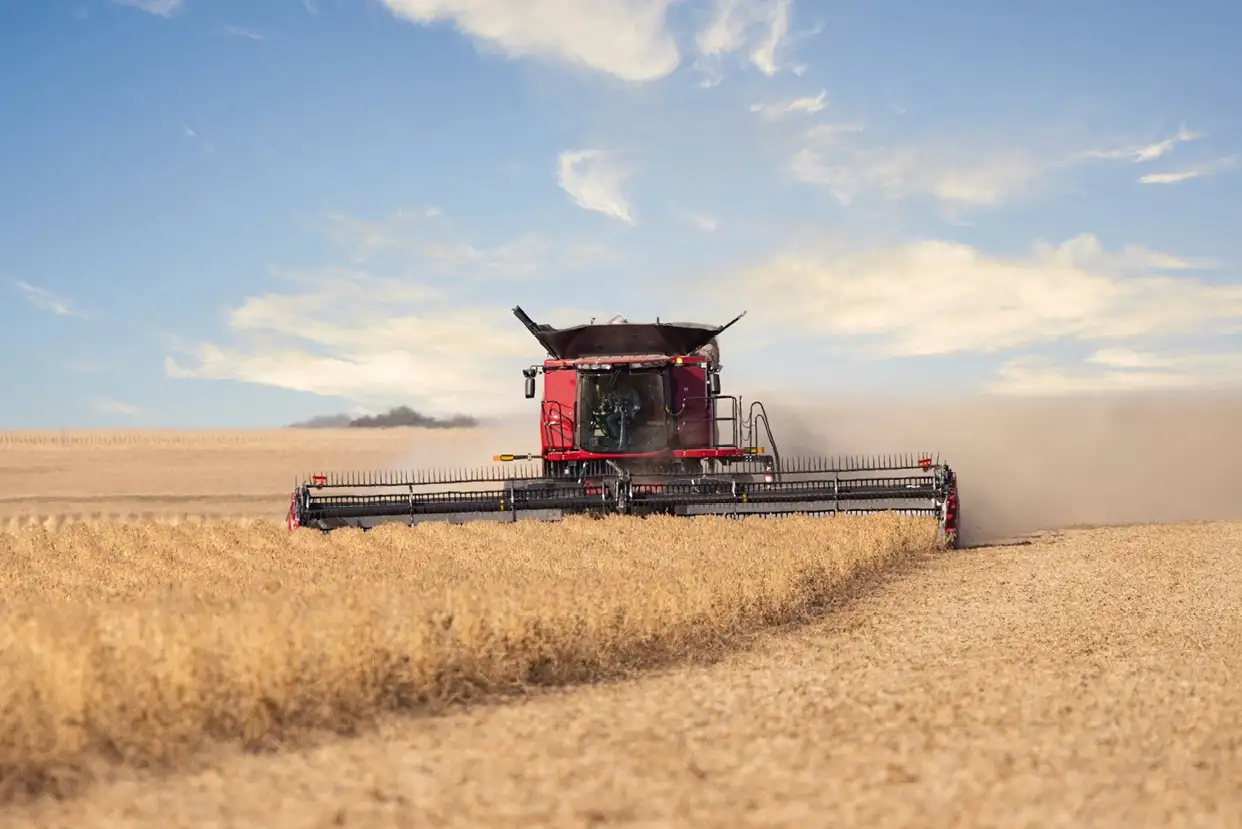

Case IH Axial-Flow combine harvesting a golden wheat field with FD250 header under a blue sky.
Cutting Widths

30-50 ft. (9.1-15.2 M)

Knife Width

3 in.

Reel Speed

0-67 RPM

Reel Diameter

65 in.

FD2 PLUS Series FlexDraper by MacDon



    Find a Dealer

    Capture Your Yields With Our Most Flexible Header Yet

    The FD2 PLUS features a full-length flexible cutterbar for exceptional ground tracking while maintaining the majority of the reel-to-cutterbar relationship. Designed for producers who grow low-podding crops in highly uneven or hilly fields or those who need to navigate challenging terraces and waterways.

    The feather-light float response of the flexing cutterbar instantly adapts to ground condition with the option to switch from full flex to a completely rigid frame.

    With six model options from 30-50 ft. widths and 50-inch deep drapers, the FD2 PLUS series ensures efficient crop delivery to the feederhouse to capture what’s in the field.

    Explore Features

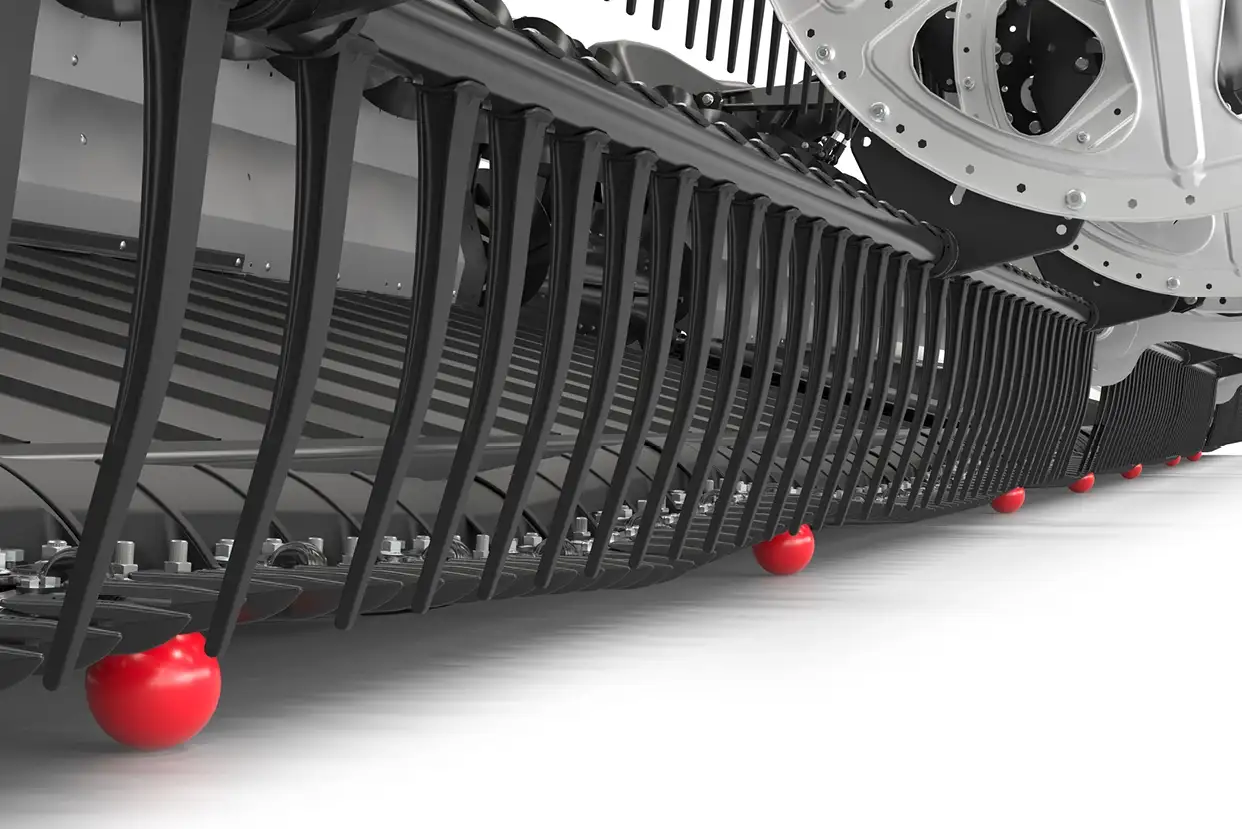

    • Close up of Case IH model FD2Plus cutting blades red spheres

      Max Flex for An Extremely Close Cut

      The FD2 PLUS features a simple yet highly reliable leaf spring flexing cutterbar, delivering a feather-light float response that instantly adapts to ground conditions. This system works in tandem with our flexing frame and MacDon’s Active Float System which supports up to 97% of the header’s weight. Together, these three proven mechanical systems provide a reliable instant float response, allowing the FD2 PLUS to cut extremely close to the ground without pushing dirt. A 50-foot FD2 PLUS FlexDraper features 17 inches of wing flex, plus an additional 24 inches of lateral tilt, providing a total flex range of up to 41 inches on either end, independent of the combine.

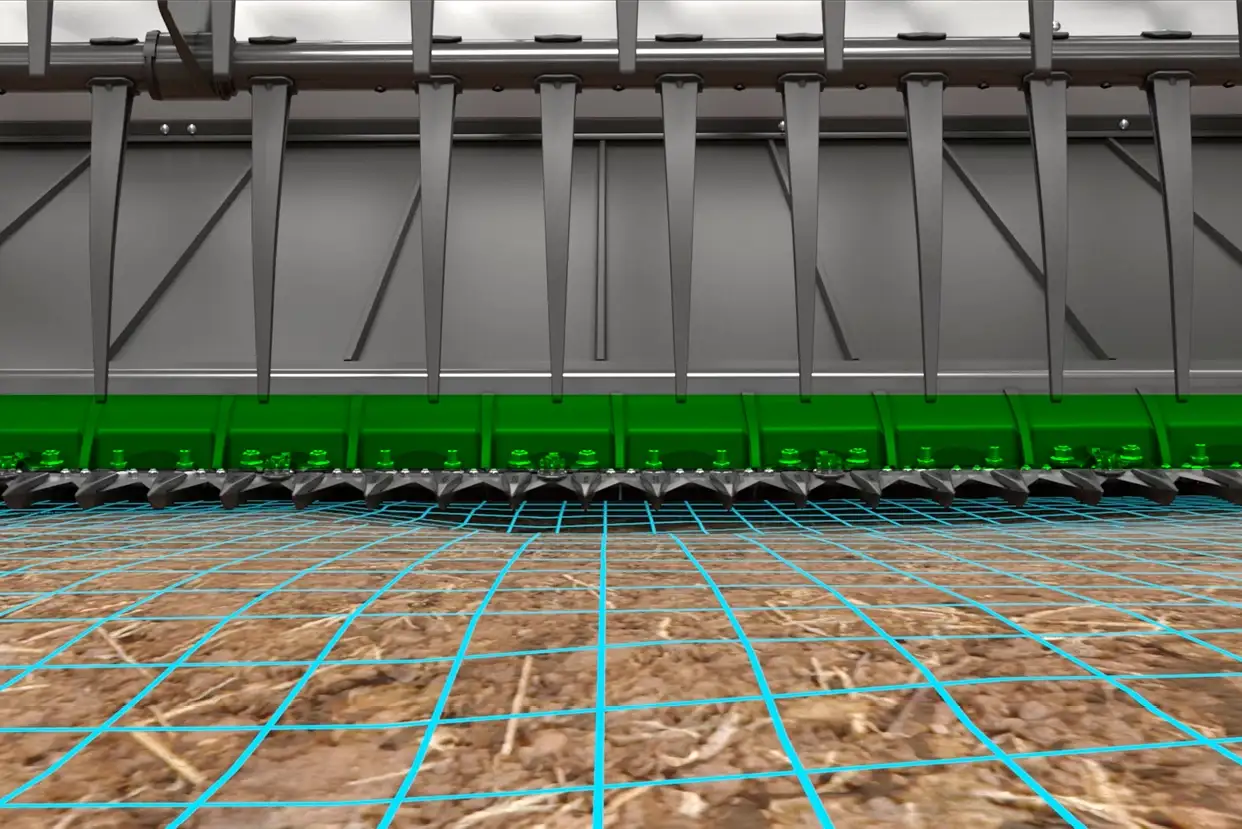

    • Illustration of Case IH Model FD2 PLUS cutterbar float critical gap.

      Ensure Delivery of Cut Crop to the Feeder

      The FD2 PLUS’ tight reel-to-cutterbar relationship ensures that cut crop reaches the drapers and flows smoothly into the combine. This close alignment is critical for capturing low-podding crops, allowing the reel fingers to lift and guide the cut crop onto the drapers.

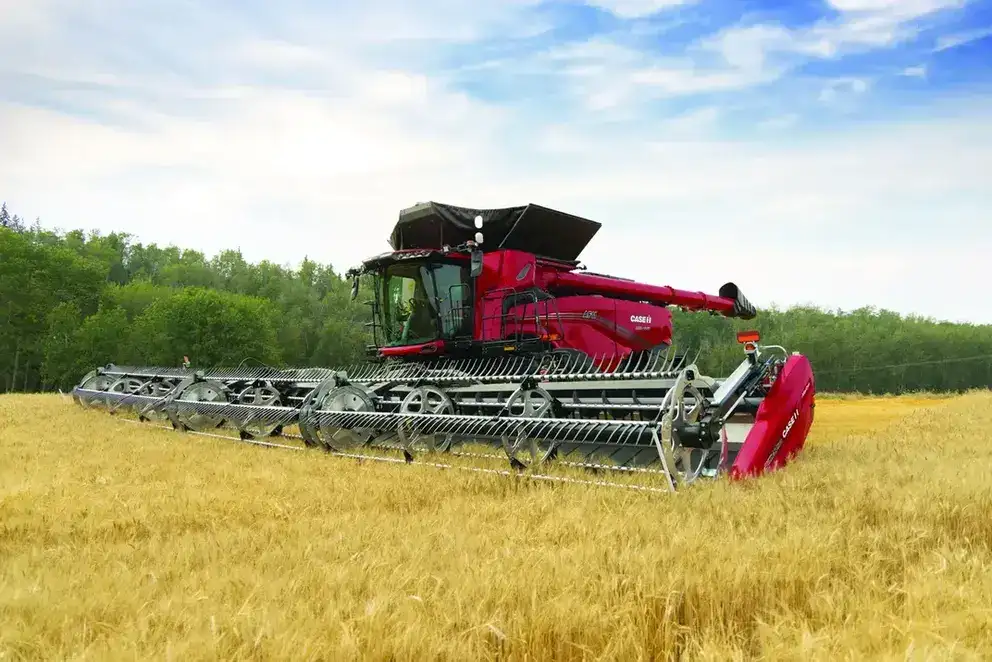

    • Case IH model AF10 FD240 combine harvester works in a wheat field under a clear blue sky.

      Maximize Performance Across Multiple Crops

      With just a few easy lockouts, the FD2 PLUS transforms from a fully flexing frame and cutterbar to a completely rigid unit. Simply locate the leaf springs, apply leverage with the provided lockout tool to lift them, and then insert a lock block.

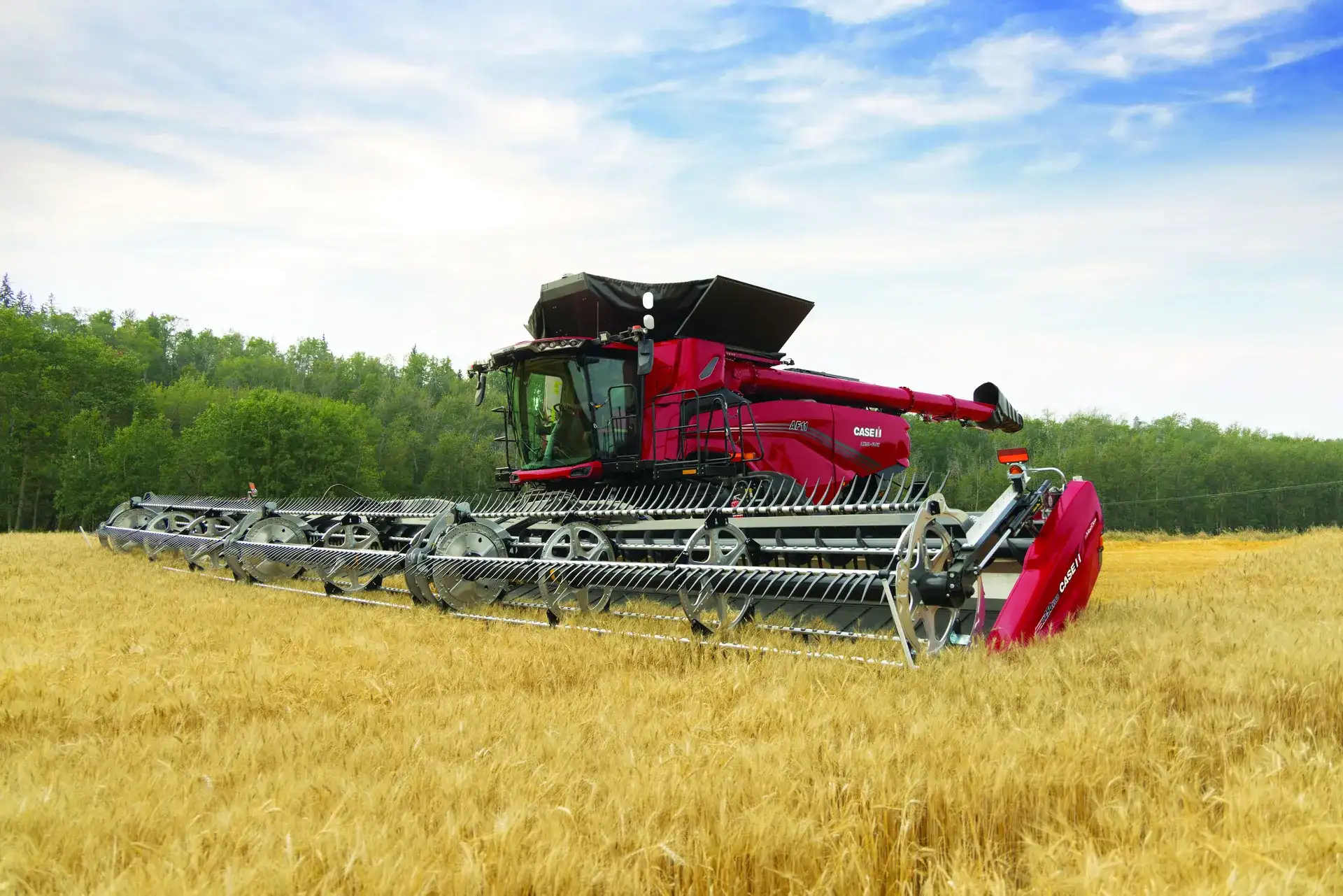

    • Case IH red combine harvester works through a golden wheat field under a partly cloudy blue sky.

      Options to Meet Your Needs

      The FD2 PLUS is available in 30-, 35-, 40-, 41-, 45-, and 50-foot widths. The FD2 PLUS comes standard with a double knife drive in all widths except 30-ft. A triple reel is standard for 40-, 45-, and 50-foot widths.

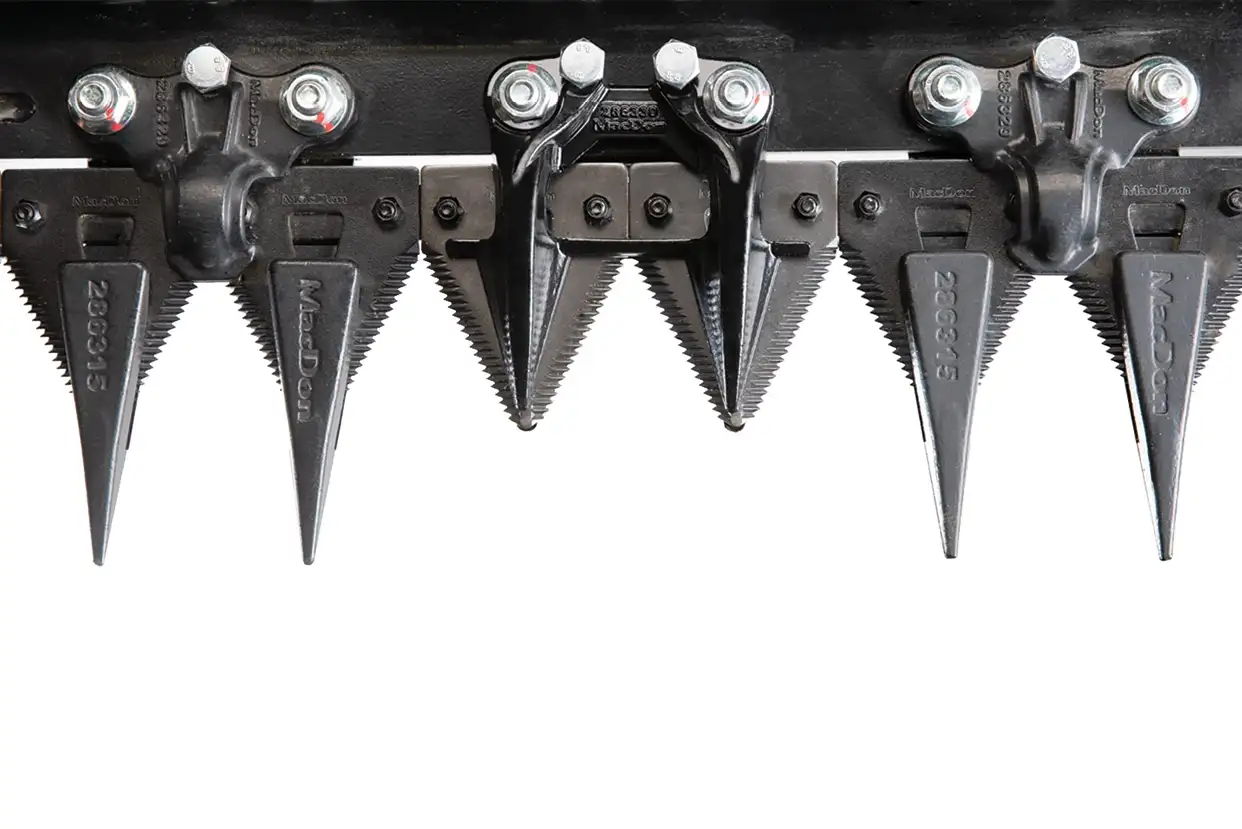

    • Case IH close-up of industrial metal cutting blades with sharp, triangular teeth and bolts against a white background.

      Cut Optimization

      The FD2 PLUS is equipped with the ClearCut High-Speed Cutting System which delivers a clean cut at higher speeds to maximize grain capture. The improved knife drive features a robust output shaft, direct hydraulic drive, and a flywheel for smooth operation. A longer blade and optimized knife shape provide you with faster, cleaner cut quality, even when running at high ground speeds. Fitted bolts make in-field knife section replacement quick and easy.

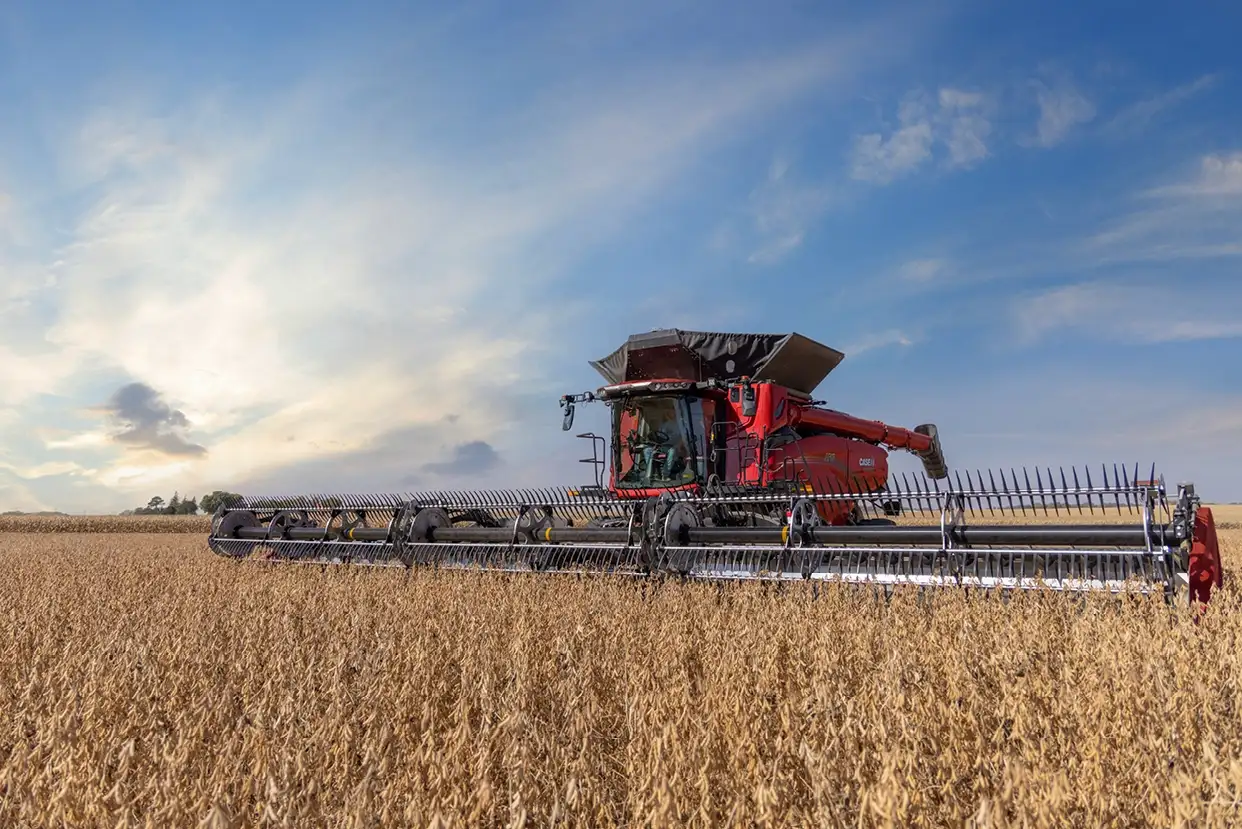

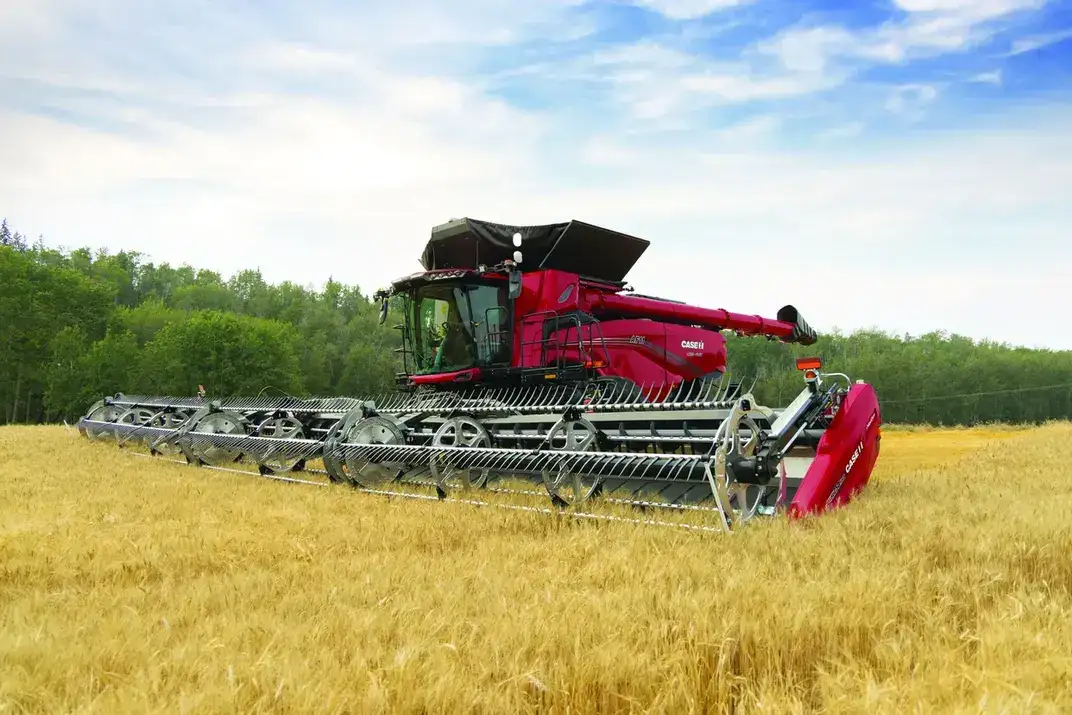

    • A Case IH combine harvester moves through a golden wheat field under a clear blue sky.

      High-Capacity Feeding

      The FD2 PLUS feeding action can be custom configured to match any Axial-Flow combine's performance with combine-tailored speed control and customizable auger flighting.

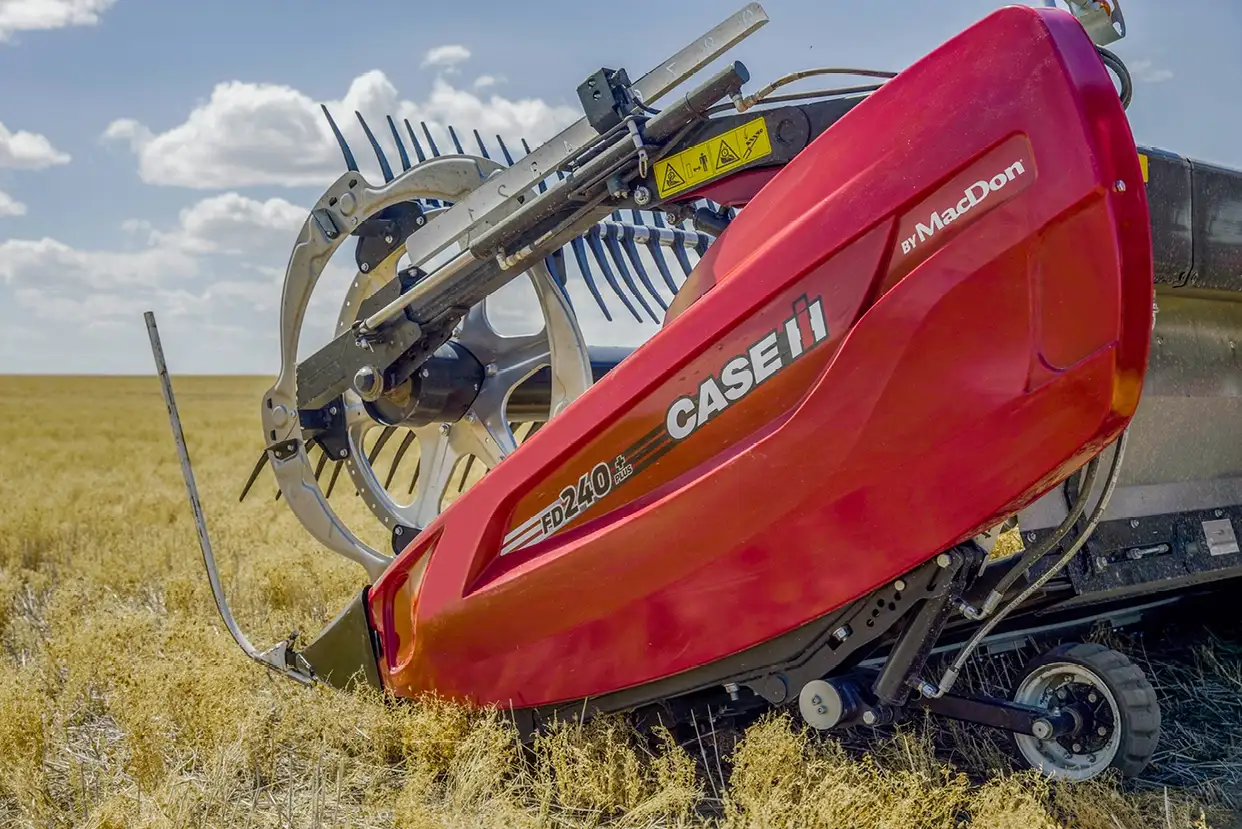

    • Red Case IH FD240 grain header in a golden field under a blue sky with clouds.

      Set-It-Right Multi-Tool

      The Set-It-Right Multi-Tool is all you need to get the FD2 PLUS dialed in for harvesting success. Conveniently stored onboard the header, the multi-tool lets you make the following adjustments:

      • Set and adjust the header flex and float.

      • Set the ShatterGuard reel positioning.

      • Adjust the reel finger positioning and reel drive chain tension.

      • Add and remove end divider cones.
