Grain Heads

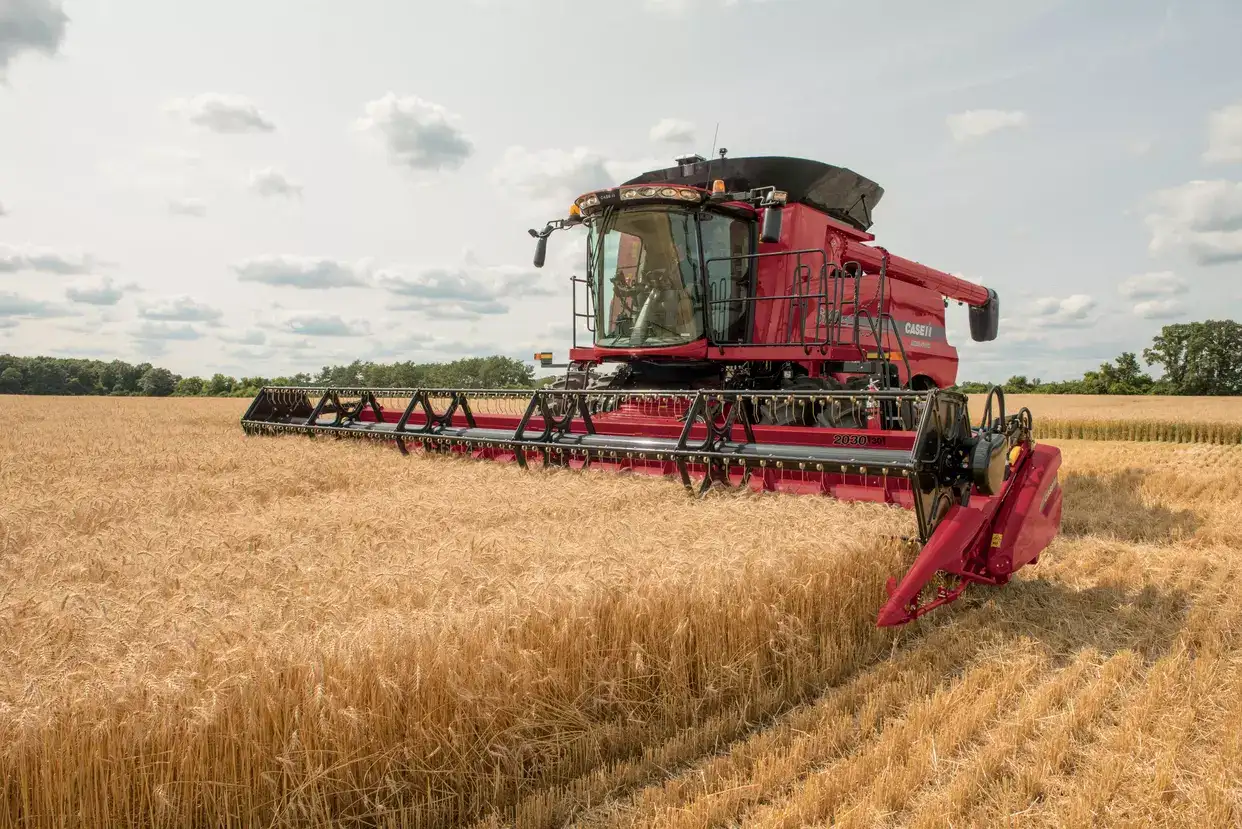

The Case IH rigid auger grain head is able to keep up with today’s high horsepower combined with its faster harvest speeds and the flexibility to handle a variety of diverse crop conditions – from downed and tangled crops to uneven terrain.

Grain Head
Cutting Widths
17 - 30 ft.
Reel Diameter
42 in.
Auger Diameter
26 in.
Auger Speed (standard)
149 RPM

Grain Heads

Handle a Wide Variety of Crops

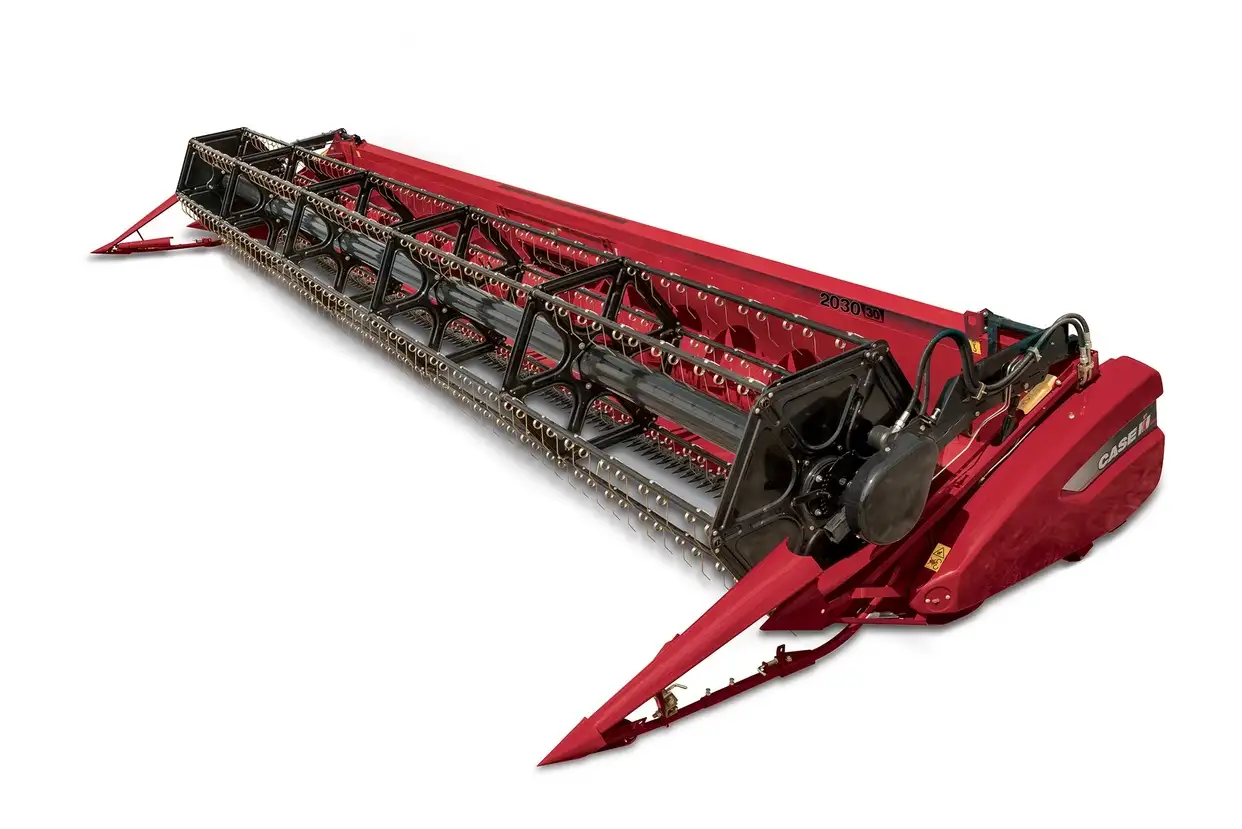

Designed to exceed in many conditions, the Case IH 2030 rigid auger grain head is ready to harvest more of what you grow. Features include a sturdy frame and cutterbar design and a pick-up reel that's designed for even feeding.

Explore Features

  • Heavy Duty, Reliable Frames

    The heavy-duty, rigid frame includes two reinforced strengthening webs for maximum durability.
    • Header Hook-up- Easy-latching header hook-up with single-point hydraulics, dedicated electrical connector and 60˚ free-rotation PTO shafts.
    • Skid Shoes- Double skin design assures long term durability and reduced ground pressure for optimized floatation.
    • Dividers- Short, adjustable dividers are standard with available long, folding dividers are optional.
  • Increase Grain Savings and Grain Quality

    The Case IH 2030 six bat reel is designed to gently engage then lift the crop and move it over the cutter bar and across the auger floor to be conveyed by the auger. This design ensures proper feeding and cutting, increasing both grain savings and grain quality.

    The six bat reel features a large 107 cm diameter with anti-wrap closed end shielding. Multi-coiled tines are offset for efficient pickup operation. The tines are bolted on for easy replacement.

    A powerful reel drive is hydraulically driven by gear reduction. The reel speed is automatically controlled and linked with ground speed.
  • Cut More of the Crop You Grow

    A self-sharpening, over-serrated knife is standard. Tough double-cast steel fingers are designed with maintenance-free internal knife guides and knife sections are bolted.

    A complete optional spare knife is stored in the rear of the header frame. A apare knives section is located under the left hand shield for quick and easy replacement. The cast iron tensioning pulley maximizes belt wrap to improve durability and strength.
  • Ensures Proper Feeding and Cutting

    Auger Tines
    Mounted evenly across the full width of the auger, 16mm diameter retractable tines with synthetic guides ensure a quiet operation. Large inspection doors make maintenance simple. Optional High Abrasive Guides are available for tough harvesting conditions.

    Auger Base
    The auger is driven with a heavy duty chain from the header main shaft and protected from foreign objects by a radial pin slip clutch. The standard auger speed is 149 rpm; an optional slow-down sprocket reduces speed to 135 rpm. The auger is a large 26 in. diameter with 16 in. diameter center tube and 5 in. deep flights.

    Crop Lifters
    The crop lifters lift down crop and are stored in a convenient location on the right hand side of the header.
