30 TO 60 FT

Precision Disk Air Drills

Whether you’re equipped with tow-behind, tow-between or mounted seed tanks, get high-capacity air seeding with consistent seed placement and better seed-to-soil contact with Case IH Precision Disk air drills.
Case IH Precision Disk Air Drill
Toolbar Width

30 - 60 ft.

Transport Height

13 - 15 ft.

Transport Width
12 - 18.7 ft.
Tank Capacity

110 to 140 bu.

Precision Disk Air Drill Family

Make the Most of Your Season, Soil and Seeds

Case IH Precision Disk air drills are designed to help you work more efficiently, so you can be more productive — no matter the residue conditions you’re dealing with or crops you plant. Precision Disk air drills are a versatile seeding tool to help you seed a broad range of crops more consistently and effectively. Plus, Precision Disk air drills allow you to seed at higher speeds and spend less time on daily maintenance.

Explore Features

  • Introducing AFS Furrow Command for Precision Disk Series Air Drills

    AFS Furrow Command™ for Precision Disk Air Drills increase the accuracy and versatility you need to get the most out of every seed in a variety of crops and conditions. AFS Furrow Command helps operators consistently maintain seed depth, regardless of terrain to boost productivity and yield potential — and make the most of every moment in the field.

  • Downforce Automation with AFS Technology

    AFS Furrow Command, available for Precision Disk 550T, 550, and 500DS, helps you make informed decisions on setting downforce via gauge wheel sensors that provide in-cab feedback. You can also adjust downforce automatically while traveling through the field, allowing the drill to effortlessly deal with changing field terrain and soil conditions and also maintain positive contact with the ground. This ensures the row unit is always achieving its set depth to optimize your fields.

    With AFS Furrow Command, you can:

    • Simplify your operation – There’s no need to change settings for different conditions to achieve seed depth consistency.
    • Improve depth control - Adjust the hydraulic pressure for each frame section independently.
    • Reduce component wear – Feedback from the system allows you to minimize the force required to maintain gauge wheel contact with the ground.
  • Gain Efficiencies and Improve Yield Potential

    Through our Customer Driven Product Design (CDPD) process, Case IH has engineered an agronomically designed row unit that cuts residue; opens a high-quality, uniform seed trench; delivers the seed perfectly; and closes the trench better than any row unit in the marketplace. With the Precision Disk 500 double shoot (DS) air drill, you can add to those benefits saving time by seeding and fertilizing simultaneously. The Precision Disk 550 series air drill makes further advances to the parallel-link row unit design, offering greater seed placement accuracy than ever before.
  • Convenience and Durability in a Rugged Frame Design

    Main Frame Design
    Our main frame utilizes wall tubes to support the row unit carrying the subframe The center main frame’s tubes are oriented in a "V" shape to distribute the weight of the main frame, adding additional support and stability during transport. The front caster wheels travel in a different path than the rear caster wheels, providing exceptional weight distribution and reduced ground pressure for even emergence while allowing for a smaller transport envelope. Nearly every part of the machine is powder coated to provide a superior paint coating that is resistant to impacts and paint-fading UV rays and helps prevent corrosion.

    Wing Frame Design
    A three-section frame drill with single-fold wings provides narrow transport. When in field position, the wings can flex 15 degrees up and 10 degrees down for superior ground following. A single-fold cylinder is used to fold the wings, providing fewer service points and resulting in more uptime and reliability. Each wing pivot utilizes hardened Grade 8 wing pins with replaceable hardened bushings for long wear life.

  • Lowest Transport Height in the Industry

    The vertical fold design on Case IH Precision Disk air drills allow for the lowest transport height in the industry as well as narrow transport widths. Other easy-transport features include:

    • Wing lock for safe transport on the 25- and 30-foot models
    • Single remote lever inside the tractor folds or unfolds the Precision Disk air drill
    • Wide profile transport wheels provide the stability to move the disk drill confidently, even at higher roading speeds
  • Boost ROI with Earlier Soybean Emergence

    Studies show that getting in the field earlier for planting is critical to maximizing soybean yield potential1 — and late-emerging soybeans can be costly, with a potential loss of up to $140/acre.2 That’s why Precision Disk 500 series air drills are agronomically designed with a parallel link row unit to promote earlier, more rapid emergence than competitive air drills.

    Precision Disk 500 series air drills let you plant soybeans earlier and into tough no-till seedbeds — so you can seed with accuracy, no matter the conditions, and stay within budget. The new single-rank Precision Disk 500T air drill offers a cost-effective solution for earlier soybean seeding.

    Learn more about how Precision Disk 500 series air drills help boost ROI on the Case IH blog.

    1. Based on field research from University of Illinois at Urbana-Champaign. 2. Based on field research from North Carolina State Extension and North Carolina Soybean Producers Association.

  • Find Your Match For Easy Maneuvering

    Our Precision Disk 550 and 500DS models give you the choice of either a tow-behind or tow-between configuration, while our 550T lets you be more versatile with a mounted seed tank. Whichever model you choose, all come equipped with a strong cast Cat IV hitch clevis for secure hitching.

    Front Hitch Floating style front pull hitch allows the disk drill to float up and down, independently from the tractor and hitch. This improves ground following and seed depth control because the hitch will not raise or lower the front of the tool when the tractor rides over a hill or obstacle.

    Rear Hitch* Hook up any tow-behind air cart with ease, ensuring a tight implement turning radius and follow the tracks created by the tractor during transport. Provide enough room to allow the drill frame to be folded into the transport position without disconnecting the air system.

    *Precision Disk 550 model only
  • Reduced Maintenance and Easy Serviceability

    The open frame design of our Precision Disk air drills makes it easy to access all parts of the disk drill for ease of maintenance. Plus, a majority of the setup is completed at the factory, which reduces setup time, improves reliability and leads to increased uptime.
  • Achieve Seeding Efficiencies with Data-Driven Decision-Making

    Case IH Advanced Farming Systems (AFS) helps you capitalize on all of the advantages and benefits Precision Disk air drills bring to your farm. AFS offers a fully integrated platform that gathers data during every phase of production — and it’s all controlled through a new, intuitive display interface design.

    Reduce unsightly skips from blocked seed rows and monitor seed population to ensure hitting target rates, while putting seed, fertilizer and other inputs precisely where you want them using AFS section and rate control. Less overlaps combined with variable-rate application and precise product placement help you save on inputs, improve agronomic performance and lower overall costs.
  • Maximize the Potential of Your Seed and Fertilizer

    Make the most of short seeding windows with the Precision Air 5 series air carts. Designed with the flexibility to fit your operation, the full lineup of air carts from Case IH helps increase seeding capacity and reduce costly overlaps. Customizable configurations provide the versatility for a variety of crops and fertilizers, while our exclusive metering and seed delivery systems offer greater efficiency.


Choose the Most Efficient Setup for Your Operation

Precision Air 2355_Precision Disk 500_0572_06-15
550 Model
  • Air Cart Compatibility: The Precision Disk 550 air drill model is designed specifically for use with Precision Air 5 series air cart applications. These air carts include features like in-tank video cameras, AccuSection section control, pressure sensors, and more.
  • Tank Capacity: With capacities from 350 to 950 bushels, Precision Air carts are available in tank configurations that have two or three primary compartments. Optional 25- or 35-bushel auxiliary tanks help meet your input needs.
  • Row Spacing: Choose from 7.5- or 10-inch spacing configurations. The front or rear ranks can be hydraulically lifted and locked to seed with 15- or 20-inch spacing, respectively.
  • Product Versatility: You can mix any tank’s product with any of the other tanks, giving you maximum flexibility to achieve high efficiency when seeding.
550T Model

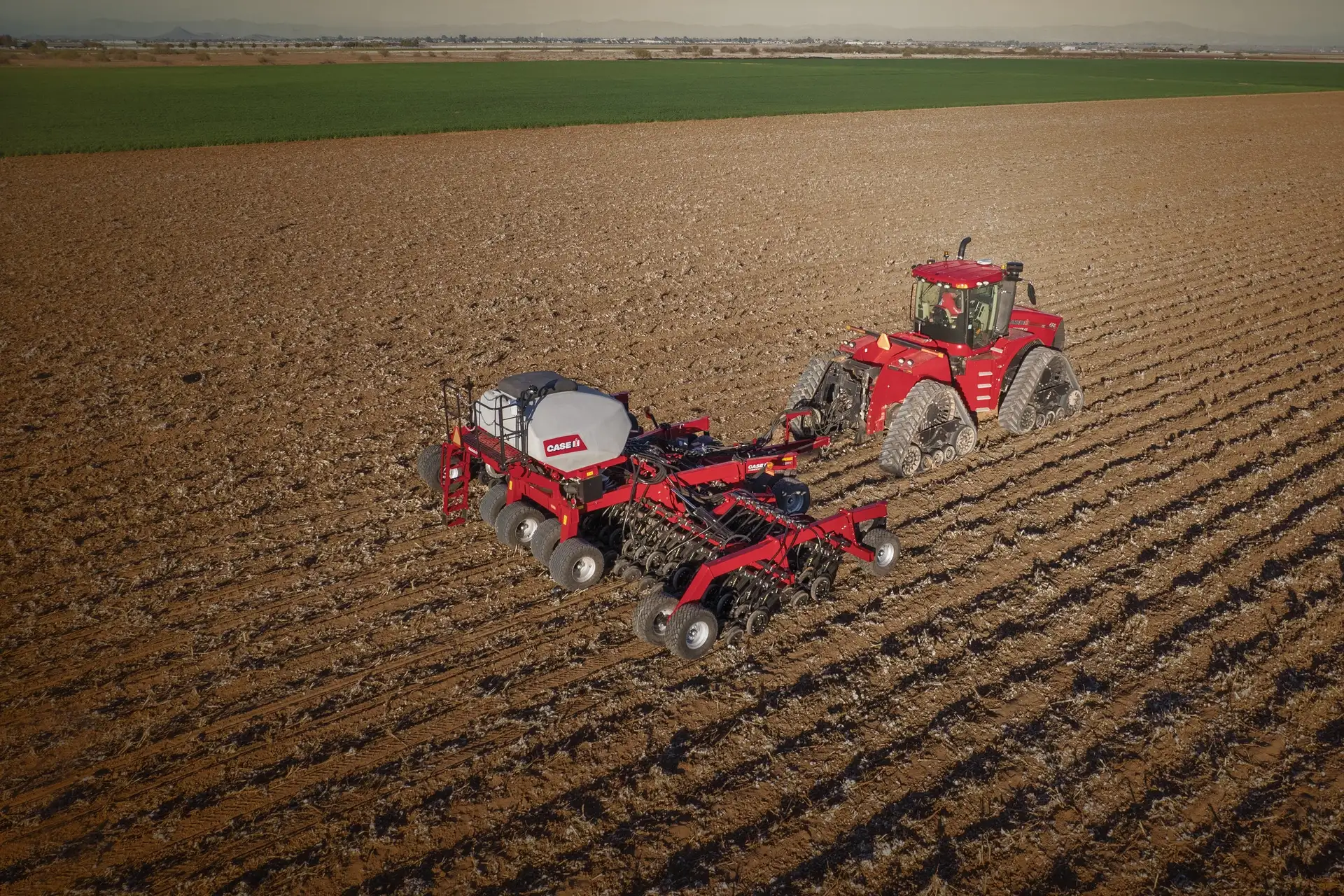

  • Mounted Tank: The Precision Disk 550T features a mounted tank with seed metering, four-section overlap control and optional tank-mounted weigh scales to help monitor seeding rates and perform auto-calibration.
  • Tank Capacity: The 30-foot Precision Disk 550T features a 110-bushel tank, while the 40-foot machine is equipped with a 140-bushel tank.
  • Row Spacing: Choose from 7.5-, 10- or 15-inch spacing configurations. When equipped with 7.5- or 10-inch spacing, the front or rear ranks can be hydraulically lifted and locked to seed with 15- or 20-inch spacing, respectively. The 550T is also available in a single-rank, 15-inch spacing configuration – ideal for soybean seeding.
  • Easy Access & Loading: A high, rearward-mounting position allows easy access to the seed meter and row units below. Plus, a large platform gives you ample room for loading.
Precision Air Cart 4765_0374_05-18
500DS Model
  • Air Cart Compatibility: The Precision Disk 550 and 500DS air drill models are designed specifically for applications with Precision Air 5 series air carts. These air carts include the AccuSection™ modular metering control system with built-in section control, in-tank video camera, tank pressure sensors and more.
  • Product Versatility: You can mix any tank’s product with any of the other tanks, giving you maximum flexibility to achieve high efficiency when seeding.
  • Row Spacing: All toolbars, from 30 feet to 60 feet, come with 10-inch spacing.
  • Tank Capacity: With capacities from 350 to 950 bushels, these carts are available in tank configurations that have two or three primary compartments. Optional 25- or 35-bushel auxiliary tanks help meet your input needs.
