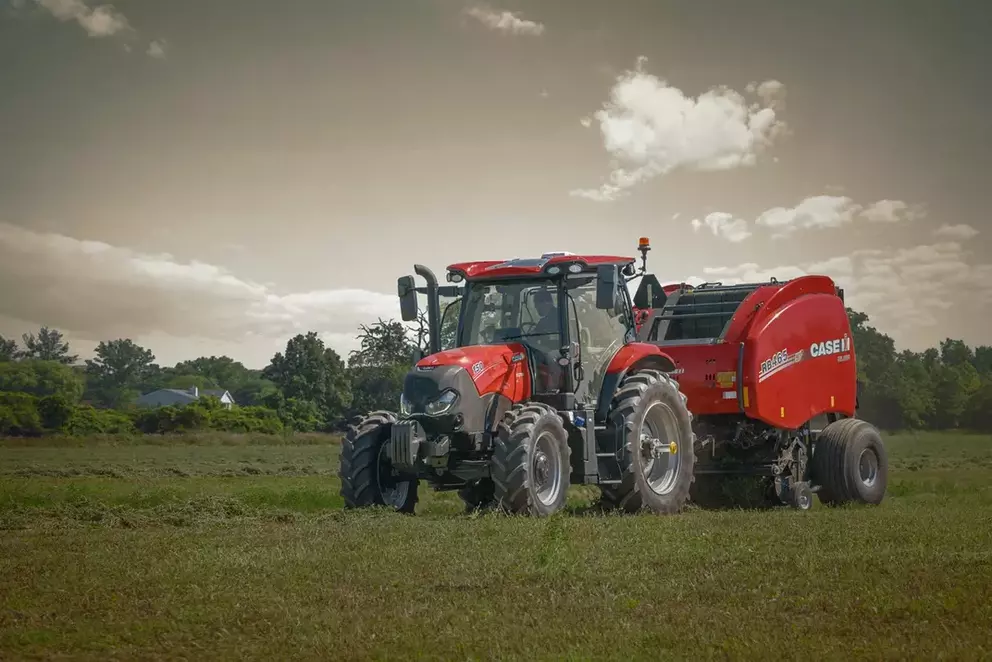

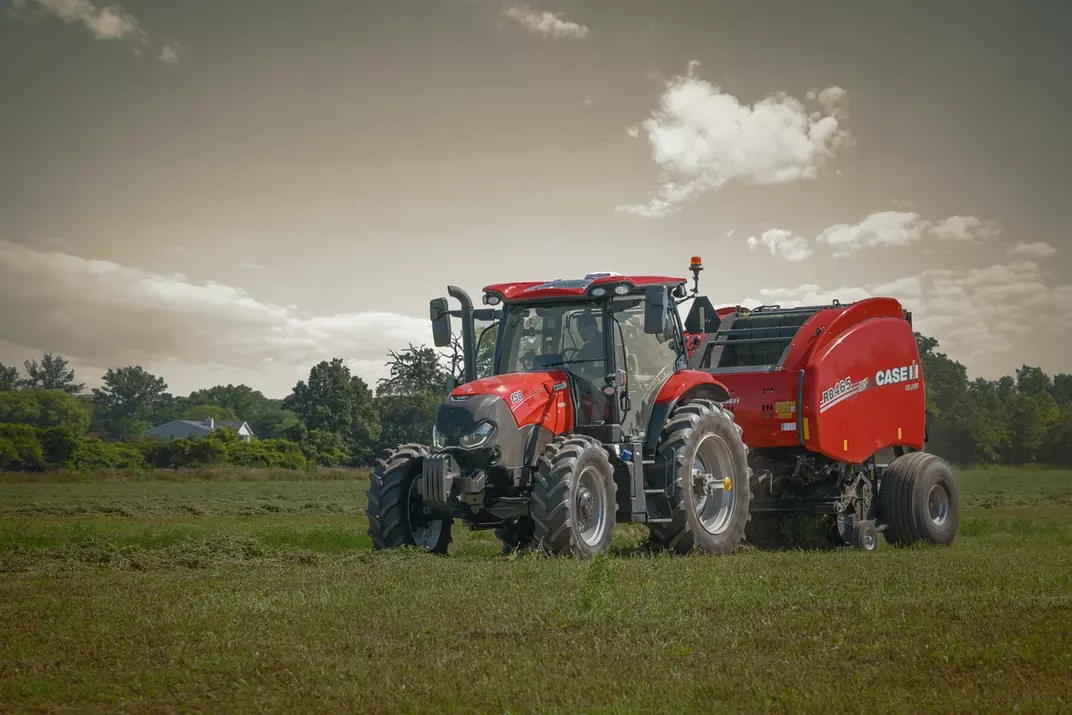

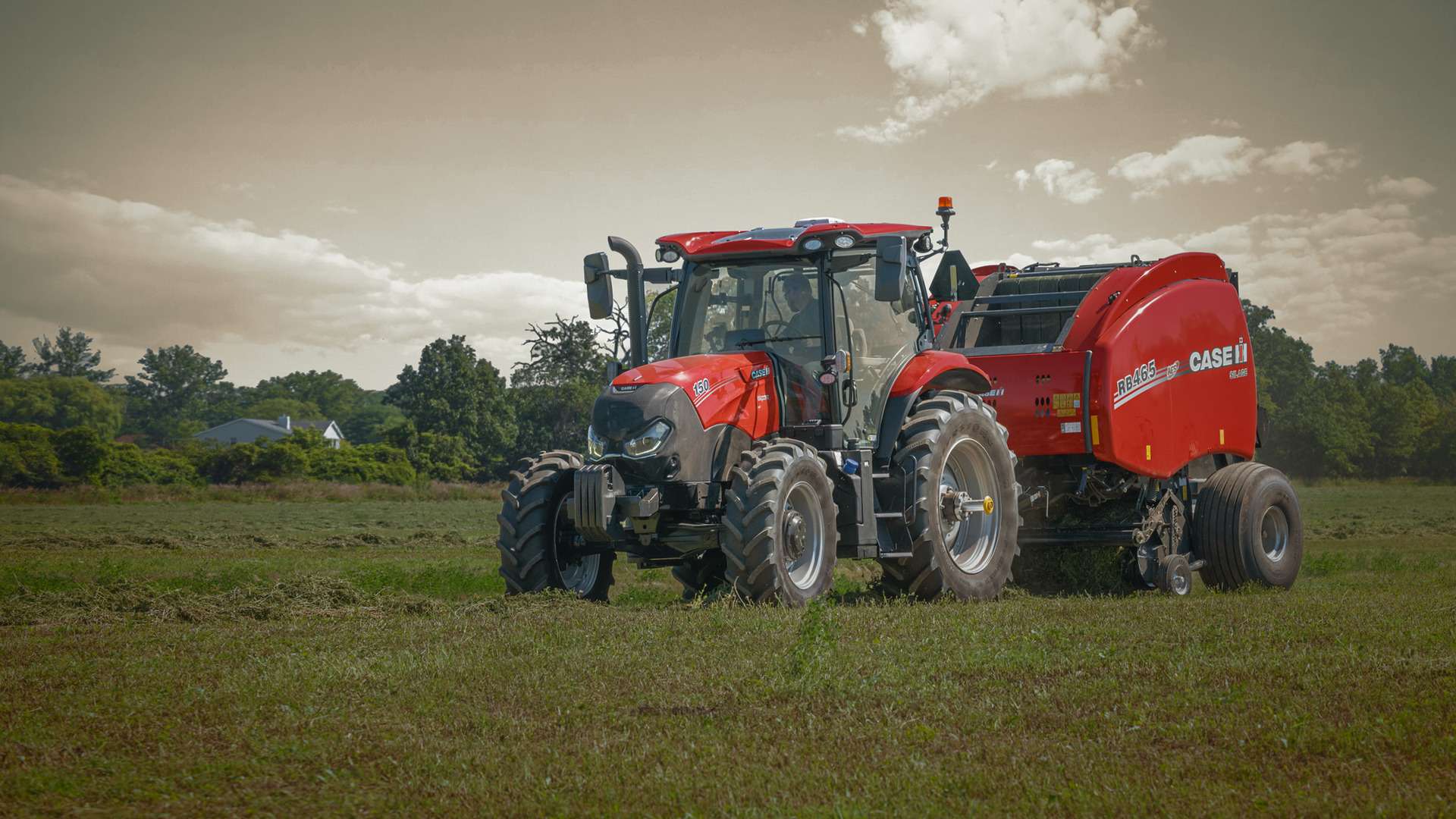

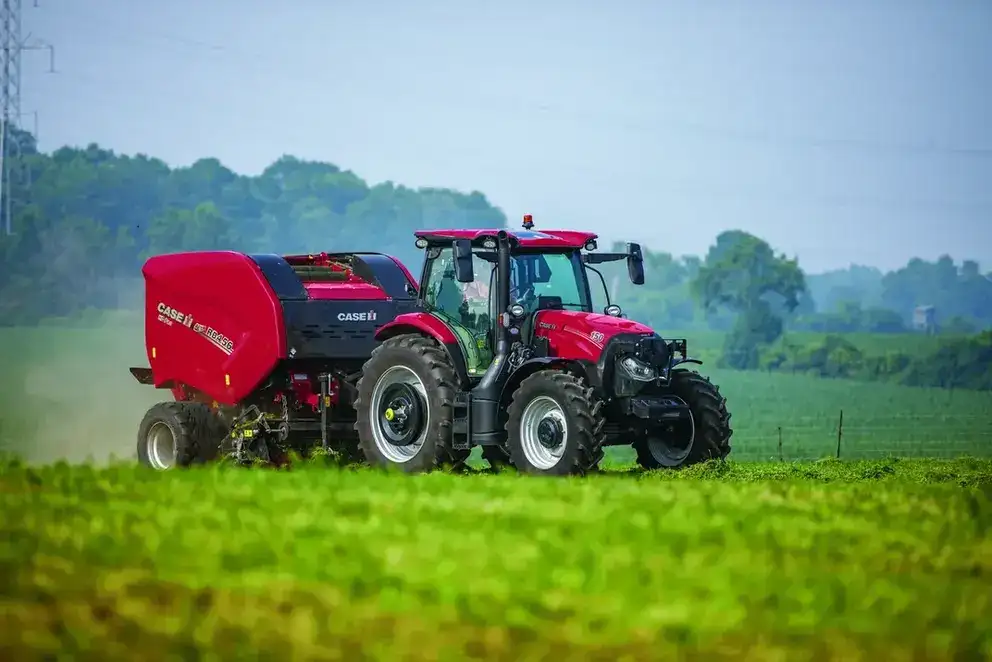

Maxxum Series

Maxxum series tractors are powered by FPT engines with proven Selective Catalytic Reduction (SCR) emission technology. Turbocharged 4.5-L, 4-cylinder or 6.7-L, 6-cylinder aftercooled engines generate 116- to 150-rated horsepower (95 to 125 PTO horsepower).

• These FPT engines deliver a power boost of up to 24 horsepower on the 4-cylinder models and up to 17 horsepower on the 6-cylinder model.
• Common rail direct injection produces faster throttle response, improved power performance and increased efficiency.
• SCR emission-control technology treats exhaust outside of the engine. This maximizes engine power and fuel efficiency while delivering increased durability and longer service intervals.

The way implements attach, function and power up is just as important as a tractor’s engine, transmission and cab comforts. Maxxum tractors feature the power and capacity that make it a hardworking versatile machine, plus ease of use that makes for efficient productivity.

• A 540 and 1,000 rpm rear PTO is standard and includes a reversible shaft for fast, easy PTO speed changes.
• A front-mount PTO is available

Maxxum tractors provide the hydraulic flow you need to power all kinds of implements and the toughest loader work. Case IH offers two different pump options to meet your needs; the fixed displacement pump is perfect for simple operations that require less flow, while PFC systems are best for operations that require additional or continuous flow. Main implement pump max flow capacity:

• Maxxum ActiveDrive 4: 22.7 gallons per minute — fixed displacement; 31.9 gallons per minute — optional pressure-flow compensation (PFC); mechanical remotes
• Maxxum ActiveDrive 8: 22.7 gallons per minute — fixed displacement; 39.6 gallons per minute — PFC; available with electronic or mechanical rear remotes
• Maxxum CVXDrive: 39.6 gallons per minute — PFC; available with electronic or mechanical rear remotes ​

Remotes – Choose from two to four remotes with adjustable detents. Fully color-coded remotes and in-cab controls simplify hookup.

The 3-point hitch features standard telescoping stabilizers and available quick-attach claw ends or telescopic lower links with ball-link ends – making attaching and hooking up implements fast and easy. Available front-mount hitches provide additional versatility. Two turnbuckles provide side-to-side leveling of attachments. A swinging drawbar makes hooking up implements easier or it can be moved out of the way when not in use.

Lift capacities: Mechanical position control and adjustable drop rate make operation easy and precise.

• Standard: Two 80 mm lift cylinders — 6,900 pounds
• Optional: Two 90 mm lift cylinders — 8,945 pounds

Maxxum series tractors can take on any kind of field condition. All Maxxum ActiveDrive 4, Maxxum ActiveDrive 8 or Maxxum CVXDrive models feature heavy-duty front-axle options. Maxxum ActiveDrive 4 models also feature a 2WD option.

Whether you prefer a top-of-the-line, superior operator environment or the basic comforts, Maxxum series tractors let you customize your experience to the level that meets your individual needs.

A spacious operator platform complete with left and right cab doors provides plenty of legroom, storage space and room to maneuver. Comfortable seating, intuitive control placement, climate control and wide-open views make long work days more enjoyable.

Precision technology components on Maxxum tractors offer dependability and convenience and give you the flexibility you need to help ensure you’re ready to begin gathering data as soon as you pull into the field. Uncover the productivity capabilities of AccuGuide™, the Pro 700 Plus display, and two levels of ISOBUS communications interface.

The optional advanced loader joystick allows you to change speeds and direction without removing your hand from the loader joystick.

Maxxum series tractors are designed to keep you up and running. Maintenance points are accessible without removing shields and the hood opens without tools. Radiators and coolers fold out for quick, easy cleaning.

Hi-eSCR2 emissions technology allows for longer service intervals – 750 hours for engine oil and 1,500 hours for transmission fluid. Large fuel tanks keep you rolling, while a wide filler opening makes ground-level fueling easy.
