14’ 3” - 18’ 3” Cutting Widths

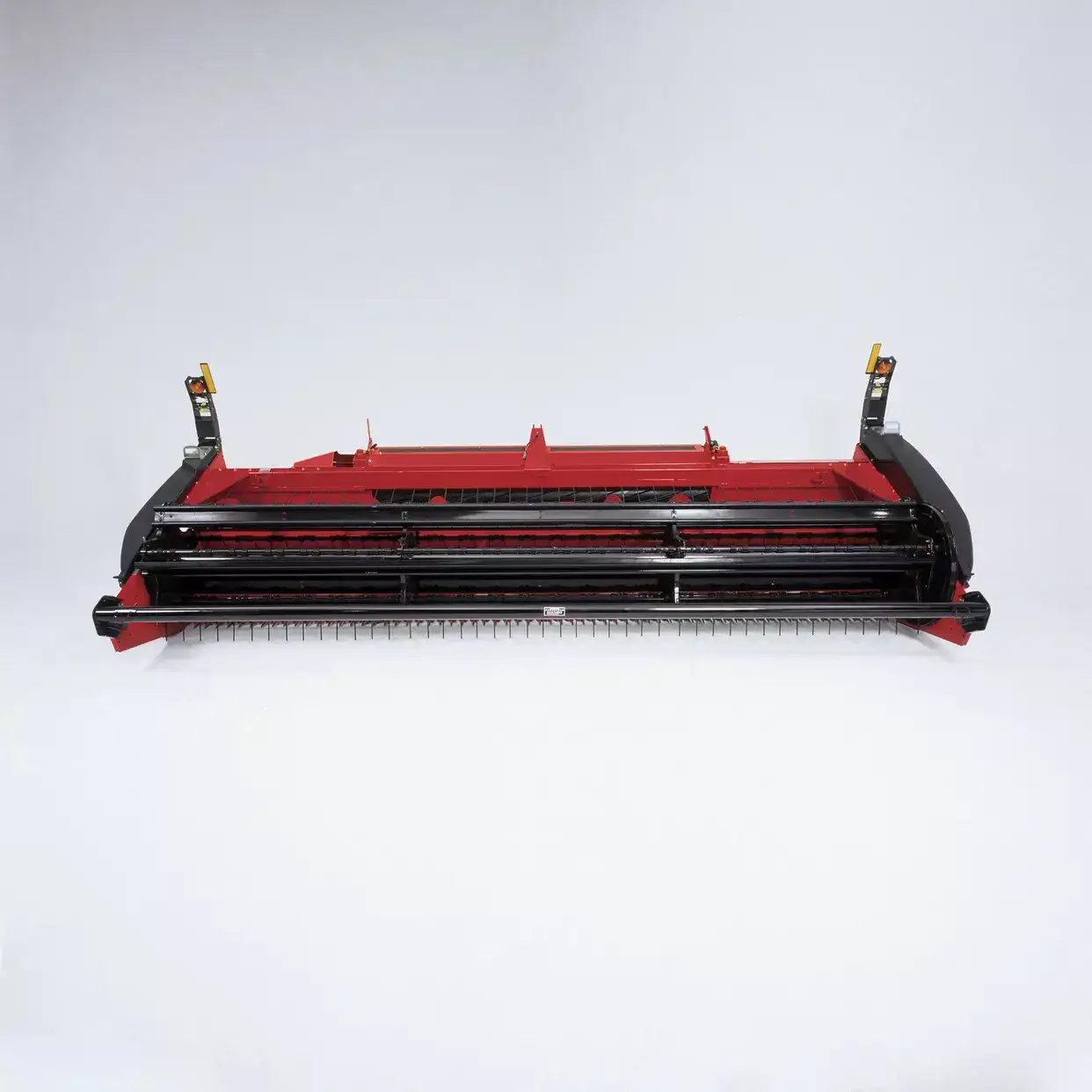

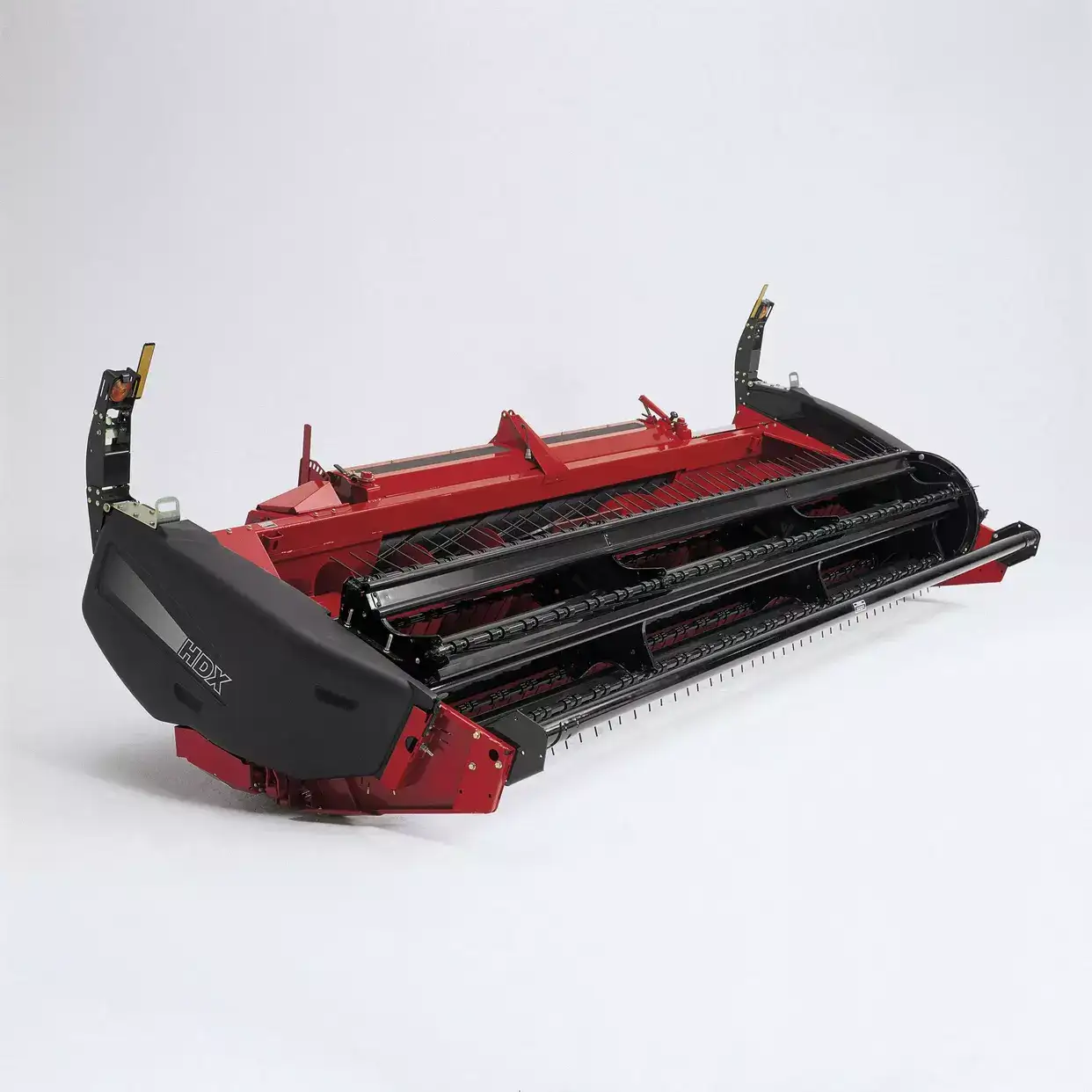

Sicklebar Headers

Using the counter-stroking action of dual sickles, Case IH HDX 2 series sicklebar headers shear the crop cleanly, even in the heaviest of conditions. The unique floating auger keeps the crop moving smoothly to the conditioning rolls. Available in three cutting widths, from from 14’ 3” to 18’ 3”.

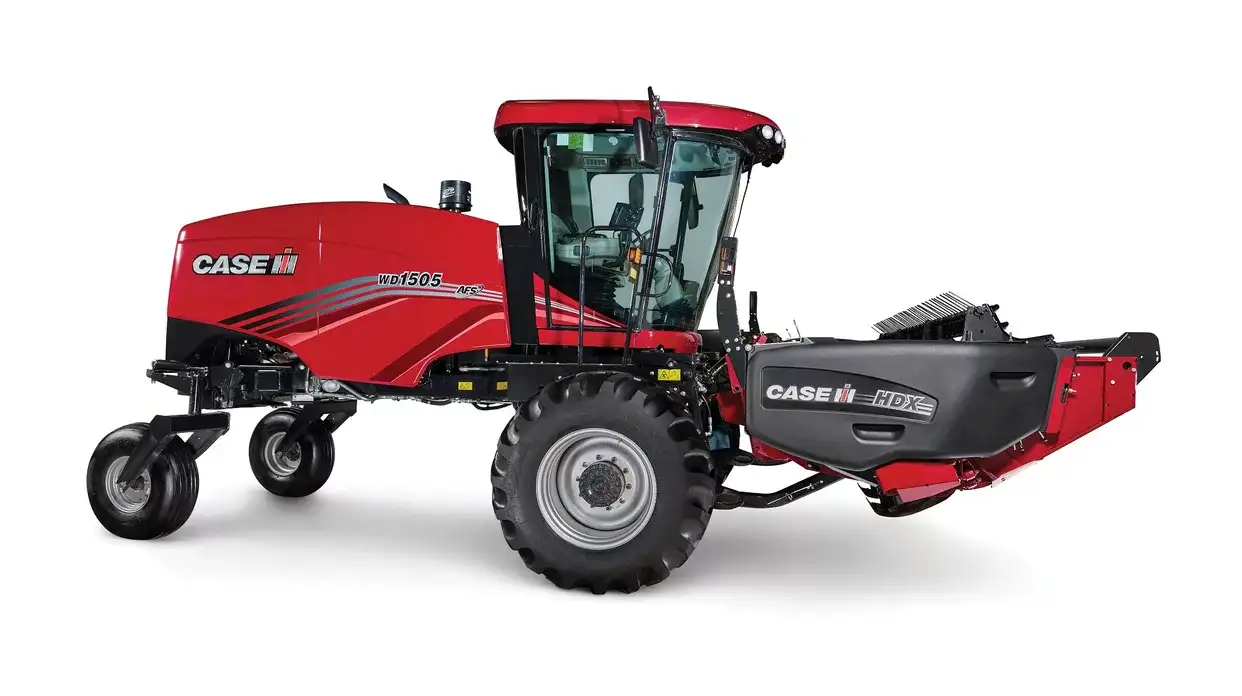

Case IH tractor and sicklebar header
Cutting Width

14 ft. 3 in. - 18 ft. 3 in.

Cutting Height
1.2 - 6.2 in.
Sickle Speed
1,810 SPM
Angle Range
6 - 12 Degrees

Made for the Toughest Situations

The Case IH HDX 2 Sicklebar Header uses a counter-stroking action of dual sickles to shear crop cleanly while the unique floating auger keeps the crop moving smoothly.

Explore Features

  • Designed for a Cleaner Cut

    The Case IH HDX series sicklebar headers are engineered to deliver a long life and a cleaner cut.  Featuring bolt-on knife sections, hydraulic angle adjustments from 6 to 12 degrees below horizontal, a unique floating auger and easily adjustable skid shoes.

  • Built to Work in Heavy Crop Conditions

    The HDX 2 Series Sicklebar Headers feature a conditioning system that is built to work in heavy crop conditions. Conditioning rolls crimp stems thoroughly for fast dry down. The roll pressure system uses a torsion bar, which allows conditioning rolls to automatically separate to clear slugs and the chevron pattern provides even windrow formation.

    There are three options available: Rubber-on-Rubber, Steel-on-Steel, and Hi-Contact

  • Available Options on the WD5 Windrowers and HDX 2 Series

    • In-cab control of reel speed
    • In-cab control of windrow width
    • Header gauge wheels
    • Tall-crop lean bar kit
    • Crop dividers


Take a Deeper Dive Into the Sicklebar Headers
