Steiger Scraper Tractors: The Most Efficient Power Available

A fuel-efficient engine that requires no regeneration time plus two automatic transmission options make Steiger^® scraper tractors one smart choice for the jobsite. The CVXDrive™ continuously variable transmission is a new and intelligent transmission that takes the guesswork out of earth-moving work, making the operator you put in the cab more productive. Or choose the world record setting PowerDrive transmission for serious power and pull. Either way, you’ll be moving dirt for a lower cost per cubic yard of dirt than with a self-propelled scraper and dozer or crawler tractor.

Request a Demo

Transmission Choices

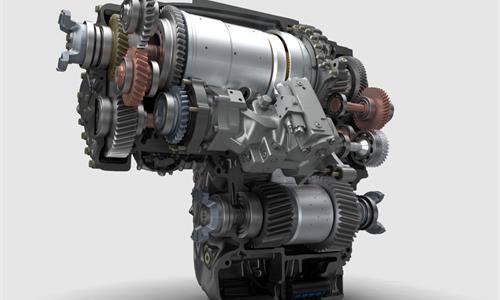

Intuitive CVX Drive

Steiger tractors with CVXDrive take the guesswork out of scraper work. The CVXDrive automatically selects the most efficient transmission range once the operator sets the desired speed up to the 540 model. This eliminates the need for shifting and clutching, so you can load the pan more evenly and efficiently. If your operators can drive the support vehicle, they can drive a Steiger CVXDrive tractor.

The CVXDrive also gives you:

Exclusive split-throttle design
Precise speed changes
Seamless acceleration to reach cruising speed at the lowest possible engine speed
Continuous hydraulic flow to ensure all power is transferred and not dispersed
Consistent, if not better, cycle times

Rugged PowerDrive Transmission

The PowerDrive powershift transmission generates the highest drawbar horsepower, maximum pull and most fluid-efficient power in the world.^1,2,3 Plus, it provides reliably smooth and quick shifting – 20% faster than other powershift transmissions – to reduce operator fatigue. That’s why it comes standard on every Steiger tractor.1

The PowerDrive transmission also gives you:

Skip Shift™ function: Shifting two gears at a time allows the operator to reach desired ground speed as fast as possible.
Diesel Saver Automatic Productivity Management (APM): More driving comfort and maximum fuel economy allow the PowerDrive to operate like an automatic transmission.
Power shuttle: Right-hand power shuttle in parallel with the left-hand selector is standard, allowing direction changes without releasing the steering wheel.
Smooth power: Allows shifting through all 16 gears without any torque interruption, providing more efficient power to the drawbar.

More Uptime, Unmatched Efficiency

The patented SCR-only technology found in every Steiger engine is built to keep you up and running day in and day out. From best-in-class fuel efficiency to no required regeneration time, these engines run cleaner — without modification or compromise. So while competitive tractors are at a standstill, you’ll be moving dirt.

World-record-setting Power

Drawbar horsepower: It’s one thing to generate a lot of horsepower. It’s another to effectively transfer that power to the scraper you are pulling. Steiger tractors deliver 37 more usable horsepower than comparable models.¹
Maximum pull: The Steiger 620 tractor handles more weight than any tractor ever tested by the Nebraska Test Laboratory. Plus, separately activated front and rear automatic differential locks help you maintain the pull through the toughest conditions.²

Fluid-efficient power: Patented Case IH SCR technology is simply the most efficient and powerful diesel emissions-control technology there is. You’ll be moving dirt while competitive tractors are busy going through a regeneration cycle. This translates into powerful fluid savings for your business.³
An Efficient Power Package

When you purchase a Steiger scraper tractor, you get one powerful transmission. Case IH packs a 620-horsepower transmission in most scraper tractor configurations,* giving you the satisfaction of knowing you’ll have a scraper tractor that gives you years of service and providers a lower cost of ownership.

Plus, the Diesel Saver Automatic Productivity Management (APM) system helps maintain speed through the cut by automatically upshifting and downshifting as the load, soil or grade changes.

Power Through Every Pull and Turn

Wheels
- Dual wheels are the best choice for maximum scraper pulling power. Up to 5.5-inch heavy-bar axles carry up to 66,000 pounds of weight.
- Independent auto differential locks provide maximum traction at all times, reducing slippage in tough terrain.
- Available in Michelin^®, Goodyear^®, Titan^®, Mitas^® and Firestone^® dual tire option.
- Single Low Sidewall Technology™ (LSW^®) tires now available for narrower transport.
Quadtrac^®
- Quadtrac tractors are the right choice for fleets that need to power through mud and difficult terrain.
- Four individual drive tracks, each with five axles, precisely follow the ground contour and create more ground contact for better flotation, traction and easier transport.
- A standard advanced steering system — a hybrid of electric and hydraulic — provides outstanding maneuverability and control.
- Standard self-tensioning track system maintains belt tension for longer life.
- Standard bolt-on roller wheels and cast undercarriage add extra strength and durability.

Brochures

AFS Connect Steiger Scraper Specs (745.18 KB)
Share Download
Steiger & Magnum Tractors Brochure (3.08 MB)
Share Download

Discover More

Discover how Steiger scraper tractors can improve your operation’s bottom line by offering more power, more comfort and more ROI.

Request a Demo

More Power

Built strong to handle even the heaviest scraper loads. See how Steiger tractors balance power with efficiency.
Learn More
More Comfort

Steiger tractors provide enhanced comfort features to keep operators alert and productive during those long days in the cab. See why this is an easy tractor to operate and maintain.
Learn More
More ROI

Steiger tractors can help you move earth for the lowest possible cost per cubic yard. Calculate your return on investment.
Learn More

*Included in 500, 540, 580 and 620 models

¹Steiger 620 Tier 4B (Nebraska Test 2164, September/October 2016): maximum drawbar fuel efficiency at 17.63 hp-hr./gal. at rated engine RPM, and at 75% pull at rated engine rpm 16.61 hp-hr./gal.; compared with John Deere 9620R Tier 4B (Nebraska Test 2135, November 2015): maximum drawbar fuel efficiency at 16.07 hp-hr./gal. at rated engine rpm and at 75% pull 15.86 hp-hr./gal. Steiger 620 Tier 4B (Nebraska Test 2164, September/October 2016): maximum observed drawbar horsepower of 594.08 hp; compared with John Deere 9620R Tier 4B (Nebraska Test 2135, November 2015): maximum observed drawbar horsepower of 556.83 hp. Steiger 620 Tier 4B (Nebraska Test 2164, September/October 2016): maximum pull at 65,077 lb.; compared with John Deere 9620R Tier 4B (Nebraska Test 2135, November 2015): maximum pull at 60,455 lb.

²2.1% lower total operating cost by weighted average ($0.0023/hp-hr.). Yearly costs assume usage of 685 hours and average of 75% power. Results from PTO dyno and drawbar tests combined (Nebraska Test 2092, September 2014 (370), Nebraska Test 2093, September/October 2014 (420), Nebraska Test 2094, September 2014 (470), Nebraska Test 2095, September/October 2014 (500), Nebraska Test 2096, September 2014 (540), Nebraska Test 2162, October 2016 (580), Nebraska Test 2164, September/October 2016 (580), Nebraska Test 2107, March/April 2015 (9370R), Nebraska Test 2108, April 2015 (9420R), Nebraska Test 2109, April 2015 (9470R), Nebraska Test 2111, April/May 2015 (9520R), Nebraska Test 2133, November 2015 (9570R), Nebraska Test 2135, November 2015 (9620R)).

³Steiger Quadtrac 620 Tier 4B (Nebraska Test 2165, September/October 2016): maximum drawbar fuel efficiency at 16.63 hp-hr./gal. at rated engine rpm, and at 75% pull at rated engine rpm 15.87 hp-hr./gal.; compared with John Deere 9620RX Tier 4B (Nebraska Test 2174, April 2017): maximum drawbar fuel efficiency at 15.54 hp-hr./gal. at rated engine rpm, and at 75% pull at rated engine rpm 15.33 hp-hr./gal. Steiger Quadtrac 620 Tier 4B (Nebraska Test 2165, September/October 2016): maximum observed drawbar horsepower of 561.94 hp; compared with John Deere 9620RX Tier 4B (Nebraska Test 2174, April 2017): maximum observed drawbar horsepower of 549.55 hp. Steiger Quadtrac 620 Tier 4B (Nebraska Test 2165, September/October 2016): maximum pull at 57,556 lb.; compared with John Deere 9620RX Tier 4B (Nebraska Test 2174, April 2017): maximum pull at 53,349 lb.
