610 Liquid System

From its large tanks to its big booms, and all the plumbing in between, the 610 Liquid System is designed to help applicators cover a lot of acres in a short window.
Build & Price
Tank
1800 & 2000 Gal. (6814 & 7571 L)
Boom
70, 60/85 ft. (21.3, 18.2/25.9 m)

Compare to Other Manufacturers

Titan Floaters Brochure

Find a Dealer

610 Liquid System Highlights

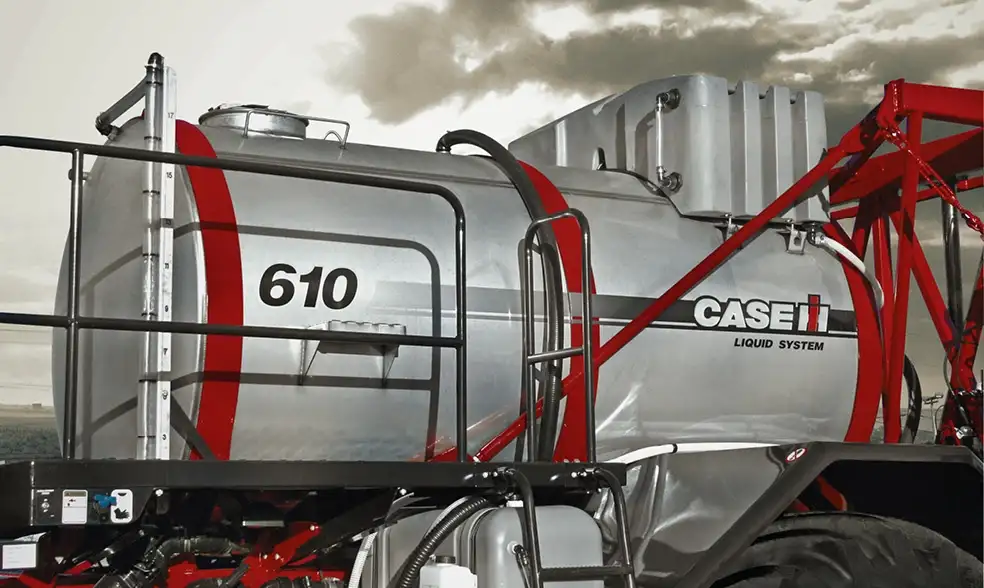

Tanks

Whichever tank size you choose, you get solid design and long-lasting construction

  • Available in 1,800 and 2,000 gal (6,814 and 7,571 L) capacities
  • Constructed from 12-gauge, 304 stainless steel
  • Internal baffles (one on the smaller tank and two on the larger tank) provide stability
  • Full-length sump for uninterrupted product flow
  • A 2 in (5.1 cm) removable sparge tube runs the length of the tank for continuous in-field agitation
  • Optional fresh water rinse system cleans the tanks and reduces the chance of residual chemical contamination

Booms

  • Available in either 70 or 65/85 ft (21.3- or 18.2/25.9-m) boom widths
  • All booms are self-centering
  • Hydraulic leveling cylinders maintain the boom’s centered spraying position, keeping the centering chains tight
  • Hydraulic accumulators attached to the main leveling cylinders absorb vertical shock loads
  • Outer breakaways absorb horizontal shock loads through a combination of shock absorbers and spring
  • The boom is brought safely back to its original position once the obstruction is cleared

Plumbing

  • The 610 Liquid System features the hard-working, hydraulically controlled Defco 7600 pump
  • Pulse Width Modulation (PWM) controls the pump speed to accurately deliver the proper rate of product
  • Precise control of pump speed reduces wear on the impeller and internal components
  • Pump housing alignment further enhances system efficiency and productivity
TitanFloater30Series_3847_11-11_mr

Service

When application windows are short, time is money. The Case IH 610 Liquid System features an operator-friendly service center for loading product, chemical induction, foam tank filling and foam concentrate transfer — all completed from one location.

  • Hydraulically-driven pump features a large load valve for quick tank fill
  • A side ladder provides access to the walkway and tank top during reloading
  • Remote electronic controls allow the operator to adjust engine speed and product pump speed while manipulating the mechanical product valves
  • A large red “panic” button allows your to shut down the system in a hurry, if necessary
  • A remote-mounted light provides visibility in low-light conditions
