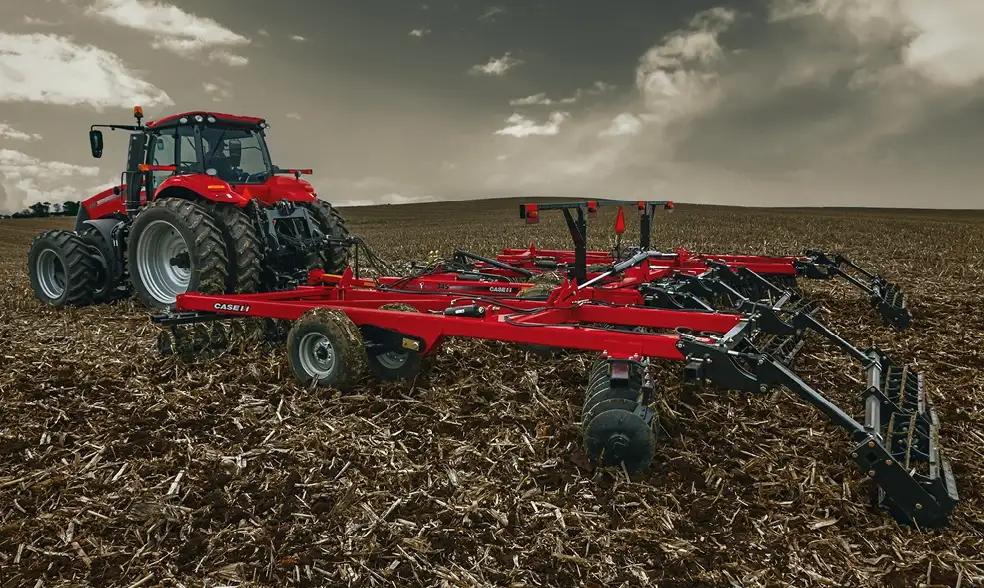

True-Tandem 345 Disk Harrow
Case IH True-Tandem™ 345 disk harrows, with blade spacing of 7.5 or 9 in, provide straight, easy pulling for primary tillage, seedbed preparation or chemical incorporation.
Working Width
22 to 47 ft (6.7 to 10.4 m)
Blade Spacing
7.5 or 9 in (190 or 229 mm)
Blade Size
22 in (560 mm)
Horsepower Required
220 - 485 HP (depending on size)
True-Tandem Disk Harrow 345 Highlights
- Available in 5 single fold sizes: 22 ft (6.7 m), 25 ft (7.6 m), 28 ft (8.5 m), 31 ft (9.4 m), and 34 ft (10.4 m)
- Symmetrical, 18 degree gang angle and equal number of blades on either side of machine, providing uniform pulling pressures and residue mixing
- Earth Metal Disk Blades, 30% stronger other industry blades, providing durability and decreased downtime
- New gang mounting design with new plate and bolt, and cast-iron nodular spools
- Increased frame strength with 16 inches of length added to the tough pull through frame design, welded cylinders, and frame-mounted rockshaft and gauge wheels
- Active Hydraulic Double-edge Rolling Reel for improved soil conditioning
