VT-Flex 435 Vertical Tillage Tool

The VT-Flex™ 435 vertical tillage tool helps producers manage their residue effectively with easy, on-the-go gang angle adjustments – whether using conservation or conventional tillage practices – to match your desired field finish and residue management needs

Build & Price
Working Width
11 to 34 ft.
Transport Width
13.7 ft. (25 ft. and smaller units)
Power Requirement
80 to 275 hp
Operating Depth
1-4 in.
Speed
6 to 9 mph

Compare to Other Manufacturers

VT-Flex 435 Spec Sheet

Find Operator Manuals

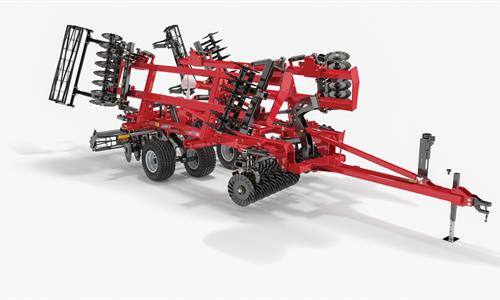

VT-Flex_435_Front_Fold_4_1_08-21

Exceptional Efficiency

  • Cover more acres with 6 to 9 mph ground speeds while maintaining an agronomic field finish.
  • Single-point hydraulic depth control offers quick and easy adjustments in a variety of fields and conditions.
  • Front t-hitch design allows for tight, efficient turning when space is at a premium.​
  • Narrow transport height and width enable operators to get from field to field faster and with ease.

VT-Flex™ 435 Highlights

VT-Flex 435 and AFS Connect Magnum

Agronomic™ Design

  • 20-in. shallow-concavity fluted blades with 7.5-in. spacing help cut residue at shallow gang angles, cutting and mixing residue with soil for faster breakdown.
  • Match your field preparation needs with 1- to 4-in. depth capabilities.
  • Standard walking tandem design on the main frame and wing frame supports a smooth ride and reduces compaction.
  • Choose from either mechanical or hydraulic fore/aft leveling for a smooth and even finish.
  • Pick the size that best fits your operation: 11’, 15’, 20’, 23’, 25’, 30’, or 34’ option.
VT Flex Vertical Tillage Tool close up

Built Tough

  • 20-in. Earth Metal® VT wave blades
  • Rugged cast-iron nodular spools and large arbor bolts provide strength, durability and weight where it’s needed.
  • Greaseless bushings in all rockshaft pivots, wing fold pivots and heavy-duty roller bearings in Crumblers help reduce maintenance.
  • Optional rear hitch for 30’ and 34’ models to pull an additional harrow for more clod sizing
VT-Flex 435 adjustment tool

Simple Adjustments

  • Gang angles are mechanically or hydraulically adjustable (hydraulic adjustment is optional on 15- to 25-ft. models) ̶ from 0 to 12 degrees ̶ to match your desired field finish and deliver dual-season capabilities.
  • Single-point hydraulic depth control offers quick and easy adjustments in a variety of fields andconditions.
  • Optional in-cab hydraulic down pressure control for TigerPaw Crumbler available on 30’ and 34’ units to adjust for adverse conditions.

View Specs

Compare To Other Manufacturers

Configuration

Fore-aft Configuration
Primary Blade Type
Manufacturer's Description Of Blades

Dimensions And Weights

Blades

Blade Mounting And Angles

Rolling Basket, Reel Or Chopper

Harrow

Tires

Tractor Power Recommendations
