467 - 778 PEAK HP

Steiger Series

The go-to tractor for producers wanting a reliable efficient and powerful four-wheel drive tractor — with record-setting fuel efficiency, best-in-class comfort, and the ability to remotely manage your farm, fleet and field information with AFS Connect™. All new Steiger® tractors come with an AFS Connect technology subscription.

close up of Steiger 715
Peak HP

467 - 778 HP

Transmission
PowerDrive or CVXDrive™
FPT Engine

12.9 L & 15.9 L

Hydraulic Capacity
Up to 113 gpm

Up to 113 gpm

More Power, More Technology, More Efficiency, More Comfort

Agriculture delivers new challenges and opportunities every day. For nearly 70 years, Steiger series tractors have helped producers like you get more from the job in demanding conditions. With more power, efficiency and comfort than the competition, plus the power of AFS Connect, find new ways to maximize your yield potential and return on investment, while minimizing your fuel consumption, work hours and stress.

Explore Features

  • Quadtrac Heavy-Duty Suspension

    The optional Quadtrac® Heavy-Duty Suspension is designed for comfort and performance, bringing an enhanced operator experience while reducing compaction and increasing durability.

    • Measured vibration at the operator seat is reduced by up to 40%.
    • A double-axis roller wheel suspension helps distribute weight across the entire track, minimizing soil compaction while a 6% larger track footprint increases flotation.
    • An 11% larger drive wheel and 5% longer track compared to standard Quadtrac models extend track life. Stronger castings, larger pin joints and durable suspension joints increase durability.
    • Improvements also include increased ground speed to 26.5 MPH.
  • Backed by a 3-year, 2,000-hour factory warranty.

    You depend on Steiger series tractors to get the job done. And we’ve built these tractors to be durable and dependable. We’re also backing every tractor with a 3-year, 2,000-hour factory warranty. Get the power and performance you need with a tractor that’s built to handle any job.

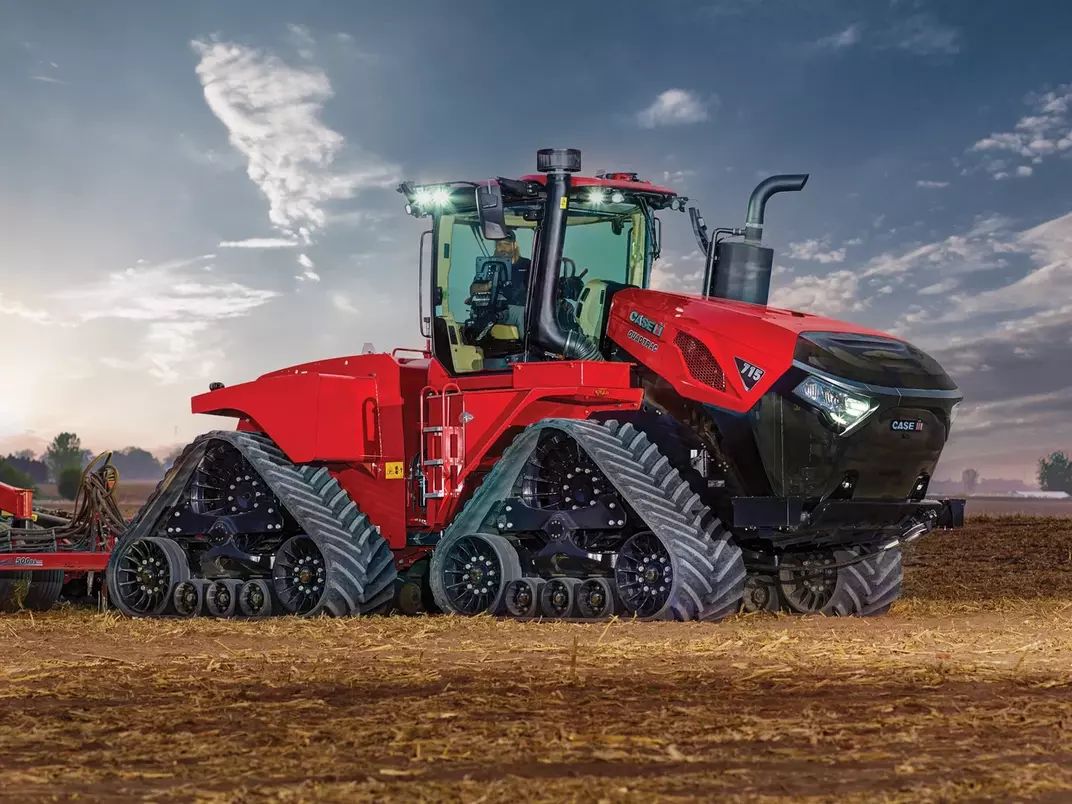

  • The Steiger 715 Quadtrac tractor delivers 715 rated HP and 778 peak HP. A powerful 16-liter engine with dual-stage turbochargers has a 23 percent increased displacement and 2,401 pounds of torque. A longer track and the proven Quadtrac design means the 72,000-pound Steiger 715 tractor floats over fields up to 2 MPH faster.

    Features include Auto guidance, APM automatic shifting, Accuturn pro and the powerful AFS Connect system.

  • Time is Precious. Make the Most of It.

    Steiger series tractors set new standards on what connectivity can mean to your farming operation. The AFS Connect portal is a gateway that lets you precisely manage your farm, fleet and data from a desktop or tablet anywhere. View and share current field operations, fleet information, agronomic data and more with third-party partners.

    All Steiger tractors include a subscription to AFS Connect, allowing you access to powerful tools to help you manage your operation.

  • Fuel-Efficient Engines That Maximize Power

    New 12.9-liter Tier 4 B/Final Stage V engines in Steiger series tractors — powered by FPT Industrial, one of the world’s largest engine manufacturers — provide industry-leading fuel efficiency while maximizing power. Engine updates increase transient response by 50% and overall fuel economy by 2% while simultaneously reducing emissions, making the AFS Connect Steiger series tractor more powerful, productive and sustainable than ever before.



  • Efficient Power in Any Application

    With two industry-leading transmissions to choose from, Case IH delivers the optimal choice to match the requirements of your operation.

    • Powershift Transmission: Proven 16-speed full powershift transmission with  Diesel™ Saver APM technology delivers ultrasmooth shifting and power transfer for the field or road, allowing for maximum productivity and the most efficient power.
    • CVXDrive™ Continuously Variable Transmission: Built for the toughest operations, the CVXDrive™ transmission delivers the exact speed for your operation without compromise. Greater horsepower helps complete in-field tasks without sacrificing overall efficiency
  • The World at Your Fingertips

    The completely redesigned MultiControl Armrest provides advanced, customizable yet easy-to-learn control of your machine and fully adjustable fore/aft and up/down for comfort.

    • Encoder Dials: Easily make adjustments to hydraulics. The encoder acts as a mouse for the AFS Pro 1200 display and controls phone, radio and HVAC functions.
    • MultiFunction Handle: Control 95% of tractor functions all in one spot. Includes 4 customizable hotkeys.
    • Electro-Hydraulic Remote Levers: Color-coded levers can be programmed for different users.
  • Function meets Unsurpassed Luxury

    Case IH engineers started with a clean slate, then used years of research and input from our most qualified experts: you. The result is an interior finished with automotive-quality materials and designed to provide an in-cab experience like no other. Enhancements include:

    • Optimized storage and visibility
    • All-season comfort
    • Multiple power sources
  • Designed For Style and Substance

    Steiger series tractors have modern, automotive-quality styling and robust features to deliver exactly what you need to make your life more productive. With Model Year 2024 updates, operators will gain access to new cab top and sub-roof styling, better lighting, hitch and draw bar upgrades, integrated overhead grab rails, improved door handles, new front and upper-roof side RAM mounts and much more.

  • Hydraulics Configured Your Way

    Steiger series tractors provide up to 113 gpm hydraulic flow, allowing operators to run at lower engine rpm to conserve fuel without affecting operational performance. Up to 8 remote valves are available.

    Levers allow for streamlined hookup with easy-to-identify, color-coded hydraulic valves. Hydraulic spring-loaded covers protect the system from dust.

    3 ½-in. and 3 ¼-in. hydraulic valve couplers allow for more adaptability to operate more implements.
  • Unrivaled Durability Comes Standard

    • Heavy-duty axles on Steiger® tractors can handle up to 66,000 gross vehicle operating weight.
    • 50-50 weight split between front and rear of tractor provides maximum traction with minimum compaction.
    • Four-way cab suspension creates a smooth ride in all terrains.
  • Take Control of Your Farm’s Potential

    Built directly into your Case IH equipment, AFS components deliver intuitive precision farming solutions that reduce waste and increase overall efficiency all year round. From managing inputs during field preparation to monitoring yield and moisture at harvest, AFS helps you uncover opportunities that turn potential into profit.
  • Get in the Field Faster – Stay in the Field Longer

    Simplified maintenance and higher fluid capacities give you maximum time to get the job done. And whether you are three miles or 300 miles away, you can get the support you need from your knowledgeable Case IH dealer. New features allow them to better support you and your fleet remotely.


    • Oil Change Intervals and Fuel Capacity: With up to 470 gallon fuel capacity and 600 hour oil-change intervals, Steiger series tractors keep you up and running longer.
    • Remote Dealer Support: From setting up new Steiger tractors to diagnosing machine codes, your dealer is just a call away.
    • Information at Your Fingertips: My.CaseIH.com is your destination for product support, including free operators manual downloads, AFS training videos, how-to tutorials and maintenance tips.

Available Models

Configurations

The Right Configuration For Any Operation

The Steiger series tractor can be configured to fit your operation no matter how demanding the application. With new tire and track options that provide more traction on the soil with less compaction.

AFS-Connect-Steiger-540-True-Tandem-335-Barracuda_0696_12-19
Heavy-Duty Wheeled

The chassis' design allows for some of the largest tires to be fitted in the industry. High-horsepower row crop tractors deserve industry-leading fuel efficiency for maximum productivity. With reliable power, advanced hydraulics and an industry-best turning radius, no job is too tough.

Available on all Steiger series tractor models.

AFS-Connect-Steiger-420-and-Early-Riser-2150_0919_12-19
Rowtrac™

When traction and agronomic advantage are essential to your operation, the Steiger® Rowtrac™ tractor is the right choice. Rowtrac models provide 50/50 weight splits for low ground pressure to increase yields, plus can easily maneuver through fields for post emergence work.

Available on Steiger 425, 475, 525, 555, 595 and 645 models.

AFS-Connect-Steiger-620-and-Early-Riser-2160_0323_12-19

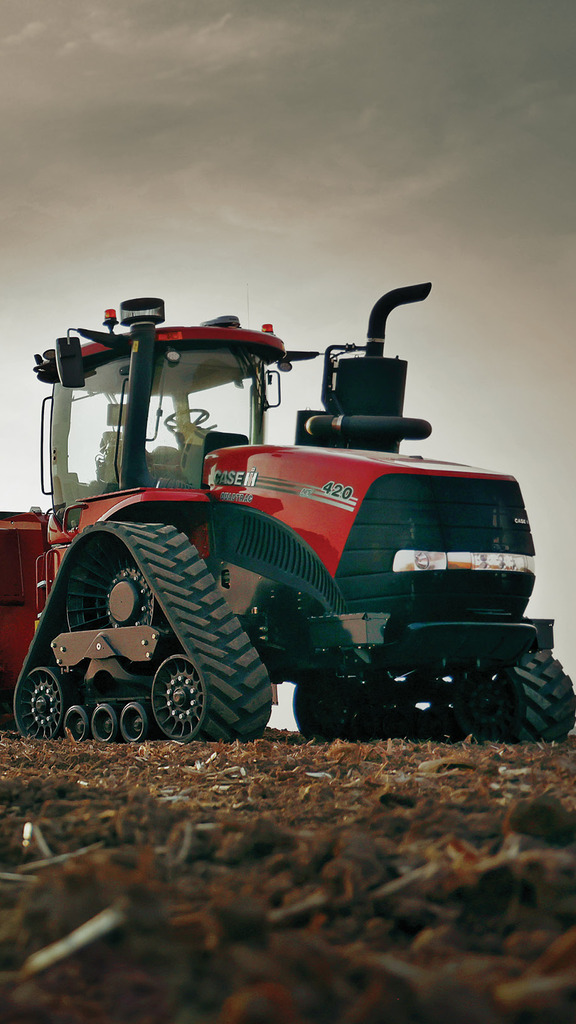

Quadtrac®

25 years of industry-leading track technology can be found in every Steiger Quadtrac® tractor, which features four individually driven, positive-drive oscillating tracks. Designed to maintain constant contact with the ground for a smooth ride, superior floatation and optimal traction. Plus, we’re still the leader in innovation and tech in four track design.

Available on the Steiger 475, 525, 555, 595, and 645 models.

Testimonial

Hear From Producers

See why producers are so excited about the Steiger® series tractors.

Brochures

Take a Deeper Dive Into the Steiger Series

Special Offers

Special Offers on Steiger Series

Tractors

6.25%

For 60 Months on Steiger® Series Tractors
Disclaimer
Available Until

June 30, 2024

producer with dealer in dealership lot

Parts & Service

Genuine Case IH Parts & Service

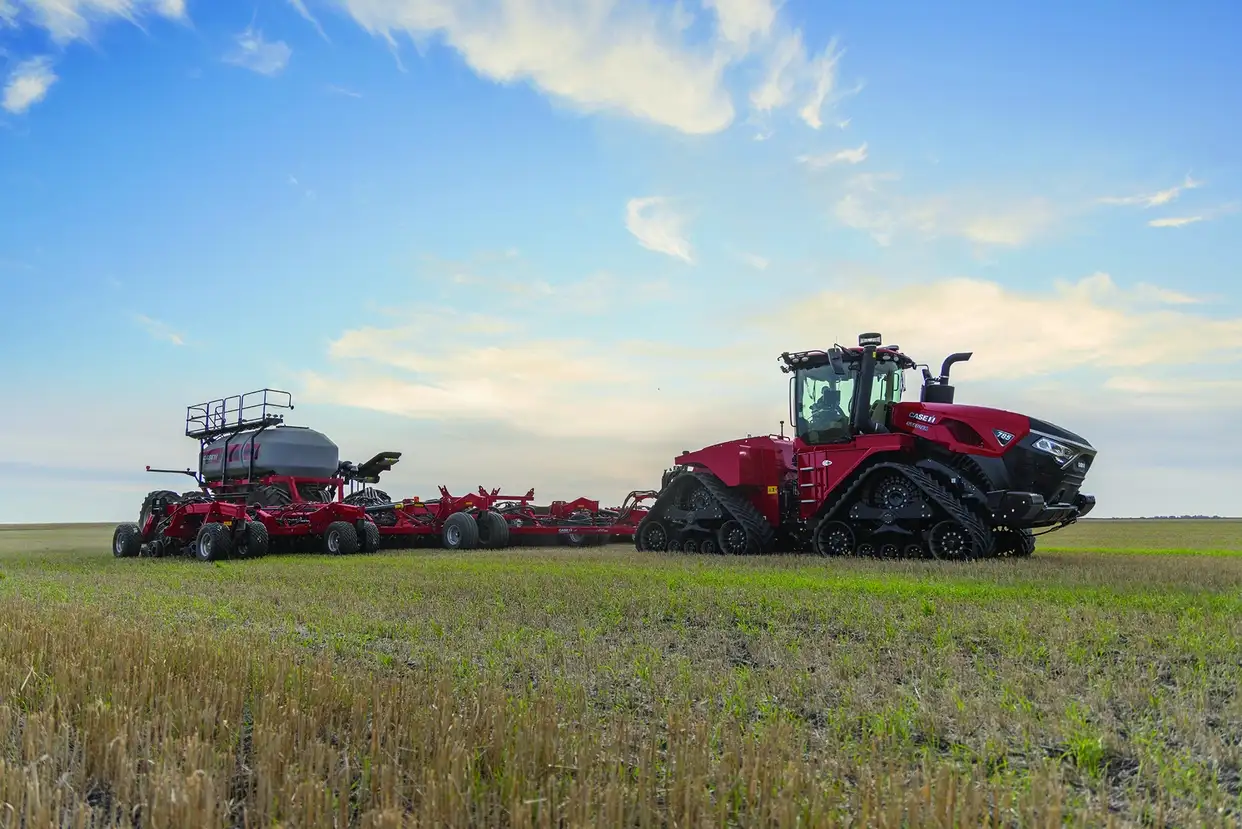

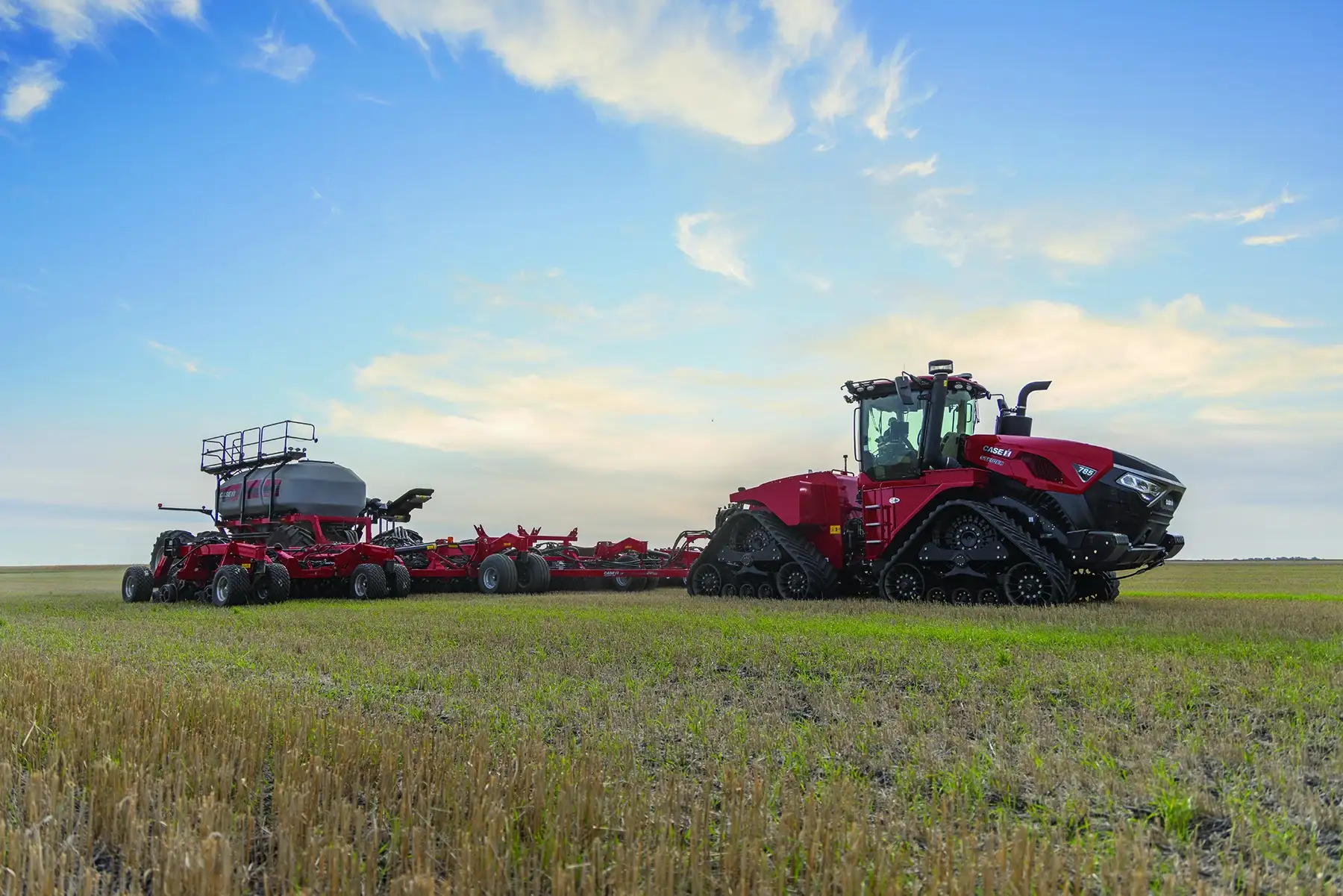

AFS Connect Steiger Tractor with Precision air cart
