Horsepower
180-260 HP
Transmission
PowerDrive or CVXDrive
FPT Engine
6.7 L
Hydraulic Capacity
Up to 44.9 GPM

AFS CONNECT PUMA FAMILY

Power. Performance. Prestige. Puma.

Puma^® series tractors are known for their performance on the road and in the field. Now, with a lineup of all-new models equipped with integrated AFS Connect technology, operators will be able to handle in-field challenges with even greater connectivity and ease. Not only that, but AFS Connect Puma series tractors come with comfort and performance enhancements to create an entirely new high-tech experience for growers who need ultimate flexibility. Best of all, these updates come without sacrificing the tried-and-true power and efficiency that make a Puma, a Puma.

Explore Features

AFS Connect Puma 260
Operator Environment
Transmission
Connectivity and Support
Exterior
Hydraulics

The All-New Puma 260

Power in a High-performance Package

The newest model to enter the Puma family, the 260 redefines the meaning of Puma power and prestige. With the largest horsepower of any Puma series tractor (260 hp, 302 peak) and best-in-class carrying capacity thanks to heavy-duty axles, the Puma 260 is built to tackle even the toughest in-field tasks.

Operator Environment

A Completely New Cab

We listened to our customers when designing a new cab to ensure the AFS Connect Puma series tractor offers the gold standard in cab comfort. The result is the quietest cab in the industry — without sacrificing efficiency.

Cab Improvements

New, larger cab features more head and leg room and more storage. A new hydraulic cab suspension on CVXDrive transmission models contributes to a smooth, always-steady ride — at 66 dBA, you'll experience the quietest cab in the industry. Finally, cab window visibility has been increased, and an upgraded front wiper option is available for greater in-field surveillance.
Storage

Several new storage areas keep you organized while in the cab. Multiple power outlets have been added throughout the cab interior to power additional monitors, radios and cell phones, while an optional AC power converter is available to charge computers and other devices. The passenger seat storage bin can be converted to a cool box to keep refreshments cool while out in the field.
MultiControl Armrest

Ergonomically designed to provide maximum comfort, the position of the updated MultiControl Armrest can be adjusted easily to match any operator. The MultiFunction Handle is ergonomically designed to increase operator productivity with configurable buttons to personalize your controls.
AFS Pro 1200

Featuring a 12-inch customizable touchscreen, the AFS Pro 1200 provides a single control point for your tractor and your implements alike. Interacting with the display is easy in any type of field situation, using intuitive swipe and pinch touchscreen controls or using the encoder on the armrest to adjust many settings without taking your hands off your controls.

Transmission

PowerDrive and CVXDrive

Two powerful transmission options. One reliable tractor. Choose the transmission that best fits your needs.

CVXDrive Continuously Variable Transmission
- Featuring updates to support higher horsepower and larger-diameter tires, the AFS Connect Puma series tractor incorporates a revamped CVXDrive™ transmission capable of handling even the toughest tasks — all while keeping the operator environment exceedingly quiet.
- 4 mechanical ranges with automatic range change for superior efficiency.
- Standard APM feature management system helps cut fuel consumption by coordinating engine speed and transmission ratio.
- Custom settings allow you to fine tune transmission performance according to your specific needs.
PowerDrive Powershift Transmission
- PowerDrive is a true powershift transmission with easy one-button shifting, without torque interruptions. Nine gears in field working range make it easy to find the right speed.
- APM automatically manages shifting and engine rpm to optimize field or road performance. Simply choose your speed, and the transmission does the rest.
- Available in an 18x6 version or a 19x6 eco version that provides roading speeds at lower rpm; 30 mph (50 kph) and creeper options are available.
- Robust, proven and reliable transmission providing longer life.

Connectivity and Support

Greater Connectivity. More Possibilities

New AFS Connect Puma models allow you to manage, track and share data with ease — giving you a bigger, better picture of overall farm performance for smarter and faster in-field decision-making.

Components
AccuGuide
AFS Connect

AFS Connect Pumas come equipped with the latest Case IH technology. This includes the AFS Pro 1200 display, the AFS Vision Pro Operating System, and an AFS Vector Pro Receiver.

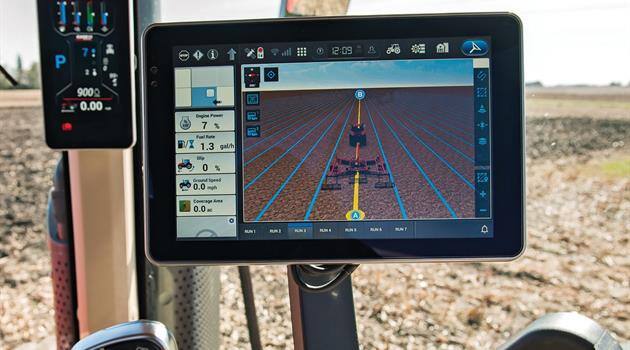

The new AFS Pro 1200 display features anti-glare coating for better visibility, easy Bluetooth® pairing to link a mobile device, and remote display viewing to connect operators with farm managers seamlessly.

The AFS Vision Pro operating system remains customizable, familiar and easy to use.

The AFS Vector Pro receiver streamlines guidance correction options, ranging from base (WAAS and AFS 1) to medium (AFS 2) to high (RTK and AFS RTK+) accuracy levels.

Using AFS AccuGuide technology, gain increased productivity and comfort while reducing yield-impacting skips and overlaps.

Choose between three levels of accuracy to match your specific needs.

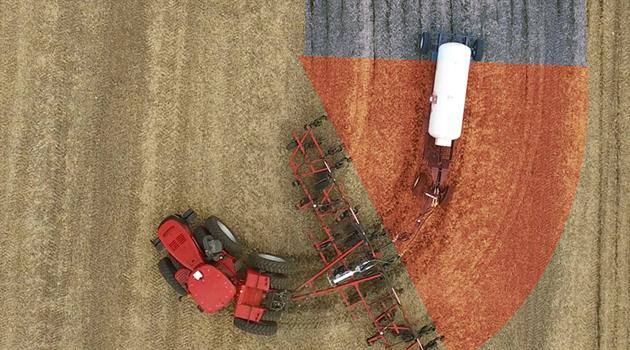

Optional AFS AccuTurn Pro technology automates headland turns, ensuring repeatable turns pass after pass.

Remote service and support allows an approved farm manager or dealer to identify maintenance and service needs with fewer visits to the operation.

AFS Connect helps you organize your farm, coordinate your fleet and improve your operation with greater precision and less paperwork.

Data sharing through AFS Connect allows trusted farm managers and advisors to make better informed, yield-boosting decisions.

Exterior

Light the Way

Lights
- More high-powered LED lighting on the cab and hood of all AFS Connect Puma tractors helps you light the way for safer driving conditions.
- Customizable road, work and hazard light options give you the control needed to get the job done.
Serviceability
- Larger fuel tank (124 gallons) makes for longer run times between fill ups.
- Fuel tank design offers two built-in toolboxes for quick access.
- Right-hand steps now incorporate an easy opening battery compartment.
- 750-hour engine oil service prioritizes efficiency.

Hydraulics and Hitches

High Performance Hydraulics and Hitches

Hydraulics
- A new configurable remote valve features lever-assisted ejection couplers for easy coupling and uncoupling of hoses under pressure.
- Up to 5 rear remotes and a 2 or 3 function mid-mount valve are available to control the loader or the front hitch.
- Available joystick control features configurable buttons and a forward reverse shuttle.
Hitches
- Multiple rear three-point hitch options are available with maximum lift capacity of 23,000 lb.
- Front hitch and PTO option is available for front mounted implements.
- Front-axle suspension travel can now be controlled within the AFS Pro 1200 display, allowing operators to extend the reach of hook ends for maximum performance.

Available Models

AFS Connect Puma 185
The AFS Connect™ Puma^® 185 features a 180-hp engine (at 2,200 ERPM) with an additional 45 hp power boost to get you through tough conditions or steep inclines.
AFS Connect Puma 200
The AFS Connect™ Puma^® 200 efficiently delivers 170 PTO horsepower (at 2,200 ERPM) to accomplish the toughest tasks on your operation.
AFS Connect Puma 220
The 220-hp engine (at 2,200 ERPM), coupled with the stability of the longer wheelbase, makes the AFS Connect™ Puma^® 220 a powerful solution for all your farming operations.

AFS Connect Puma 240
With a robust 240 hp (at 2,200 ERPM) and an engine with a 6.7-L CVXDrive™ transmission, the AFS Connect™ Puma^® 240 has enough power to get the job done, no matter the conditions.
AFS Connect Puma 260
The all-new AFS Connect™ Puma^® 260 offers a top-of-the-line 260 hp (at 2,200 ERPM) — with a maximum boosted peak of 300 hp (at 1,800 ERPM) — to deliver the ultimate performance for row crop operations as well as everyday tasks.
